R7850A Smart Optical BGA Rework Station

PCB Size : 635*520mm(Max)
BGA Chip Size: 80*80mm(Max)
IR Heater Size : 565*435mm
Temperature Sensor: 5 Pcs

BASIC INFO

R7850A Smart Optical BGA Rework Station

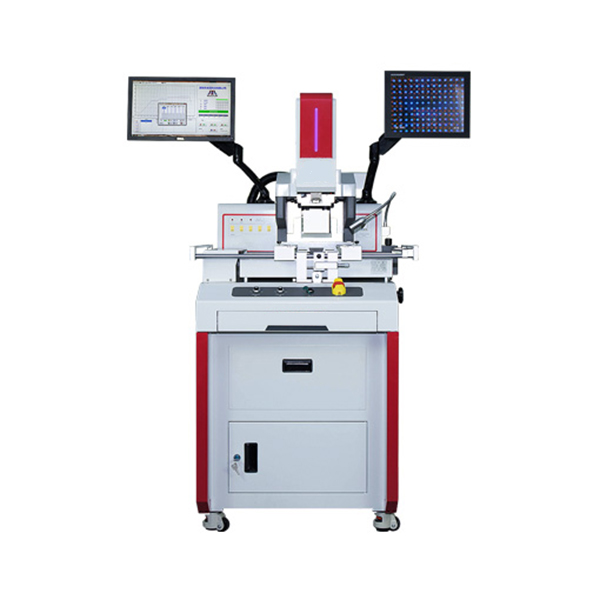

R7850A PCB smart optical BGA soldering station machine is an optical alignment automatic rework equipment. This BGA Soldering Machine has multi-functional control features, convenient temperature setting and storage, bottom heating system, smoke purification system, high-definition optical alignment module.

1.Multifunctional Control Features

Industrial PC control, can set a variety of operating modes, real-time display of temperature curve, each curve can be set to more than 12 segments, it can automatically analyze the curve, and automatically save the temperature curve to generate a large number of log files to facilitate the recall of historical parameters for traceability.

2.Convenient Temperature Setting and Saving

Three temperature zones independently controlled by programming, convenient and quick setting of temperature parameters and temperature saving records, the top zone uses ceramic heaters, built-in vacuum tube is used for chip adsorption, electric control 360 degree rotation alignment, with pressure protection device, dual over-temperature protection and alarm function, software design has encryption and foolproof functions.

3.Bottom Heating System

The medium-wave ceramic infrared heating plate imported from Germany is adopted, and the bottom temperature zone can be independently heated to adjust the distance from the PCB like a infrared BGA rework station. Fast temperature rise and high temperature control accuracy can effectively solve PCBA preheating and rework temprature.

4.Smoke Purification System

The built-in three-level smoke purification system can filter and purify the toxic gas generated in the work, effectively protecting the environment.

5.HD Optical Alignment Module

Imported HD CCD (2m pixels) optical alignment system, through the PC control system X/Y automatically moves the optical lens alignment, using 15' HD industrial display (1080P 16: 9) and 18.5' SD display operation. Equipped with automatic feeding device to realize feeding and receiving automatically.

Specification

Power Supply	AC380V±10% 50/60HZ
Power	9.85KW(Max)，Top heater(1.45KW) Bottom heater (1.2KW)，IR Preheater (6.6KW), Other(0.6KW)
PCB Size	635520mm(Max);66mm(Min)
BGA Chip Size	8080mm(Max);22mm(Min)
IR Heater Size	565*435mm
Motion Control	X/Y/Z
Temperature Sensor	5 Pcs
Control System	Industrial PC+ Motion control system
Display System	15" HD industrial display ( 1080P 16:9)+18.5" SD display
Alignment System	2 Million Pixel HD digital imaging system, automatic optical zoom with laser red-dot indicator
Vacuum Adsorption	Automatic
Alignment Accuracy	±0.01mm
Temperature Control	K-type thermocouple closed-loop control with accuracy up to ±1℃
Feeding Device	Yes
Positioning	V-groove with universal fixture (shaped fixture can be customized)
Dimensions	L835W960H1640mm
Weight	218.5KG
