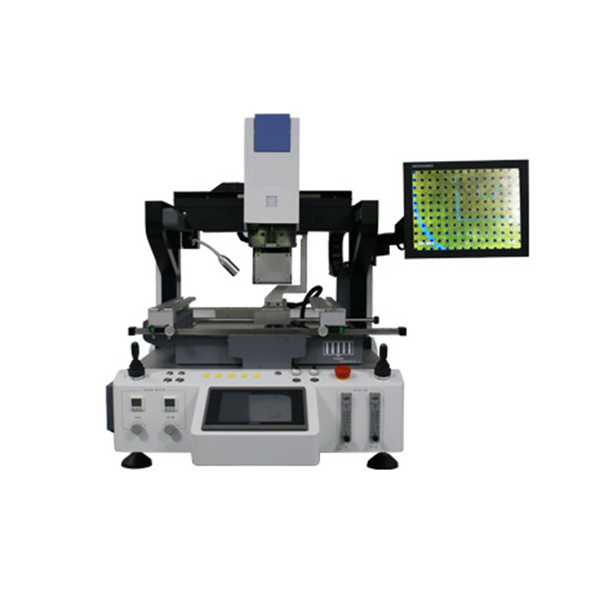

R7830A Smart Optical BGA Rework Station
R7830A is an optical alignment automatic rework equipment. It also works as laser BGA SMD rework station, multi-language menu interface, automatic feeding device, X/Y AXI machine that can be controlled by joystick, fast and convenient operation, imported high-definition CCD (2 million pixels) optical alignment system, high Precision temperature control sensor system, precise temperature control.
1.X/Y/Z Axis Automatic Displacement
The top temperature zone of the Laser SMD Rework Station is controlled by the joystick control servo system, which can automatically move and align at fast/slow speed by X/Y/Z Axis.
2.Vacuum Adsorption and Nitrogen Protection
The top heating head has a built-in vacuum suction nozzle for chip adsorption, electrically controlled 360-degree rotation alignment, with negative pressure monitoring and pressure protection device. The bottom temperature zone of the Laser SMD Rework Station adopts a large-area heating wire layout, moves symmetrically with the top temperature zone, and can be connected with nitrogen to prevent PCBA from yellowing.
Specification
|
Power Supply |
AC380V±10% 50/60HZ |
|
Power |
7.15KW(Max), Top heater(1.45KW) Bottom heater (1.2KW), IR Preheater (4KW), Other(0.5KW) |
|
PCB Size |
565*467mm(Max); 6*6mm(Min) |
|
BGA Chip Size |
80*80mm(Max); 2*2mm(Min) |
|
IR Heater Size |
500*380mm |
|
Motion Control |
X/Y/Z |
|
Temperature Sensor |
5 Pcs |
|
Operation Method |
8" HD touch panel |
|
Control System |
Panasonic PLC + Temperature control module |
|
Display System |
15" HD industrial display ( 1080P 16:9) |
|
Alignment System |
2 Million Pixel HD digital imaging system, automatic optical zoom with laser red-dot indicator |
|
Vacuum Adsorption |
Automatic |
|
Alignment Accuracy |
±0.01mm |
|
Temperature Control |
K-type thermocouple closed-loop control with accuracy up to ±1℃ |
|
Feeding Device |
Yes |
|
Positioning |
V-groove with universal fixture |
|
Dimensions |
L810*W1100*H960mm |
|
Weight |
151KG |
