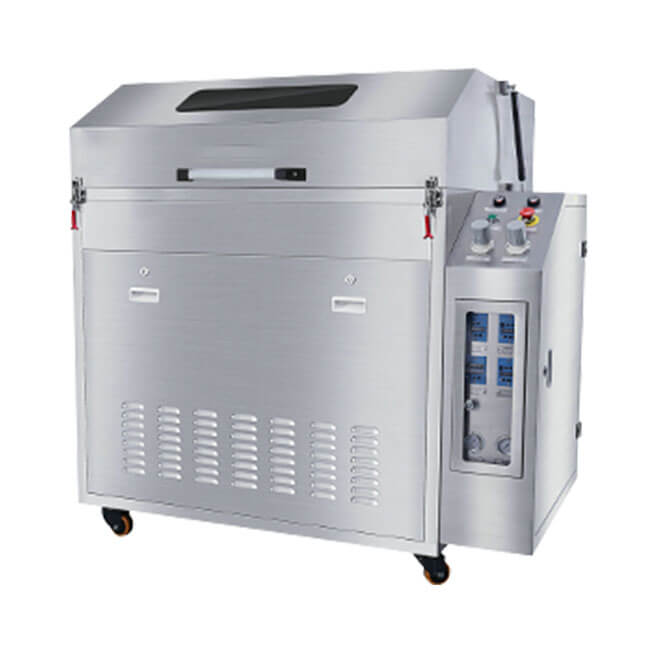

Pneumatic fixture cleaning machine QT-5100
QT-5100 Pneumatic fixture cleaning machine, both solvent and water-based cleaning fluid; mainly used for regular cleaning of reflow soldering fixtures/trays in the SMT industry; can also be used for lead-free reflow soldering furnace condenser, filter flux cleaning . The machine adopts pneumatic control, which is easy to operate and safe to use.
Pneumatic fixture cleaning machine QT-5100
1. Fully pneumatic control, no electricity at all, ensuring absolute safety in the cleaning process, without any worries.
2. All stainless steel body, acid and alkali resistance, durable, beautiful appearance.
3. One-button simple operation, the whole process of high-pressure cleaning + high-pressure rinsing + compressed air drying is automatically completed.
4. Closed cleaning and rinsing, the cleaning solution and rinsing solution are circulated and filtered in the machine to reduce the cost of use.
5. It can be cleaned with water-based cleaning fluid or solvent.
6. The standard equipment is equipped with the function of automatically adding and discharging rinse solution.
7. Internal lock safety design, when the door is opened, the machine stops working immediately.
8. Imported rotary motor ensures smooth cleaning operation.
Parameter
|
Project |
QT-5100 |
|
Wash Basket Size |
D1000x H 200(mm) |
|
Sprinkler System |
Top, bottom, front, all-round rotating spray cleaning, rinsing |
|
3-Stage Filtration System |
1mm filter / 50um filter / 20um filter |
|
cleaning time |
5~15min |
|
rinse time |
1~2min |
|
drying time |
5~10min |
|
Washing fluid tank capacity |
80L |
|
Rinse tank capacity |
80L |
|
Injection pressure |
2~4kg/cm2 |
|
filtering system |
2mm/100um/20um |
|
Gas source |
0.5~0.7Mpa, 800~1000L/min |
|
Machine size |
L1450 x W1550 x H1400(mm) |
|
machine weight |
480KG |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
