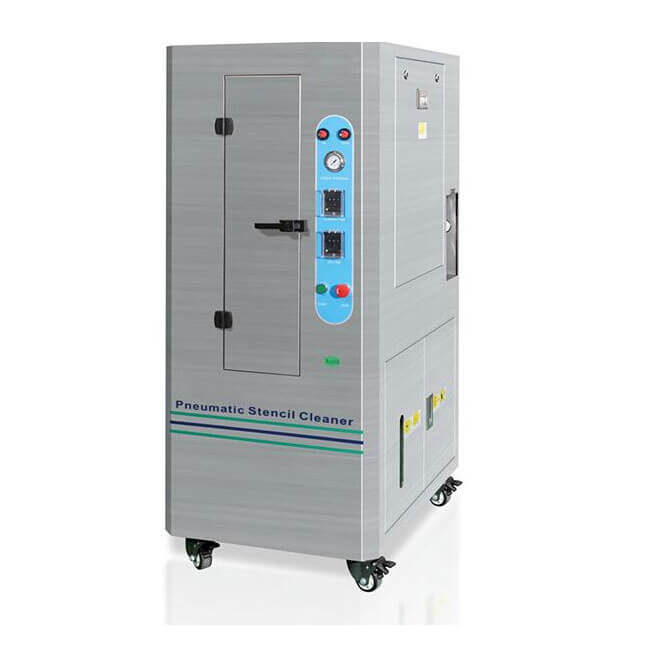

Pneumatic Stencil Clearning Machine QT-750

Applicable stencil size: L750*W750*H400（mm）（Large size needs to be customized）
Cleaning liquid capacity: 40L（MAX）
Optimal liquid usage: 35L
External air source:0.45mpa~0.7mpa

BASIC INFO

Pneumatic Stencil Clearning Machine QT-750

Objects to be cleaned:

SMT / SOP, rubber printing template, SMT scraper, large PCBA

Machine characteristics:

◆ Completely use compressed air as energy source, no electricity, no fire danger

◆ Closed-loop cleaning: there will be no leakage of gas and liquid; it is helpful to improve the working environment

◆ High-precision 3-level filtration system: effectively extend the life of cleaning agent recycling

◆ Specially used for cleaning SM T stencil, P C B misprints and printing machine blades, etc.

◆ The equipment adopts precision filtering system

◆ Cleaning + air-drying process to ensure cleanliness

◆ The liquid pressure can be displayed through the hydraulic gauge on the operation panel

◆ Independent air exhaust device design makes liquid consumption lower

◆ The whole body is made of 304 stainless steel, which is sturdy and durable, resistant to acid and alkali.

◆ One-button operation, easy operation, easy to clean and air dry

◆ Integral stainless steel structure, processed by wire drawing process; beautiful and durable, more convenient maintenance

◆ All pneumatic parts of the equipment are imported original accessories; for example: pneumatic diaphragm pump, pneumatic timer, air source indicator, pressure regulator, etc .; make the equipment durable and quality guaranteed

Equipment parameter：

Applicable stencil size	L750W750H400（mm）（Large size needs to be customized）
Cleaning liquid capacity	40L（MAX）
Optimal liquid usage	35L
Cleaning method	360 ° rotating cleaning liquid spray and high pressure air spray (washing → drying)
Cleaning time	2 ~ 5 minutes (conventional process)
Drying time	2 ~ 5 minutes (conventional process)
External air source	0.45mpa~0.7mpa
Tin slag filtration method	Three-stage filtering
Level 1 filtering	10um（Filter impurities and labels）
Level 2 filtering	5um（Filter small particles and solder paste）
Level 3 filtering	1um（Filters small particles and rosin）
Exhaust port size	φ120*40H（mm）
Net weight of machine	200kg
Machine size	L945W6501650（mm）
