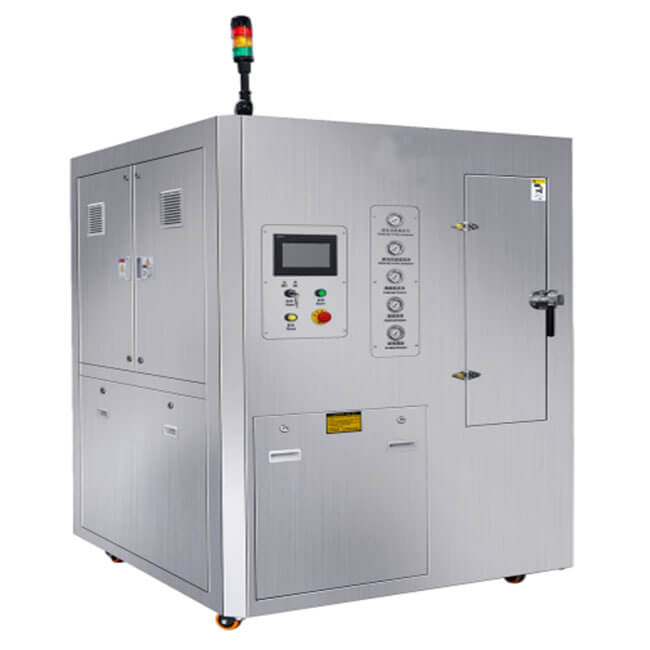

Electric Stencil Cleaning Machine QT-800
QT-800 is a water-based electric stencil cleaning machine for automatic cleaning of SMT solder paste stencil, red glue stencil, copper mesh, resin mesh; misprinted PCB; PCBA. Using a unique structure of 4 spray bars and 4 air knives, it can automatically complete the process of cleaning, rinsing, drying and other processes in one machine. When cleaning, the spray bar, air knife, etc. are fixed, and the stencil moves back and forth; to ensure the stability and reliability of the equipment and the high precision and high quality of the stencil cleaning.
Machine Description：
It is a high quality aqueous detergent stencil cleaning machine which used to clean solder paste stencil, red glue stencil, red glue cooper stencil, mis-print PCB, large size PCBA.
The total process--aqueous detergent clean, water rinse, hot air dry are complete just in one wash chamber. The Unique 4 fixed cleaning spray rods, 4fixed air knives and stencil move back and forth design makes the machine stable, reliable and super cleaning result.
Machine Features：
1.Suitable to clean SMT stencil ,cooper mask, resin mask, misprint PCB and large size PCBA
2.The unique 4 spray rods and 4 air knives fixed and stencil moves clean mechanism, more stable. quick and efficient to clean remaining solder paste ,red glue and flux on SMT stencil ,cooper mask, resin mask, misprint PCB and PCBA.
3.The unique real-time aqueous detergent filtering system is right for precise stencil cleaning.
4.State of the process is visible through a large observation window.
5.Real-time measure DI water resistivity and monitoring cleaning effect.
6.The remaining detergent in the pump and pipes are blown off by compressed air and flow back to cleaning tank. This function saves detergent up to 50%.
7.Can used as PCBA cleaning machine to clean PCBA up to 800mmx800mm
8.English color touch Panel operational interface, PLC procedure control, cleaner temperature, clean time , rinse time and rinse times ,clean temperature, hot air dry time and temperature, resistivity can be set and monitored as required.
Machine Spec：
Item
QT-800 Spec
Max Stencil Size
L800 x W800 x H40(mm)
Liquid tank
60x2pcs
Clean time
2~5min
Wash time
1~3min，
Dry time
3~5min
Rinse times
1~99time
Clean detergent
Aqueous detergent
Rinse water
DI water（water）open-loop or close-loop
Dry method
High pressure hot air dry
Detergent heat temp
0~60℃
Hot air dry temp
0~90℃
Clean heat power
9KW
Rinse heat power
9KW
Hot air heat power
6KW
Clean/rinse filter
0.45um
Resistivity range
0~18MΩ
Power
AC380V,50/60HZ,28KW
Machine size
L1300xW1400xH1950（mm）
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
