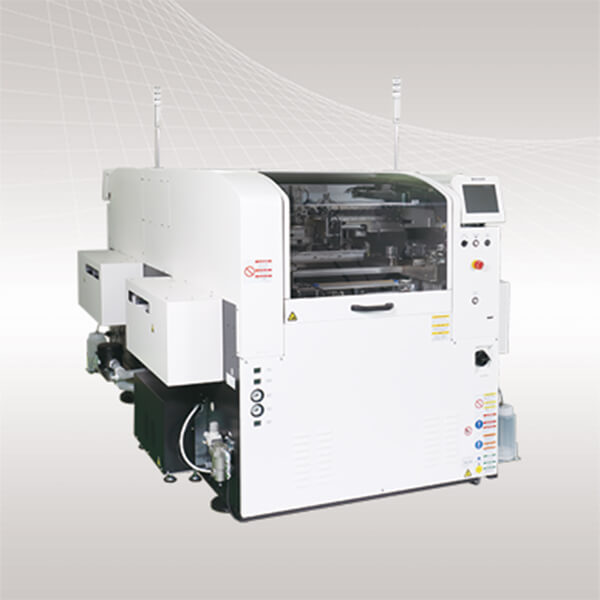

Panasonic SPV-DC Solder paste printer
Enables high-efficiency dual lane production in a compact size, providing optimum functions for your production style.
- High-efficiency dual lane production
- Running cost is reduced by paperless cleaning
- Achieves improved overall quality with PFSC integrated line solutions using our proprietary mounters
Features and Benefits of “Screen Printer SPV-DC”
Improved productivity
- High-speed printing
Inherits the SPV configuration and achieves high-speed printing by moving the mask cleaning unit in a unique manner
- High-speed production
High productivity is achieved without compromising print quality by using a 2-stage printing table at front and rear.
- Non-stop changeover
Independent front/rear operation significantly reduces model changeover time.
Improved print quality

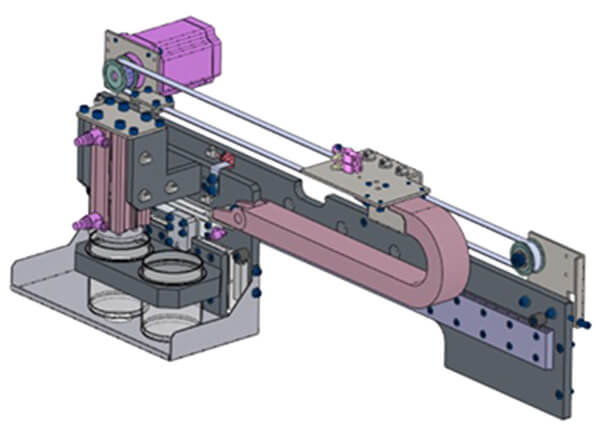

- Perforated pot type automatic solder supply
Supports approximately 4 hours of continuous operation by setting 2 perforated solder pots
As solder supply nozzle is not used, cleaning and other maintenance is not required
- Snap-off with vacuum-held mask
Performing screen printing and snap-off with vacuum-held mask, ensures more stable print quality during fine pitch printing
Effective when mask tension deteriorates over time or mask frame is distorted
Perforated pot type automatic solder supply (option)
Featured Specs
|
SKU |
NM-EJP9A |
|
Model ID |
SPV-DC |
|
Model No. |
NM-EJP9A |
|
PCB Dimensions (mm) * |
L 50 x W 50 to L 350 x W 300 |
|
[*1] |
|
|
PCB Exchange Time * |
13.0s (6.5s/PCB) Including transfer, positioning, recognition, each-time cleaning. |
|
Printing & cleaning conditions: Our recommended conditions (PCB dimensions L 250 x W 165) |
|
|
[*2] |
|
|
Repeatability |
2 Cpk ± 5.0 μm 6 σ The repeatability of same PCB |
|
Equal to ± 5.0 μm ± 3 σ (or ±2.5 μm ±1.5 σ) |
|
|
Screen Frame Dimensions (mm) * |
L 736 x W 736, L 650 x W 550, L 550 x W 650, L 750 x W 750, L 584 x W 584 |
|
[*3} |
|
|
Electric Source * |
1-phase AC 200, 220, 230, 240 V ±10V Max. 4.0 kVA |
|
[*4] |
|
|
Pneumatic Source * |
0.5 MPa, 560 L / min (A.N.R.) |
|
[*5] |
|
|
Dimensions (mm) * |
W 1,650 x D 2,446 x H 1,500 (maximum protrusion D 2,528) |
|
[*6] |
|
|
Mass * |
2,650 kg |
|
[*7] |
1. When using paperless cleaning, dimensions are L50 x W50 – L350 x W250
2. PCB exchange time varies depending on the machine in the pre-process and the post process, the PCB size, the use of a PCB pressing-down unit and so forth.
3. For mask specifications, please see the specification.
4. Including blower and vacuum pump "Option"
5. When using the mask suction function
6. Except for the signal tower and the touch panel.
7. With full options
