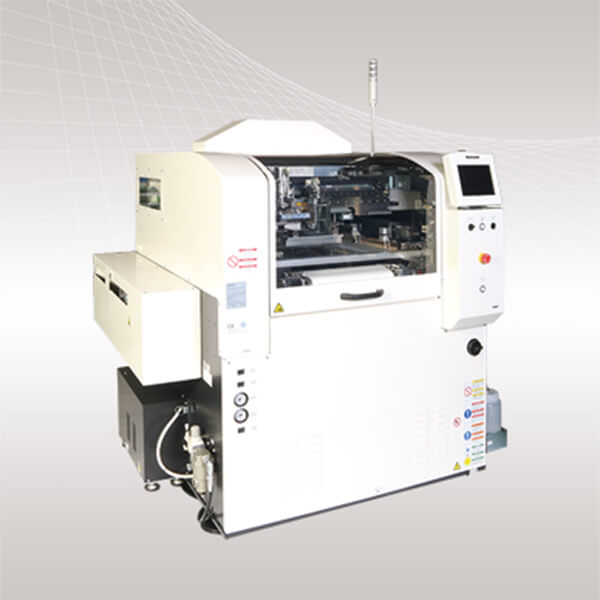

Panasonic Solder paste printer SPV

PCB Dimensions (mm) : L 50 x W 50 to L 350 x W 300
PCB Exchange Time: 13.0s (6.5s/PCB)
Repeatability: 2 Cpk ± 5.0 μm 6 σ
Screen Frame Dimensions (mm) : L 736 x W 736, L 650 x W 550, L 550 x W 650, L 750 x W 750, L 584 x W 584

BASIC INFO

Panasonic Solder paste printer SPV

SPV with built-in PCB discrimination function realizes ultra-high speed tact time. We also offer other solutions, such as printing PCBs for front and back substrates, that matches the production type of each customer.

- Total printing cycle time process including transfer, recognition, each-time cleaning is 10 seconds

- The printing process matching your production style is realized by PCB discrimination function

- Continuous stable printing method with low-cost materials

- Supports different layouts of customers

Transformation function

- Improvement of printing quality and labor-saving functions

- Achieves improved overall quality with PFSC integrated line solutions using our proprietary mounters

Features and Benefits of “Screen Printer SPV”

Features of SPV

- Built-in PCB sorting function

- Ultra high-speed: 10 sec (printing + transport + cleaning)

- Transformation function

- 2 in 1 printing function

Continuous stable printing method with low-cost materials

- High speed printing with high filling power by double squeegee

- New head for high-speed cleaning ensures cleaning every time & stable quality

- Mask pickup and snap off function to reduce mask tension loosening

- Increase number of cylinders and enforce mask distortion

New functions to improve printing quality and labor-saving

- Reduction of labor for solder replacement by automatic solder supply unit

- Realization of stable quality using solder and mask inspection functions and hybrid type PCB pickup function

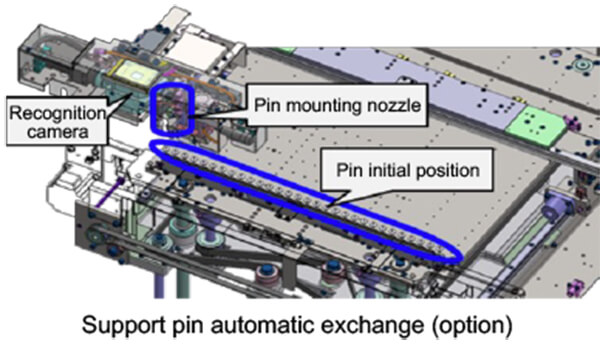

- Changeover is significantly improved by using automatic mask replacement and automatic lower catch replacement mechanism, contributing to labor-saving

Featured Specs

SKU	NM-EJP7A
Model ID	SPV-DC
Model No.	NM-EJP9A
PCB Dimensions (mm) *	L 50 x W 50 to L 350 x W 300
PCB Dimensions (mm) *	[*1]
PCB Exchange Time *	13.0s (6.5s/PCB) Including transfer, positioning, recognition, each-time cleaning.
	Printing & cleaning conditions: Our recommended conditions (PCB dimensions L 250 x W 165)
	[*2]
Repeatability	2 Cpk ± 5.0 μm 6 σ The repeatability of same PCB
Repeatability	Equal to ± 5.0 μm ± 3 σ (or ±2.5 μm ±1.5 σ)
Screen Frame Dimensions (mm) *	L 736 x W 736, L 650 x W 550, L 550 x W 650, L 750 x W 750, L 584 x W 584
Screen Frame Dimensions (mm) *	[*3}
Electric Source *	1-phase AC 200, 220, 230, 240 V ±10V Max. 4.0 kVA
Electric Source *	[*4]
Pneumatic Source *	0.5 MPa, 560 L / min (A.N.R.)
Pneumatic Source *	[*5]
Dimensions (mm) *	W 1,650 x D 2,446 x H 1,500 (maximum protrusion D 2,528)
Dimensions (mm) *	[*6]
Mass *	2,650 kg
Mass *	[*7]

1. PCB exchange time varies depending on the machine in the pre-process and the post process, the PCB size, the use of a PCB pressing-down unit and so forth

2. For mask specifications, please see the specification

3. Including blower and vacuum pump "Option"

4. When using the mask suction function

5. Except for the signal tower and the touch panel

6. With full options
