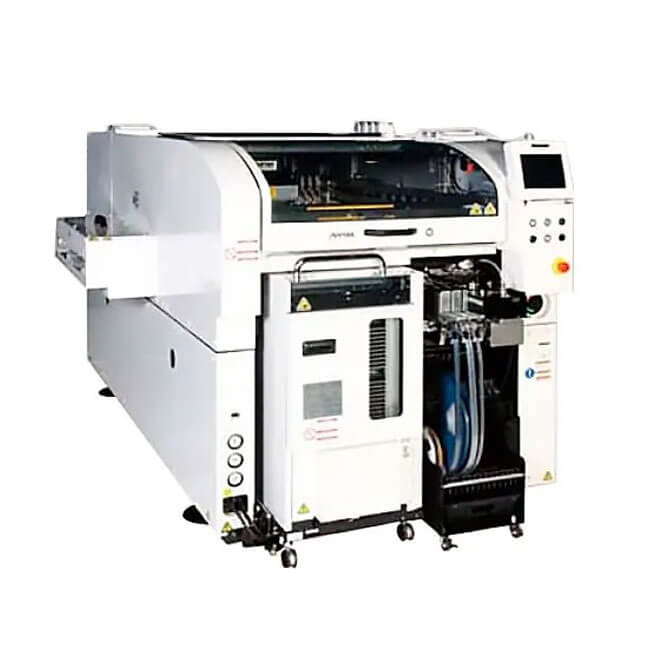

Panasonic NPM-TT Pick and place machine

NPM-TT twin tray assembly platform

1.Introducing the latest NPM platform for expanding and evolving electronics assembly requirements, the NPM-TT (Next Production Modular-Twin Tray) takes its place alongside Panasonic`s other award-winning models.

2.The electronics assembly machine processes boards up to 510 x 590 mm, thus expanding the SMT process to accommodate more tray-supplied parts in full independently-run-lane mode. Its dual lane functionality enables one or two products or two different products to be assembled at the same time. The optimal solution for both high-mix/ low-volume and low-mix/high-volume manufacturing.

3.While the machine is operating, the trays can also be used offline to enable the subsequent product to be set up. This saves on changeover time and optimises efficiency.

4.As well as accommodating tape and tray on both sides, the NPM-TT also combines in-line PoP to a NPM-D line and shares common feeders across the complete NPM platform.

Features & Benefits

Basic Specification

Selectable specifications for the supply unit
Placement head (8- &3-nozzle head)
Alternate/independent placement support
Capable to directly link with NPM-D
APC system is supported (Option)

Productivity
High productivity through fully independent placement
Support Pin Automatic Change (option)

Versatility

Large Components

Transfer Unit (option)

Feeder location free

Model ID	NPM-TT
PCBdimensions(mm)	Single-lane mode	L 50 x W50 ~ L 510 x W 590
	Dual-lane mode	L 50 x W50 mm ~ L 510 x W 300 mm
PCBexchange	Single-lane mode	4.0 s (With no component mounted on the reverse side of PCB)
time
	Dual-lane mode	0 s *No 0s when cycle time is 4.0 s or less
Electric source		3-phase AC 200, 220, 380, 400, 420, 480 V 2.5 kVA
Pneumatic source *1		Min.0.5 MPa, 200 L /min (A.N.R.)
Dimensions *1 (mm)		W 1 300*2 x D 2 798*3 x H 1 444*4
Mass		2 650 kg
		(Only for main body:This differs depending on the option configuration.)
Placement head		8-nozzle head	3-nozzle head *5
		( With Dual Heads )	( With Dual Heads )
Placement speed		36 000cph (0.1s/chip)	14 400 cph (0.25 s/chip)
			11 000 cph (0.33 s/QFP)
Placement accuracy(Cpk 1)		± 40 µm/chip	± 30 µm/QFP
		± 30 µm/QFP
		12mm to
		32mm
		± 50 µm/QFP
		12mm Under
Component dimensions(mm)		(01005") 0402 chip*6 to L 32 x W 32 x T 12	(0201") 0603 chip to L 150 x W 25 (diagonal152) x T 28
Component supply	Taping	Tape : 8 to 56 / 72 mm	Tape : 8 to 56 / 72 / 88 / 104 mm
		Specifications for front/rear tray feeders : Max.52
		Specifications for front/rear feeder carts : Max.120
		( 8 mm tape : double feeder, (small real) )
	Stick	Specifications for front/rear tray feeders : Max.6
		Specifications for front/rear feeder carts : Max.14
	Tray	Max.40 sheets (Front supply unit : Max. 20 sheets + Rear supply unit : Max. 20 sheets)
