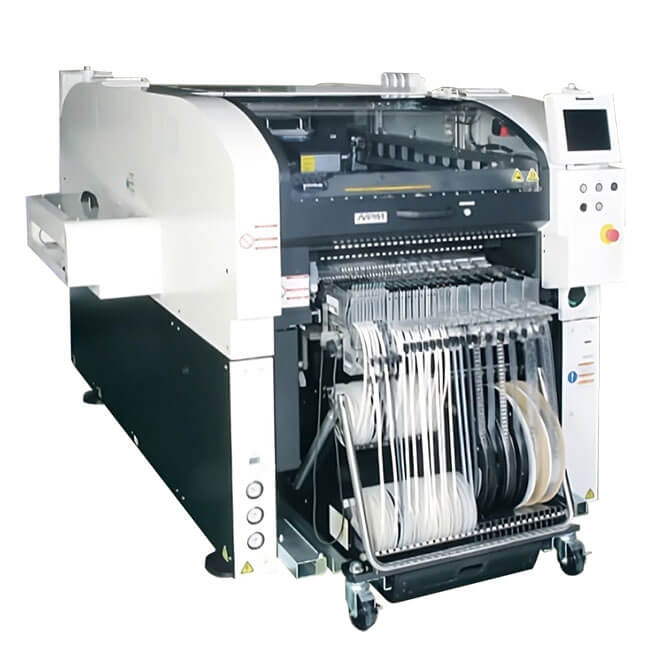

Panasonic NPM-W2S Pick and place machine

Max PCB: L 750 x W 550mm
Placing Speed: 75000CPH
Max Feeder: 120 reels
Weight: 2390 kg

BASIC INFO

Panasonic NPM-W2S Pick and place machine

The highly flexible single-beam NPM-W2S is an ideal placement solution for manufacturers who value reduced setup and changeover time over volume... At a time when your lot sizes are getting smaller, customers need to tighten control of work in process, schedule more efficiently and expand feeder capacity. This need is the premise behind the NPM-W2S. The NPM-W2S is based on the NPM-W2 platform, but with the simplification of employing a single beam to access all 120 8mm inputs for increased flexibility, with an output of 38,500 CPH and accuracy of 30um.

The NPM-W2S enables customer to afford more platforms per line to increase available feeder capacity for common setups and reduced changeover. The NPM-W2S also makes an affordable line booster at the beginning or end of an existing NPM line.

Model ID	NPM-W2S
Model No.	NM-EJM5E
PCB Dimensions (mm) *	Single-lane
	Batch mounting: L 50 x W 50 ~ L 750 x W 550
	2-position mounting: L 50 x W 50 ~ L 350 x W 550
	[*1]
PCB Dimensions (mm) *	Dual-lane
	Dual transfer (Batch): L 50 × W 50 ~ L 750 × W 260
	Dual transfer (2-position): L 50 × W 50 ~ L 350 × W 260
	Single transfer (Batch): L 50 × W 50 ~ L 750 × W 510
	Single transfer (2-position): L 50 × W 50 ~ L 350 × W 510
	[*1]
Electric Source	3-phase AC 200, 220, 380, 400, 420, 480 V 2.8 kVA
Pneumatic Source *	0.5 MPa, 200 L /min (A.N.R.)
Pneumatic Source *	[*2]
Dimensions (mm) *	W 1,280 [3] × D 2,332 [4] × H 1,444 [*5]
Dimensions (mm) *	[*2]
Mass	2,470 kg (Only for main body : This differs depending on the option configuration)
