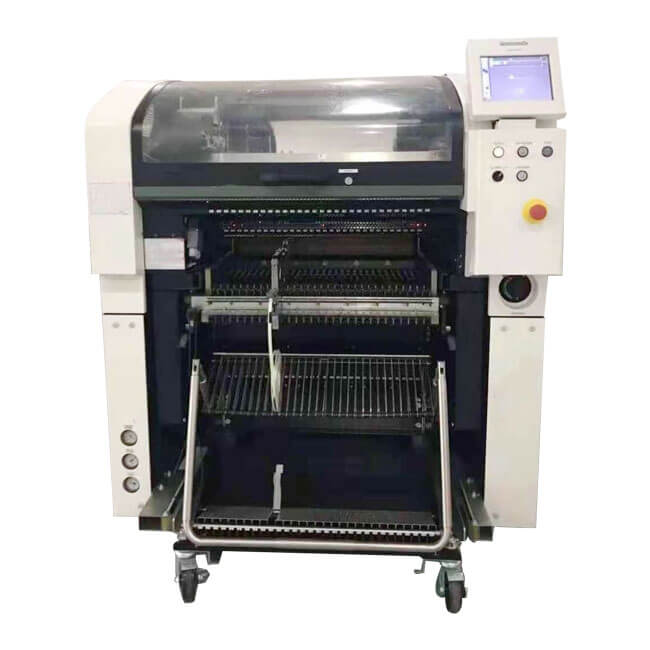

Panasonic NPM-D2 Pick and place machine
"Panasonic chip mounter NPM-D2, Panasonic high-speed module mounter Panasonic NPM-D2" product features:
1.Achieving high unit area productivity through integrated packaging production lines (printing & mounting & inspection)
Customers are free to choose the production line
Through the system software to achieve the overall management of the production line workshop
2, high function & high reliability
Inherits the characteristic DNA of Panasonic's installation: ** Compatible with CMSeries hardware
It has the corresponding capabilities of 0402-100 * 90mm components. With the functions of component thickness inspection substrate bending inspection, it can greatly improve the placement quality, fully meet customer needs for difficult processes such as POP flexible substrates.
3.Simple operation
Humanized interface design, machine switching instructions can greatly reduce the exchange operation time of the material rack trolley
PCB Dimensions (mm)*(Single-lane):Batch mounting: L50xW50~L750xW550/2-position mounting: L50xW50~L350xW550[*1]
PCB Dimensions (mm)*(Dual-lane):Dual transfer (Batch): L50×W50~L750×W260/Dual transfer (2-position): L50×W50~L350×W260
PCB Dimensions (mm)*(Dual-lane):Single transfer (Batch): L50×W50~L750×W510/Single transfer (2-position): L50×W50~L350×W510[*1]
Electric Source:3-phase AC 200, 220, 380, 400, 420, 480 V 2.8 kVA
Pneumatic Source *:0.5 MPa, 200 L /min (A.N.R.)[*2]
Dimensions (mm) *:W 1,280 [*3] × D 2,332 [*4] × H 1 444 [*5][*2]
Mass:2,470 kg (Only for main body : This differs depending on the option configuration)
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
