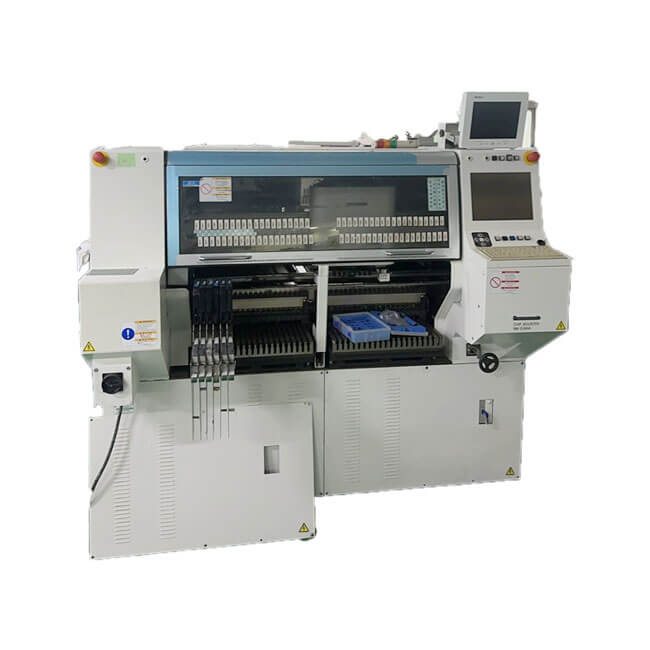

Panasonic BM123 Pick and place machine

speed: 0.12s / chip
accuracy: ± 0.05
Element size :0402 * 7 Chip 32 × 32 × 15
Component Range: 0603 Chip - L32 x W32 x T15

BASIC INFO

Panasonic BM123 Pick and place machine

PANASONIC BM123 is a high performance PC board assembly and manufacturing equipment designed for the high speed automated production of printed circuit board assemblies. The system has been developed for high-volume, high-mix production of medium-to-large sized PC boards with a wide variety of component types. The unit can handle up to 400 components for the simultaneous assembly of complex and fine-pitch components onto printed circuit boards. BM123 is made up of several key components including a feeder unit, an indexing machine, an intelligent vision tool, a laser measuring asset and an intelligent table controller. The feeder unit can feed both

Substrate size (mm) 510 * 460mm

Mounting speed: 0.12s / chip

Placement accuracy ± 0.05

Number of component loading 80 (double tape feeder: 160)

Element size 0402 * 7 Chip 32 × 32 × 15

Substrate replacement time * 2 2.5 s * 6, 5.0 s

Power supply Three-phase AC 200, 220, 380, 400, 420, 480 V 2.68 kVA

Air pressure source 0.43 MPa, 150 L / min (A.N.R.)

Equipment size 1950 × 1500 * 3 × H 1 500 * 4

Weight 1700kg

SMT Pick and place machine Brand
