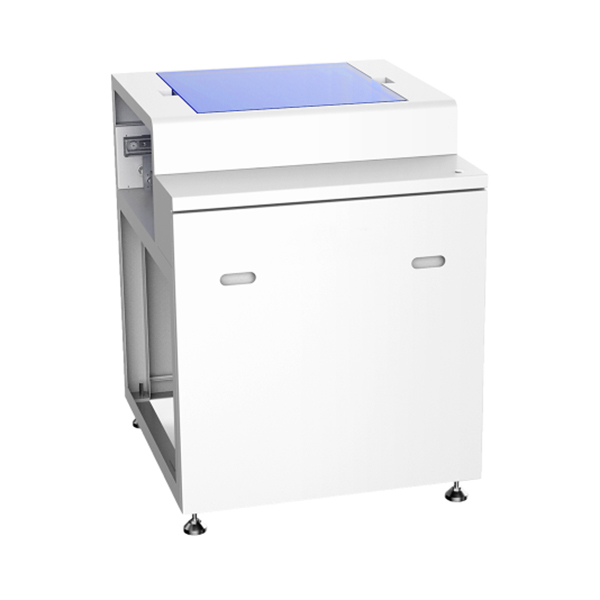

PCB UV Fluorescing Manual Inspection Conveyor
The PCB UV Fluorescing Manual Inspection Conveyor is an inspection station that allows manual/visual inspection of conformal coatings when applied to printed circuit board (PCB) assemblies using fluorescing ultraviolet UV lighting. This UV inspection station is equipped with a robust pin chain style conveyor that holds up to messy solvents and chemicals used in conformal coating, and easily transports heavy pallets/carriers for complex printed circuit board assembly applications.
Automate and/or customize your PCB assembly line with board buffer conveyors, PCB magazine loaders/unloaders, UV fluorescing inspection conveyors, turn conveyors, shuttle conveyors, flippers/inverters, and more. manufactures standard and custom board handling conveyors to improve and automate PCB assembly processes. Contact Us > with your board handling requirements or get answers to questions.
Standard Features:
Manual conveyor width adjustment
Extruded aluminum conveyor rail
Chain transfer
Viable speed control
Board handling import/output sensor
SMEMA communication port
CE certified
Ultraviolet (UV) Inspection Station
|
Transmission System |
|
|
Conveyor Type |
Pin Chain |
|
Component Height Clearance |
± 1 oo mm (± 3.93") |
|
Board/ Pallet Width |
50-460 mm (1.96" -18.11") |
|
Process Flow |
L to R (Standard), R to L (Optional) |
|
Conveyor Height |
900 ± 20 mm (35.43" ± 0.79") |
|
Conveyor Speed (XY) |
0.5-5 m/min |
|
Conveyor Width Adjustment |
Manual |
|
Motor |
Micro Precision Speed Motor & Chain |
|
Facility |
|
|
Standard Footprint |
L800 xW 875 x H 910 mm/ H 915 mm (L 31.49" X W 34.44" x H 35.82"/ H 36.02") |
|
Power |
AC 220 V 50/60 Hz |
|
Rated Power |
0.1 kW |
|
Interface |
|
|
Controller |
Micro Control Unit (CU) & Button |
|
Communication Protocol |
SMEMA & IPC-CFX |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
