  •  OMRON VT-X850 SMT X-ray Inspection Machine

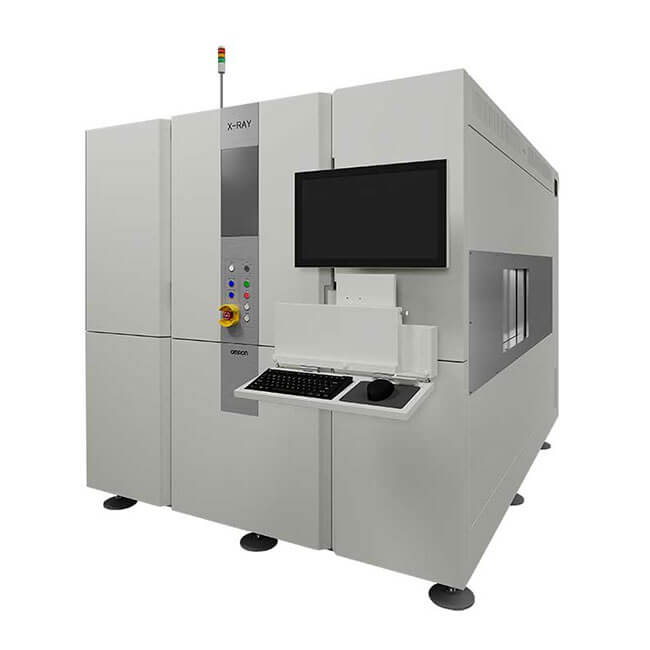

OMRON VT-X850 SMT X-ray Inspection Machine

OMRON VT-X850 SMT X-ray Inspection Machine

  • Workpiece size:150×100±0.2 ~ 610×400±0.2mm
  • Workpiece thickness:1.00mm~5.00mm
  • Workpiece height*:90mm
  • Weight:Approx. 5,500kg
BASIC INFO

OMRON VT-X850 SMT X-ray Inspection Machine


Designed to support demanding applications, like those found in EV production environments such as Power Module, eAxel, and on-board charger, the VT-X850 leverages Omron's proven 3D CT technology and produces high-quality X-ray inspection results for heavy and thick samples. The high-powered tube provides X-rays with enough intensity to penetrate samples with extremely dense shielding or enclosures

The VT-X850 offers a re-designed mechanical system leverages OMRON's own servo motors and drivers to tackle complex motion with ease, producing sharp 3D CT images. AI software algorithms further enhance detail and enable accurate and repeatable feature measurements.

True 3D CT, volumetric X-ray imaging

Multiple supported resolutions (15um - 30um)

High-powered 160kV X-ray tube

Heavy and thick sample capacity

Dynamic 3D rendering for every inspected solder joint

Intuitive, user-friendly software interface

Complete offline programming and review stations

Automatic component model creation for quick and easy programming

Compatible with Omron’s advanced process monitoring software (Q-upNavi)

Omron’s world-class service and support


Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591  Email: sales@efsmt.com

FAQ:

Q: What we can do for you?

A: One-stop SMT Solution Supplier; Reliable SMT Partner.

Q.What is your MOQ requirement for the machine?

A. 1 set moq requirement for the machine.

Q. This is the first i use this kind of machine, is it easy to operate?

A: Provide free trainingThere are also English manuals or instructional videos to show you how to use the machine.

Q: If the machine has any problem after we receive it, how can we do?

A: Our engineer will help to solve it first,  and free parts send to you in machine warranty period.

Q: Do you provide any warranty for the machine?

A: Yes 1 year warranty will be provided for the machine.

Q: What is your payment terms?

A: 30% deposit in advance and 70% balance before shipment.
