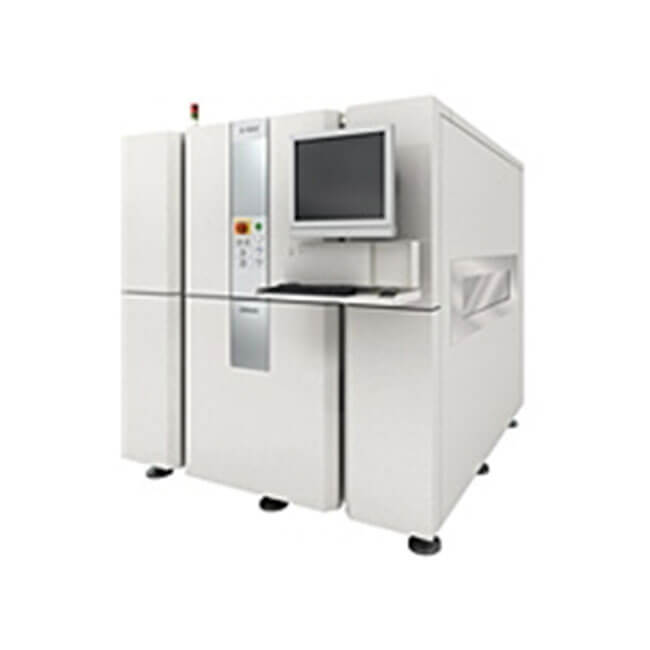

OMRON VT-X750 3D SMT X-ray Inspection Machine

A high resolution 3D CT scan with the VT-X750 cuts hidden solder joints into hundreds of cross-section slices within a matter of seconds.  The ability to isolate individual layers allows the automated inspection algorithms to measure a variety of features without the shadowing or interference of components on the opposite side (including Head-in-Pillow and voiding defects).  Omron’s offline repair and programming software also reduces the need to interrupt production and allows users to make adjustments on the fly.

Equipped with a high-voltage X-ray tube

CT technology is dedicated to eliminating artifact effect

AXI technology boasts higher speed to accommodate the rising prevalence of 3D stacked packages on PCBA.

The same exterior and system configuration as its predecessor, the X750, ensuring a seamless transition for users.

The PC and Data Server also remain consistent with the X750, streamlining the integration process.

Features

VT-X750 is the latest 3D-CT AXI Technology on the market, providing High-Quality Solution for tomorrows production environments.

Industries Highest Performing 3D-AXI System:

Built Upon a History of Omron’s High-Quality Innovation Solutions.

Fully Automated 3D CT X-Ray Inspection incorporating new AI functionality to support Automated Programming, Fine Tuning, Library creation and Optimization of the CT Image.

CT Technology is Providing Advanced Inspection for Constraint Free PCBA Design.

Automated Logics combining IPC Standards with Advanced AI Driven Easy Programming Function.

Fully off-line Programming and Tuning capability for the In-Line Process, without Disturbing Production.

Complete Inspection Logics for all PCBA devices such as BGA, µBGA, LGA, Flip Chip, PoP, QFN, THT, Press-fit and all discrete devices.

Full 3D-CT Data Processing and realization of IoT for Manufacturing as found in Industrial 4.0 Smart Factory Solutions.

VT-X750 is compatible with Omron Advanced Process Software Tools with the goal to achieve Zero Defect Manufacturing.

Omron Q-upNavi: Combine SPI, AOI and AXI Inspection Result Data for True Root-Cause Process Analysis for Process Improvement.

Unique Connection to: Omron Qup Auto-I: Production Quality Analysis across your Entire Production Line.

VT-X750 is the latest 3D-AXI technology on the market, providing High-Quality Solution for tomorrows production environments.

The VT-X750 improves upon our previous 3D-CT technology making it one the fastest X-Ray inspection system to date. The automated inspection logic has been improved for many parts such as IC heal fillets, stacked devices (PoP), through-hole components, press-fit connectors, and other bottom terminated parts. Increasing automated inspection speed and expanding inspection logic enables full, in-line inspection coverage by the 3D-CT method.
