Manncorp AP435 Solder paste printer

Printing Speed：6 to 200 mm/s
Stencil Frame Size (External) ：470 x 370 mm to 736 x 736 mm
Board Size：Min: 50 x 50 mm
Registration Repeatability：±.01 mm

BASIC INFO

Manncorp AP435 Solder paste printer

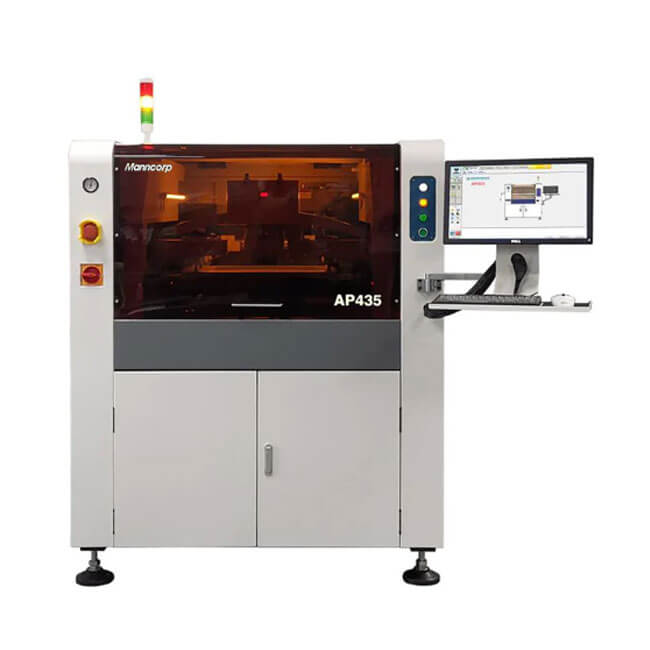

AP435 Automatic Inline Stencil Printer

The AP435 is a high-precision, fully automatic SMT stencil printer with a print area up to 400 x 340 mm. It accommodates stencils from 470 x 370 mm to 736 x 736 mm. Vision alignment from high-functioning cameras allows for quick PCB positioning. High-quality prints are guaranteed with the printer’s 4-point ball screw drive and programmable speed control for both the blades and stencil-PCB separation.

Simple Set-Up

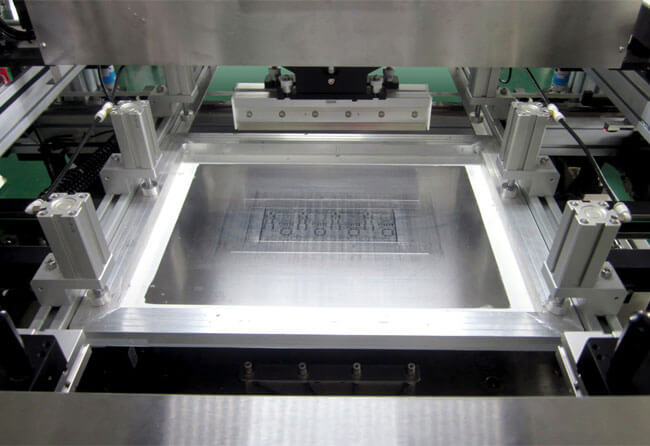

The AP435 makes job set-up fast and easy; simply input the stencil size, insert the stencil into the frame clamp, and the system software will handle the rest. Be ready for the next production assignment in a matter of seconds.

Total Programmability

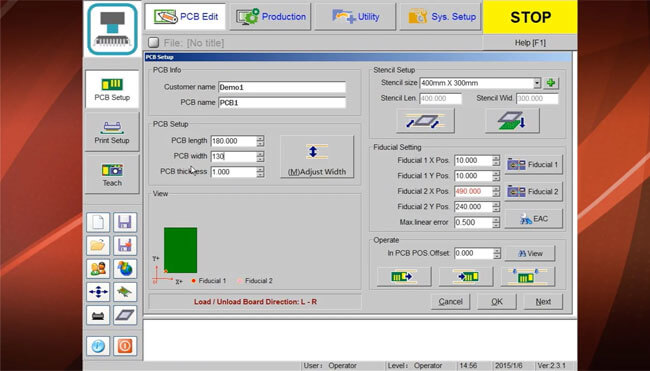

Our Windows-based equipment is easy to program, allowing your printer to be up and running quickly after install. All parameters, including print speed (programmable from 10 to 120 mm/s), stroke length, squeegee pressure, and more, are fully programmable via the graphical user interface. During operation, all details of the current job, including processing status, will be displayed on-screen for easy viewing.

High Throughput Rate

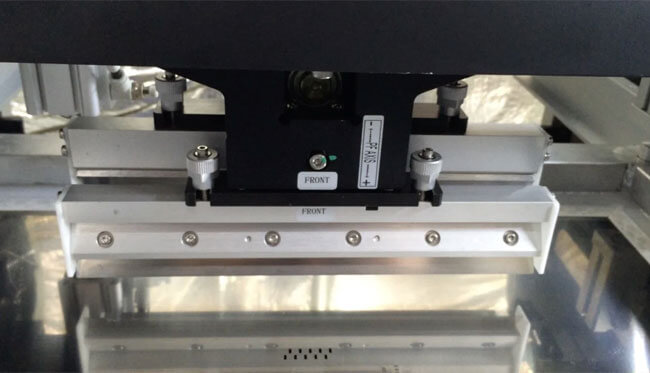

The machine’s dual-squeegee system is controlled by high-precision ball-screw drives with programmable transport speeds. Print pressure is uniformly and accurately controlled. Self-leveling squeegees automatically adjust to the stencil surface to ensure perfect registration on every print.

SMEMA Integration-Capable

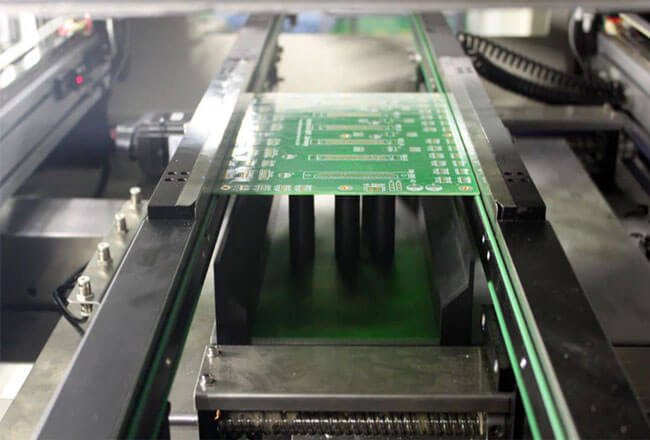

The efficient single-stage PCB transport system is SMEMA-compatible for interface connectivity with the other production equipment in your assembly line.

Under-Stencil Wiping

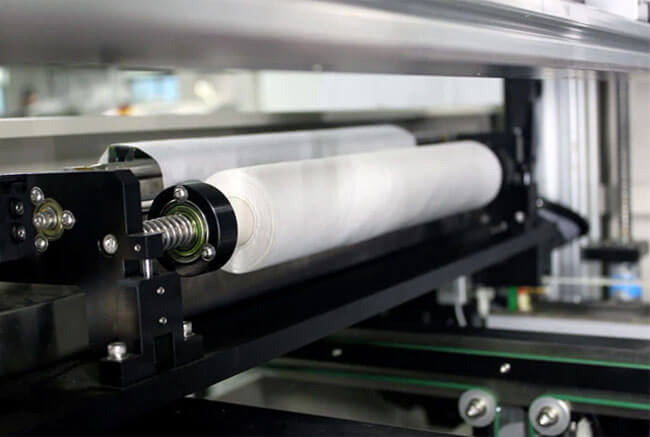

Automatic wet/dry/vacuum under-stencil cleaning is integrated into the AP435. The system can be programmed to clean the stencil using any combination of dry wipe, wipe with solvent (“wet wiping"), or wipe combined with a vacuum to draw material out from the apertures. Manncorp recommends using Zestron Vigon SC200 for cleaning solution.

Specifications

AP435 Specifications
Printing Speed	6 to 200 mm/s
Transport Cycle Time	7s (excluding printing and cleaning)
Vision Alignment System	Automatic
Stencil Frame Size (External)	470 x 370 mm to 736 x 736 mm
Stencil Frame Size (External)	(18.5" x 14.56" to 29" x 29")
Board Size	Min: 50 x 50 mm
Board Size	Max: 400 x 340 mm
Board Thickness	0.4 to 3 mm
Automatic Paste Dispense	Optional
Automatic Glue Dispense	Optional
Squeegee Blade Type	Metal
Squeegee Pressure	0 - 15 kg (Motorized Control)
X,Y,R Adjustment	X and Y ±10mm, R ±2°
Registration Repeatability	±.01 mm
PCB Fixation	Side Clamp, Magnetic Support Pins, Vacuum Tooling
CCD FOV	7 x 9 mm
Vision Fiducial	Standard Fiducial or Odd Shape .5 to 3 mm
Environmental Monitoring	Temperature and Humidity Real Time Monitoring
Power Requirements	220VAC 50-60Hz
Air Requirements	75 Psi 4.5 - 6 kgf / cm2
Dimensions	1220 x 1355 x 1500mm (48 x 54 x 59”)
Weight	1000 kg (2200 Lbs)
