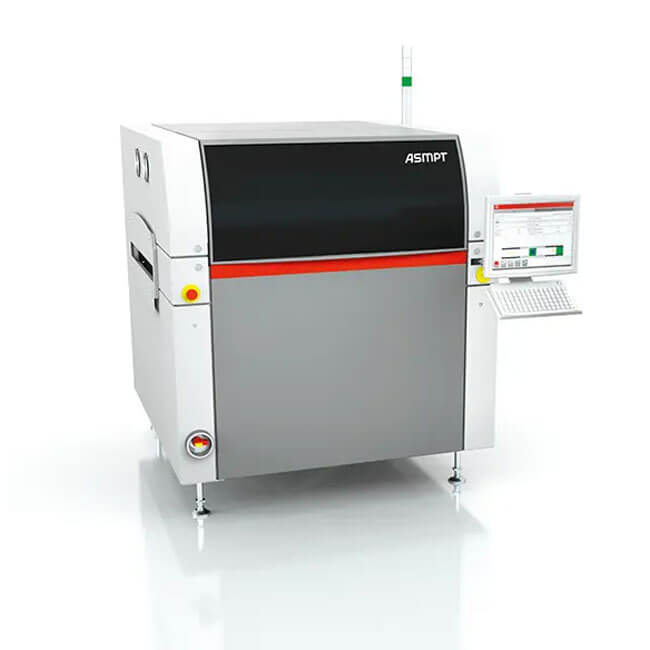

DEK NeoHorizon Solder paste printer
DEK NeoHorizon Solder paste printer
Maximum flexibility for the integrated smart factory
With its modular and scalable configuration options, the DEK NeoHorizon printer meets any process requirements and offers best flexibility for any production volumes
DEK NeoHorizon Innovations
Best printing offering to cover all your needs
DEK NeoHorizon 03 iX:
Machine Alignment Capability: ±12.5 µm @ 2.0 cmk, (±6 Sigma)
System Alignment Capability: +/- 20μm @ 2.0 cmk, (±6 Sigma)
Wet Print Capability: ±25 µm @ 2.0 cpk, (±6 Sigma) - Certified by external system for every printer before delivery by standard
Core Cycle Time (CCT): 8 sec.
Perfect printing solution for best performance in high-mix production
DEK NeoHorizon 01 iX:
Machine Alignment Capability: ±12.5 µm @ 2.0 cmk, (±6 Sigma)
System Alignment Capability: +/- 15μm @ 2.0 cmk, (±6 Sigma)
Wet Print Capability: ±20 µm @ 2.0 cpk, (±6 Sigma) - Certified by external system for every printer before delivery by standard
Core Cycle Time (CCT): 6.5 sec.
Best printing quality with maximum throughput
DEK NeoHorizon Back-to-Back:
The DEK NeoHorizon Back-to-Back setup offers higher print performance in dual-lane assembly line.
DEK NeoHorizon Options
DEK provides the industry’s most powerful and flexible printing platforms. The following retrofittable DEK options help you further improve productivity and print quality on your DEK NeoHorizon printer:
1.Full flexible DEK All Purpose Clamping (APC) system
2.High flexibility and maximum cleaning performance with DEK Typhoon Cleaner
3.DEK Grid-Lok: the universal board support system
4.DEK Paste Management: the best combination of automated paste dispensing with paste roll height control
5.Closed loop to SPI systems with ProDEK
6.DEK Multiple Alignment of Singulated Substrates (MASS) offers a solution for individual optical alignment at a very high speed to boost your throughput
Specification
| Standard configuration | DEK NeoHorizon 03iX |
| Machine alignment capability | (cpk)** ±25 μm @ > 2.0 cpk, (±6 Sigma) |
| Wet print capability (cpk) | ±25 μm @ > 2.0 cpk, (±6 Sigma),AVS-zertifiziert |
| Standard cycle time | 8 seconds + process |
| Maximum printing surface | 510 mm (X) × 508.5 mm (Y) |
| Maximum PCB size | 620 mm (X) × 508.5 mm (Y) - Long Board |
| User interface Touchscreen | Touchscreen, keyboard and trackball,Instinctiv DEK V9 Software |
| Camera | DEK HawkEye® 750 digital camera |
| with 2-way LED illumination | |
| Squeegee adjustment | Motorized with squeegee pressure feedback |
| Stencil loading | Semi-automatic |
| Stencil alignment | Motorized (actuators); aligned on |
| X- and Y-axis and rotation | |
| ProFlow | Optional |
| Understencil cleaning | IUSC 300 mm/400 mm/520 mm |
| Technical documentation | Printed documents: User manual, installation instructions, circuit diagrams. |
| Technical instructions and videos that explain all operating steps are preinstalled. | |
| Compressed air supply | 5-8 bar at ~5 liters/minute |
| Power supply | 100 Volts to 240 Volts ±10 %. Single phase 50/60 Hz |
| Weight Approx. | 690 kg depending on selected options |
