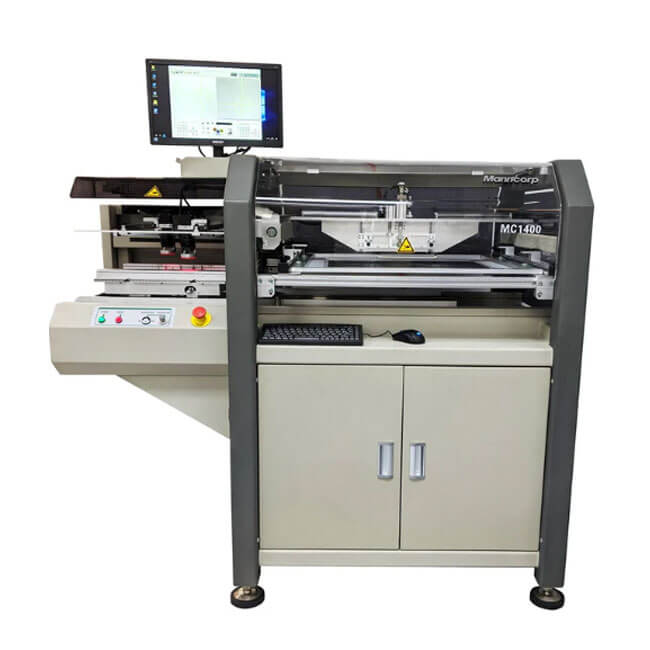

Manncorp MC1400 Solder paste printer

Printing Speed：2 to 150 mm/s (servo controlled)
Stencil Frame Size ：450 mm x 450 mm to 700 mm x 700 mm
Printing Area：Max: 400 x 400 mm
XY Adjustment：±5 mm

BASIC INFO

Manncorp MC1400 Solder paste printer

The MC1400's automatic vision alignment system ensures accuracy while the printer's linear-guided movements and vertical stencil separation provide high precision and repeatability, a combination that results in ultra-fine-pitch printing capability. Experience component pitches as tight as 0.3 mm (12 mil). With quick setup and changeover, our MC1400 stencil printer easily keeps pace with medium-to-high volume production lines and is well-suited for precision batch printing.

Automates Alignment & Printing

Included AT-Align software is a powerful automatic fiducial finding and PCB board offset adjustment system that automatically aligns the PCB to the stencil for each print without operator intervention—simply press the start key and the MC1400 takes over the aligning and printing.

Eliminates Alignment Errors

Gaps, shadows, parallax errors and solder residue may all be concealed when viewing PCBs through the stencil. The MC1400's vision cameras view the board directly rather than through the stencil, eliminating image distortion.

Reduces Solder Paste Consumption

The MC1400 comes standard with a dual-squeegee/dual-stroke-control system for the most efficient use of solder paste. Its cycle time is just 15-25 seconds per PCB with registration repeatability of ±0.01 mm (0.0004"). All movements—PCB position, mounting table, and squeegee head—rely on precision linear guide while the print speed and table speed are servo controlled.

Large Print Area

A 400 x 400 mm mounting table comes standard (15.75" x 15.75"). Larger sizing, such as 500 x 400 mm (19.68" x 15.75"), is available. Stencil frames up to 700 x 700 mm (27.5" x 27.5") can be mounted.

Easy programming

All parameters—print speed, stroke length, squeegee pressure, etc.—are fully programmable using the graphical, Windows-based control software. During operation, the on-screen process status shows all details of the current print job. Flexible tooling holders make PCB setup and changeover very quick. The holders can be used with tooling pins (included) or with vacuum, for edge-to-edge printing.

Specifications

MC1400 Specifications
Printing Speed	2 to 150 mm/s (servo controlled)
Table Up / Down Speed	0.2 to 4 mm/s (servo controlled)
Vision Alignment System	Automatic (AT-Align system)
Stencil Frame Size (External Dimensions)	450 mm x 450 mm to 700 mm x 700 mm
	(17.7" x 17.7" to 27.5" x 27.5")
	Thickness: 31.7 mm (1.25" max.)
Printing Area	Max: 400 x 400 mm
	Optional max: 450 x 400 mm
	Optional max: 500 x 400 mm
Board Size	Min: 20 x 20 mm
	Max: 400 x 400 mm
	Optional max: 450 x 400 mm
	Optional max: 500 x 400 mm
Board Thickness	0.8 to 8 mm
Board Thickness	Optional: 0.2 to 8 mm
Underside Clearance	Max: 26 mm
Printing Stroke	Max: 400 mm
Squeegee Pressure	0-15 kg
Blade Type	Standard length: 250 mm
Blade Type	Optional: 200 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mm
XY Adjustment	±5 mm
Radial Adjustment	±2°
Registration Repeatability	±0.01 mm
Support Tooling	Magnetic pin & vacuum block
Vision Alignment Resolution	0.0085 mm/step
Vision Fiducial	Standard fiducial and any pads
Air & Power Requirements	220VAC power, 75psi (5 bar) air
Dimensions (L x W x H)	51" x 35" x 51" (1300 x 900 x 1300 mm)
Weight	904 lbs (410 kg)
