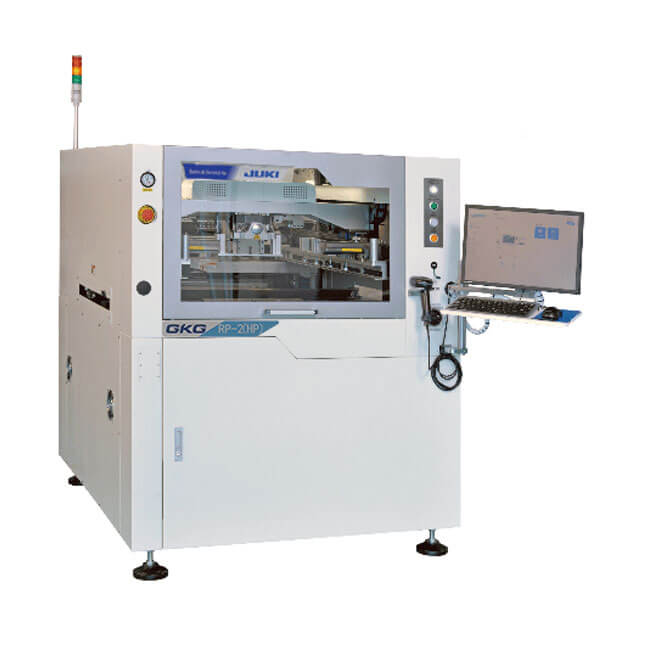

Juki RP-2(HP)/RP-2(B) Solder paste printer
Optimum-Paste Control (OPC) – Get ready for lights – out manufacturing

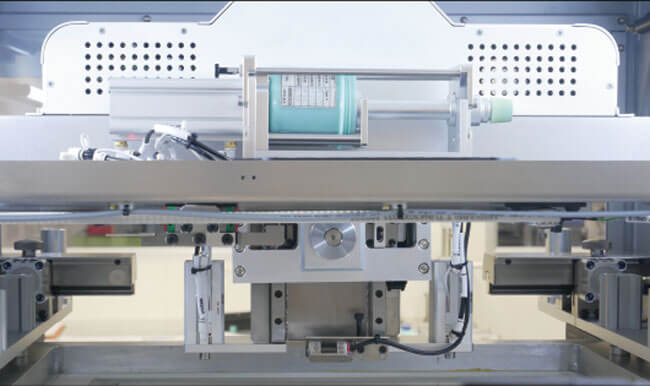

Auto solder paste replenishment system
The solder paste is automatically dispensed across the entire squeegee length, maintaining at 15 mm rolling diameter, adopting the common 500 grams’ solder paste jar. Completely eliminates the wastage of solder paste overflowing to the sides of squeegee.

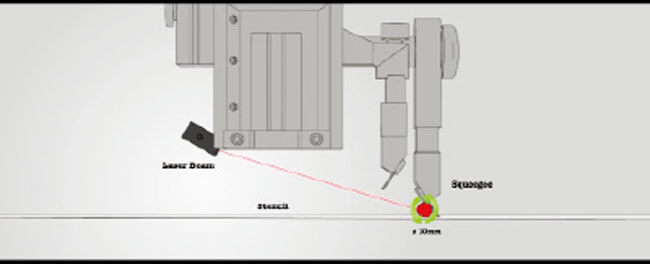

Solder paste rolling diameter monitoring system
Tracing solder paste rolling diameter in real time and trigger the auto dispensing if it falls below 10 mm. Completely eliminate insufficient solder paste on stencil and keep the paste rolling speed within optimum range to achieve best printing result.
Quality Print Control (QPC) – Nothing is more important than a GOOD print

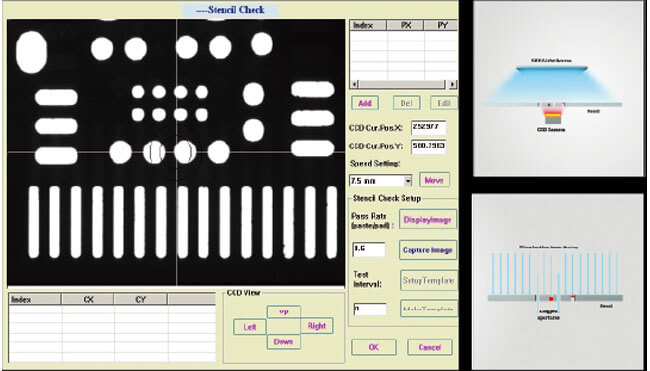

Stencil aperture inspection system
Using panel light installed at the top and CCD camera below to inspect stencil apertures. It automatically detects the clogging of stencil apertures to eliminate poor quality stencil being used, ensure quality printing right from the start.

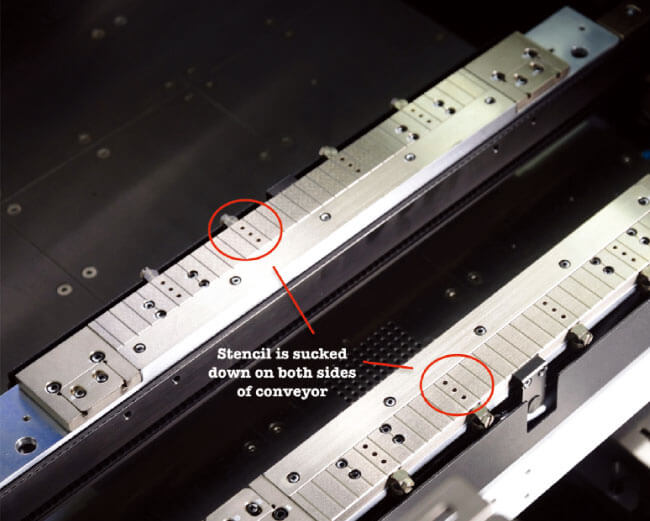

The Stencil lock & PCB clamper
The Stencil lock sucks the stencil firmly on both sides of the conveyor during printing cycle. To eliminate stencil vibration by having firm contact with PCB. The PCB clamper is a combination of retractable top clamp and motor controlled side clamp, uniquely designed by GKG (patented). With these standard features, all of today’ s available and challenging substrates can be securely clamped and print to the highest quality.

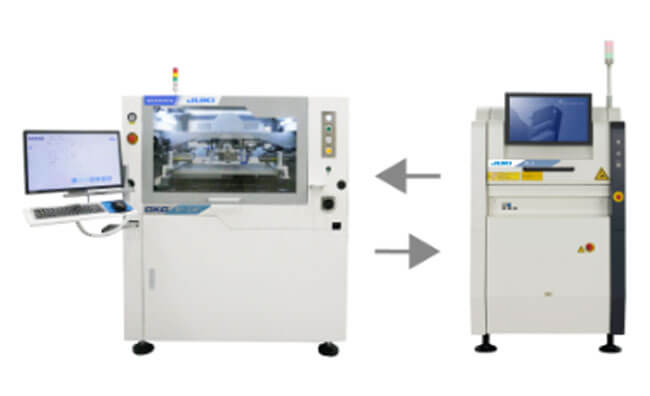

SPI Close-loop connection
With SPI close-loop system, machine will automatically adjust and correct the print deposits based on the feedback given with regards to poor printing quality. This will facilitate improved print quality and production efficiency, by forming a complete printing feedback system.
Specification
|
PCB size |
50mm×50mm – 510mm×510mm |
|
Cycle time |
8.5 sec+Printing time |
|
Positioning accuracy |
±10μm（6σ） |
|
Stencil frame size (L x W) |
Adjustable, 470 x 370 mm to 737 x 737 mm |
|
Power supply |
Single-phase AC200V~240V 50/60Hz |
|
Air supply |
0.4 ~0.6MPa/cm² |
|
Dimension |
1,240 (L) x 1,560 (W) x 1,490 (H) |
|
(excluding signal tower) |
|
|
Machine weight |
1,200kg |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
