GKG G-TERA Solder paste printer

Print Speed:10~200 mm/s
Process Alignment Capability :±12.5µm @ 6σ (CMK≥2.0)
PCB Bottom Clearance:20 mm
Machine Weight:1,250kg ~ 1,300kg

BASIC INFO

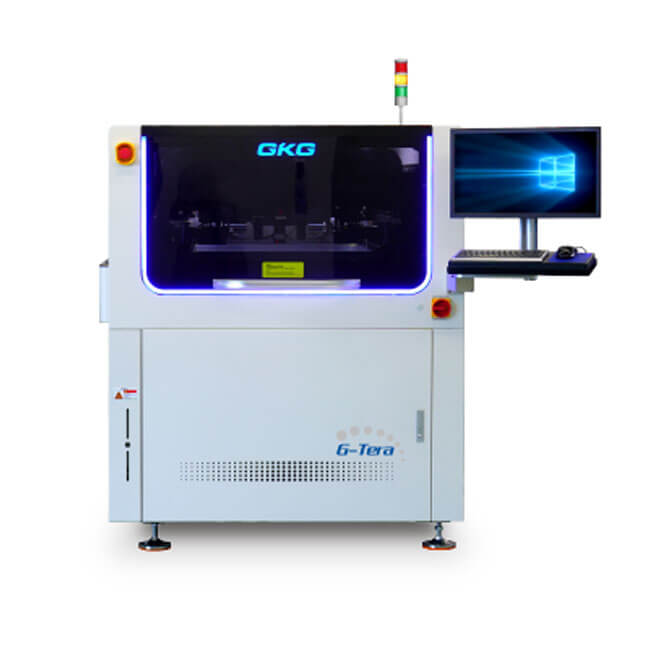

GKG G-TERA Solder paste printer

The new generation of automatic printing presses, the all-new G-Tera, is equipped with a 3.0-megapixel LIGHT-Bolt CCD camera, an upgraded conveyor system, and an enhanced printing system. It reduces the actual cycle time by up to 40% compared to other GKG SMT printers. The G-Tera utilizes a high-precision servo-driven dynamic system to ensure fast and accurate alignment. With its independent cleaning system, it capable to print ultra-fine pitch pads as small as 0201 metric, guaranteeing high-quality solder paste printing and boosting production efficiency.

The entire machine is computer-controlled, featuring a user-friendly operating interface and a wide range of software functions. It is built with “ready for the future” functionality, making it the smartest and most future-proof machine in the GKG SMT printer series.

LIGHTNING SPEED

Core Cycle Time : 5.2 secs | Actual Cycle Time : 12.5 secs

The upgraded linear motor-driven ‘LIGHT-Bolt’ fiducial camera (3.0 megapixel, FOV: 8 x 10 mm) moves and captures stencil and PCB fiducial marks concurrently at lightning speed.

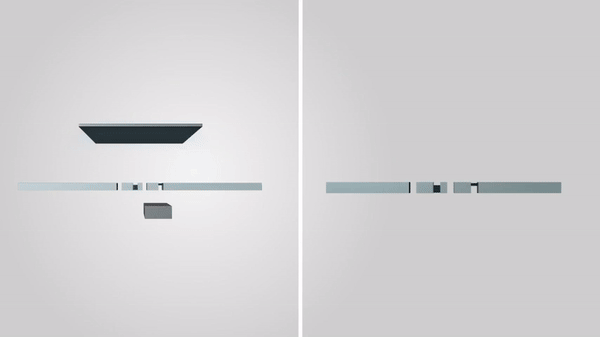

The single-stage or 3-stage mode is automatically generated through programming. When converting to 3-stage mode, the conveyor system is able to pre-loaded PCB to reduce loading and unloading time.

The upgraded linear motor-driven cleaning system is able to operate independently without relying on external power, significantly reducing cleaning stroke delay time.

UNMATCHED ACCURACY

Wet Print Capability : ± 12.5 um @ 6 sigma, ≥2 Cmk

The squeegee pressure feedback and dual cylinder driven squeegee structure design provide real-time pressure monitoring, preventing uneven printing distribution on large boards and ensuring a printing pressure accuracy of ±0.2 kg.

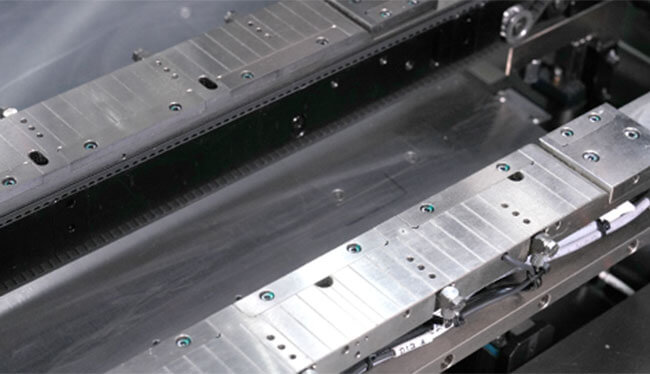

Stencil Lock utilizing a vacuum hold-down mechanism to secure the stencil firmly on both sides of the conveyor rail, ensuring firm contact with the PCB during printing and eliminating the stencil ‘waving’ effect.

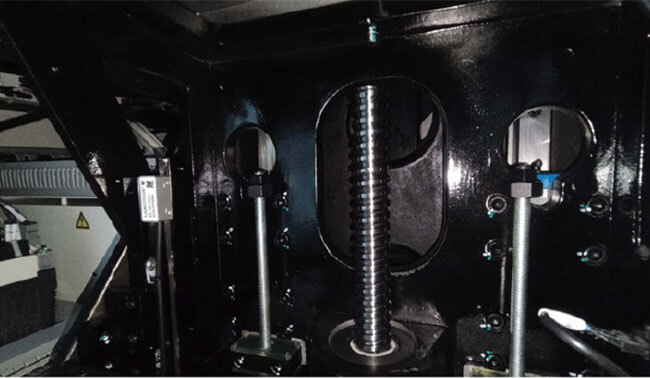

The real time Print Table Height (Z axis) Monitoring System, which monitoring the print table up/down accuracy within 15 microns.

VERSATILE CAPABILITY

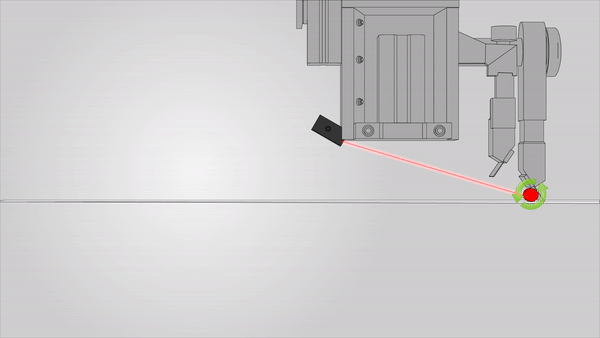

Real-time monitoring of paste rolling diameter within a controlled range. Ensuring an optimal paste quantity on the stencil surface, while maintaining the rolling speed during printing cycle for optimal quality control.

Providing consistent edge-to-edge printing, the conveyor system is equipped with hidden fixed top foil clamps on both sides of the conveyor edge that can be slid out manually and used concurrently with the motorized auto edge clamp for thin PCB printing.

Go Green, Go Paperless!! The newly invented paperless and self-cleaning stencil cleaning system combining vacuum suction and scraper, significantly improving cleaning results and drastically reducing the usage of IPA and lint-free paper.

FUTURE PROOF SOLUTION

Compatible with either glue dispensing or solder paste dispensing. Featuring with two types of jetting valves, allowing for dispensing after printing.

AGV assisted automatic stencil changing is triggered by commands from MES server. The AGV delivers the new stencil and collects the used stencil from the rear side of the printer, pairing with the automatic solder paste collection function to achieve zero human intervention.

The automatic solder paste collection function is equipped with an auto paper roller to collects retained solder paste on the stencil surface and transfers it to a new stencil surface after stencil changing. This feature pairs with the AGV assisted auto stencil changing function to achieve zero human intervention.

The facial recognition authorization system utilizes facial recognition technology to provide machine access control and ergonomically adjust the display height according to user’s specific preferences for optimal comfort.

Stencil aperture inspection system is programmable to perform automatic inspections after a set number of printing cycles. Automatically triggering cleaning stroke if clogged apertures are detected.

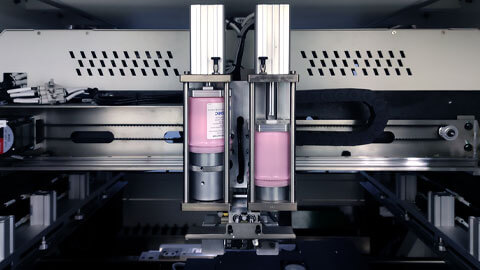

The Auto Paste Replenishment System able to hold two 500g cans of solder paste to replenish it automatically.

SPECIFICATION

Performance
Machine Alignment Capability	±8µm @ 6σ (CPK≥2.0)
Process Alignment Capability	±12.5µm @ 6σ (CMK≥2.0)
Core Cycle Time	5.2 secs
(excluding printing & cleaning time)	5.2 secs
Actual Cycle Time	12.5 secs
(including printing & cleaning time)	12.5 secs
Product Changeover Time	2 mins
New Product Set-up Time	4 mins
PRINTING PARAMETERS
Print Speed	10~200 mm/s
Print Pressure	0.5 – 20kg
Print Mode	Single or Dual squeegee printing
Squeegee Type	Std: OPC Squegee
Squeegee Type	Opt: Metal / Rubber / 2 Steps Squeegee
Snap Off Distance	0-20mm
Snap Off Speed	0-20mm/s
Stencil Frame Size (L x W)	Adjustable, 470 mm x 370 mm to 737 mm x 737 mm
Stencil Positioning Method	Automatic Y-direction positioning
Cleaning System	2 in 1 Paperless self cleaning dry & secondary wet lint-free paper with vacuum suction (software select)
Board Handling
Max. Size (L x W)	Single Stage : 510 mm x 510 mm
Max. Size (L x W)	3-Stage : 265mm x 510mm (Optional 400mm x 510mm)
Min. Size (L x W)	50 mm x 50 mm
Board Thickness	0.4~6 mm
PCB Thickness Adjustment	Automatic Height Adjust Platform
PCB Max. Weight	5 kg
PCB Edge Clearance	2.5 mm
PCB Bottom Clearance	20 mm
Conveyor Height	900 ± 30mm
MAX. Conveyor Speed	1500mm / s
Conveyor Belt	U-Shape Belt
Conveyor Direction	L to R, R to L, R to R, L to L
Support Method	Magnetic support pins, bars, dedicated vacuum block
Clamping Method	Auto Motorized Edge Clamp / Manual Hidden Fixed Top Foil Clamp
OPTICAL SYSTEM
Field-of-View (FOV)	10mm x 8mm
CCD Camera	3.0 MP CCD Digital camera look up & down concurrently
Fiducial Types	Circle, triangle, square, diamond, cross
Fiducial Size	0.1~6.0 mm
Number of Fiducial	2 – 4pcs
Facility Requirement
Power Supply	AC220±10%, 50/60Hz 2.2kW
Air Supply	4~6kgf/cm²
Air Consumption	~5L/min
Working Temperature	-20°C ~ +45°C
Dimension (Excluding signal light)	1,258(L) x 1,540(W) x 1,520(H) mm
Machine Weight	1,250kg ~ 1,300kg
