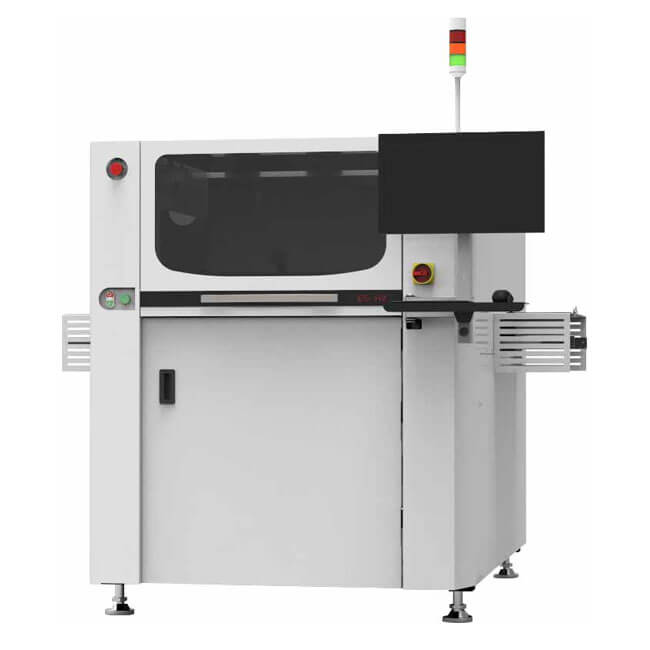

ESE ES-H2 Solder paste printer

General SMT printing High speed printer

Super core cycle time and High throughput Printer

Back-To-Back (BTB) configurable

Linear motor applied

PCB Size

50㎜ x 50㎜ - 550㎜ x 510㎜

PCB Thickness

0.3㎜ to 6㎜

Stencil Mark Size

550㎜ , 584㎜ (23”), 650㎜ , 736㎜ (29”)

Core Cycle time

6sec / under optimized condition

Alignment Accuracy

±10 ㎛ @ 6 sigma

Printing Repeatability

±20 ㎛ @ 6 sigma , Cmk ≥2.0 by 3rd party
[* ±18 ㎛ @ 6 sigma , Cmk ≥2.0 by ESE]
