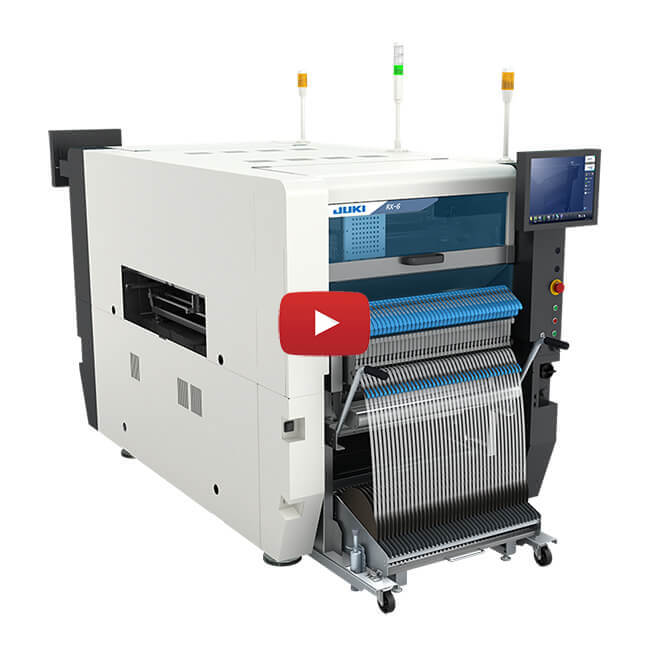

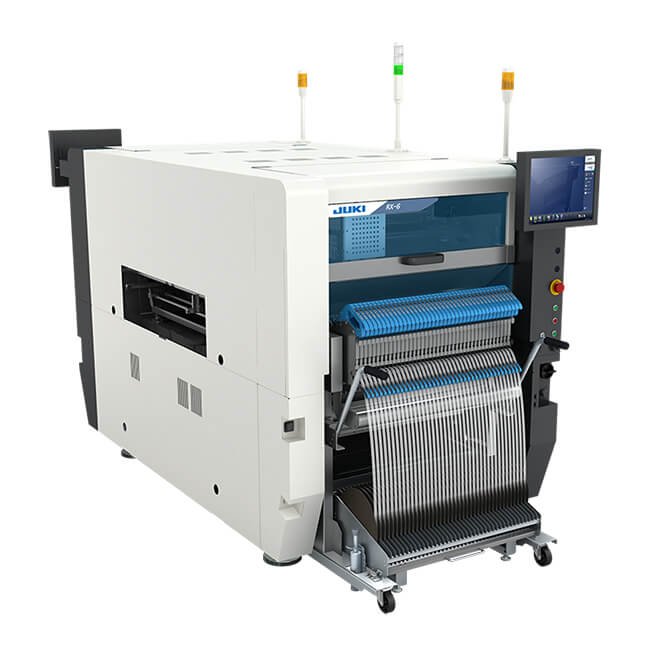

JUKI RX-6 Pick and place machine

Placement Speed : 52,000 CPH
Applicable PCB : 50×50㎜~905×590㎜
Applicable Part : 0402 (01005) ~ 50 mm (Laser recognition)
Accuracy: ±40μm(Cpk≥1)

BASIC INFO

JUKI RX-6 Pick and place machine

High Productivity

JUKI’s RX-6 specialises in high-speed component placement of up to 52,000 CPH (optimum). Each machine comes with two placement heads, one at the front and one at the back. This increases versatility as well as productivity and ensures the effective placement of components.
High Quality
Equipped with a laser system as well as an optical system the RX-6 operates with 2 centring technologies which ensure an uninterrupted optical detection of components at high speed. The standard RX-6 feature of a placement monitor and other features such as EPV – Embedded Process Verification, CVS – Component Verification System or OPASS – Offset Placement After Solder Screen-printing – recognise possible sources of error, even electrical ones, quickly and reliably.
High Flexibility
JUKI’s RX-6 is the ideal machine for line solutions, processing components from 0402 (01005) up to 50 × 50 mm. The head with three nozzles supports an even larger section: from 0402 (01005) chips with plugs up to lengths of 100 × 100 mm or 50 × 180 mm. The maximum component height that can be processed is 33 mm. Printed circuit boards of sizes up to 905 × 590 mm can be processed as standard.

Board Size
50 × 50 mm ~ 905 × 590 mm (Single-lane conveyor)
50 × 50 mm ~ 360 × 250 mm* (Dual-lane conveyor)
Component Size
6 / 12 / 20 / 25 / 33 mm
Component Height
6 × 6 nozzles:
0402 (01005) ~ 50 mm (Laser recognition)
3 mm ~ 33,5 mm (Vision recognition, Standard camera)
1005 ~ 20 mm (Vision recognition, High-resolution camera)
6 × 3 nozzles:
0402 (01005) ~ 33.5 mm (Laser recognition)
3 ~ 100 mm / 50 × 180 mm (Vision recognition, Standard camera)
1005 ~ 48 mm / 24 × 72 mm (Vision recognition, High-resolution camera)
Placement Rate
Optimum:
52,000 CPH (6 × 6), 34,000 CPH (6 × 3)
IPC9850:
26,000 CPH (6 × 6), 23,000 CPH (6 × 3)
Placement Accuracy
± 0.04 mm (Cpk ≥ 1)
Component Loading Quantity
max. 160 in case of 8 mm tape (electric double tape feeder)
Power Supply
200 – 415 VAC, 3-phase
Apparent Power
3.5 kVA
Operating Air Pressure
0.5 ± 0.05 MPa
Air Consumption
100 L / min
Machine Dimensions (W × D × H)
1,250 × 2,095 × 1,440 mm
Mass (approximately)
1.80 t (Single-lane conveyor)
1.83 t (Dual-lane conveyor)
