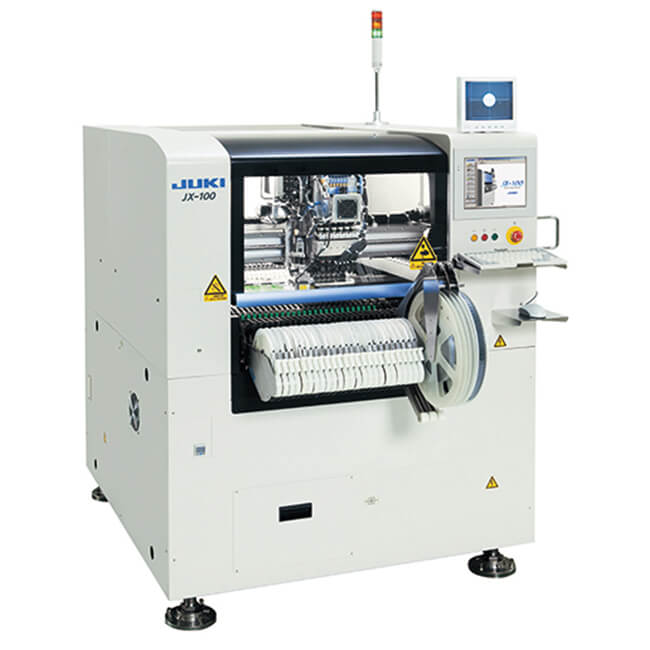

JUKI JX-100 Pick and place machine
Outstanding Cost Performance
By narrowing down the functions to the minimum essential items, low cost and high productivity have been realized.
Through the adoption of the same recognition equipment that is used in JUKI’s advanced mounters, it is possible to realize high-speed placement of 19,300CPH (under optimum conditions).
Outstanding space efficiency is realized due to the compact and lightweight design.
Nozzle and tape feeder compatibility is provided with more advanced machine types, so that these assets can be effectively made use of in the future.
Wide Multiplicity of Uses
Components from 0603 components (chip components of 0.6 x 0.3mm size), which are difficult to place using manual placement and secondhand mounters, up to 33.5mm square large-sized components, can be placed using a single machine.
The circuit board transfer can be switched between straight/U-turn to allow support for simple production methods such as cell production, and enable free layout implementation.
High Product Quality
Because the laser sensor will carry out monitoring of the component pickup condition until immediately before placement, it will be possible to prevent component dropping, component return, and tombstones.
The base frame employs a unified cast-metal design. This has outstanding vibration characteristics and durability, supporting high placement quality and also meeting the requirements for long-term use.
Operability with Confidence
Due to the highly reputed simple data production, the learning time required can also be shortened to allow smooth machine introduction.
Through the employment of fully graphical operation screens and the touch panel monitor that are not reliant on language-based text, even operators with little experience in machine operation can easily carry out operations with confidence.
| Board size | Min.50×50 ～ Max.330×250mm | ||
| Component size | Min. 0603mm(0201 Inch) ～ Max. □33.5mm | ||
| Component centering device | Laser centering (LNC60) | ||
| Placement speed (chip) | Chip | Optimum | 0.187Sec./chip(19,300CPH) |
| IPC9850 | 15,300CPH | ||
| Placement accuracy | ±0.05mm（±3σ） | ||
| Feeder inputs | Max. 30 8mm tape feeders, 60 with optional rear bank. | ||
