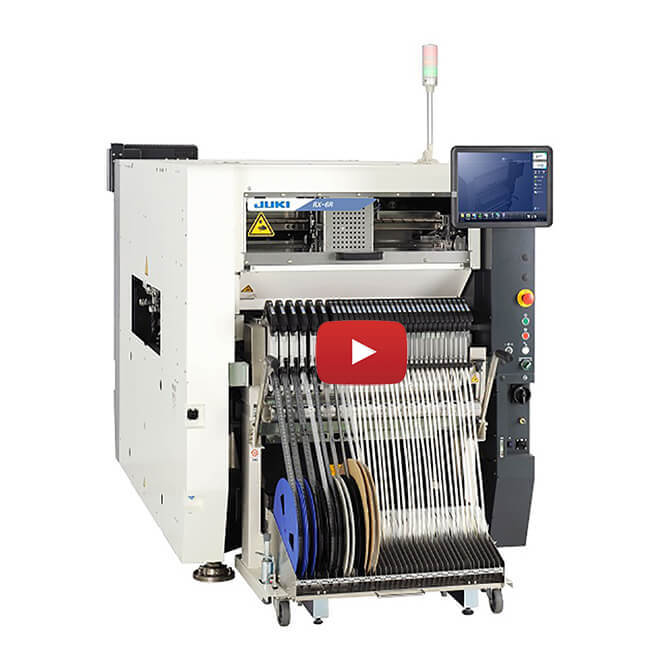

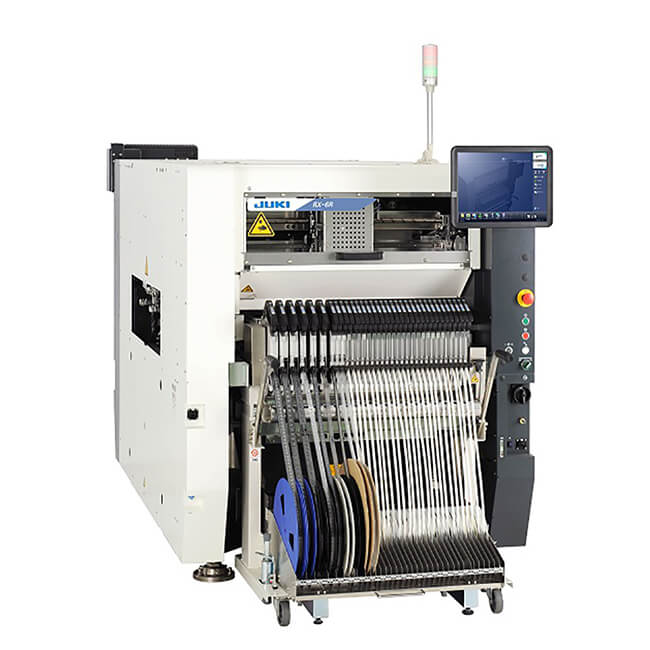

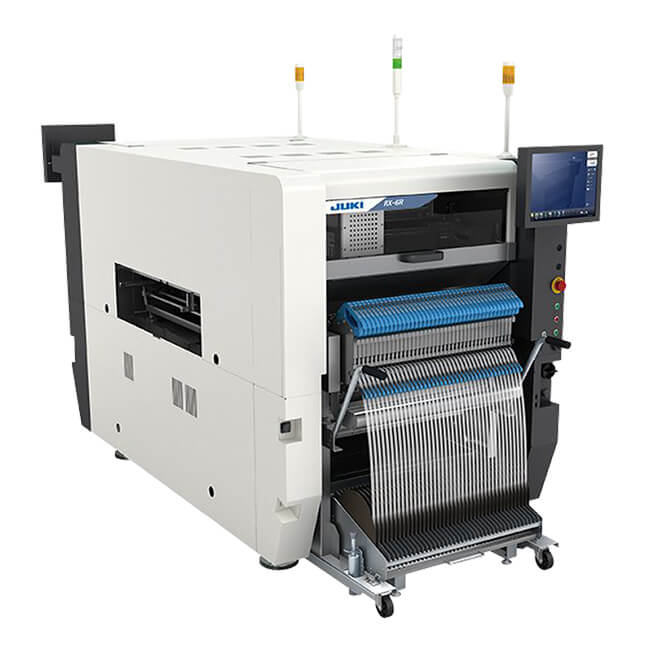

JUKI RX-6R/RX-6B Pick and place machine
This is applicable to dual-lane production.*6
Compact footprint : the width is just 1.25m
Equipped with standard Placement Monitor check function.*1
Replaceable head allow you to configure a production line best suited to the current repirments.*6
High-speed component placement using high-speed non-stop vision recognition.*3
Wide range of components and boards: tall components, large components and large boards.
Brand new Matrix Tray Sever TR8S improves the component capability and productivity.
| Placement speed | Chip : 52,000CPH*2 |
| IC : 14,000CPH*3 | |
| Component size | 0402mm(01005 inch) ~ 50mm×50mm*4 |
| 0402mm(01005 inch) ~ 100mm×100mm / 50×180mm*5 | |
| Board size | Single lane conveyor: |
| 50×50 ~ 610×590 / 905×590(2times clamping) | |
| Dual lane conveyor*6: | |
| 50×50 ~ 360×250 / 360×450(single lane conveyor specification mode) | |
| Head unit | 6×6nozzle head |
| 6×3nozzle head *6 |
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
