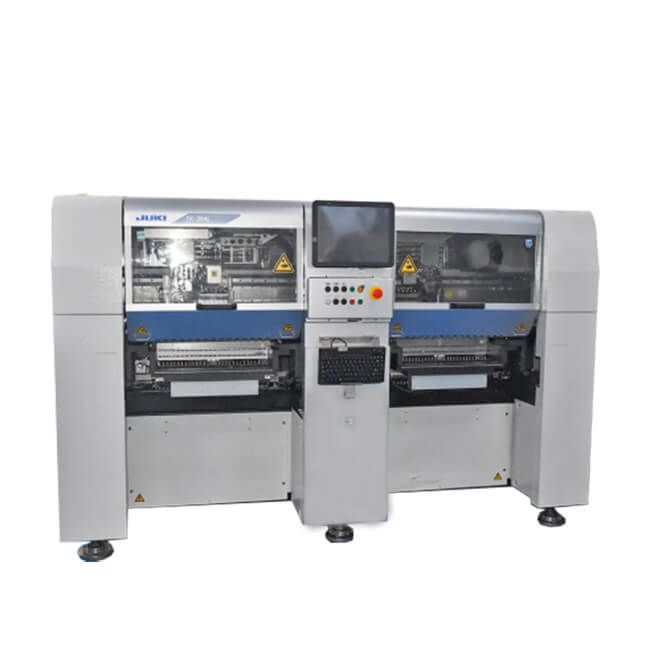

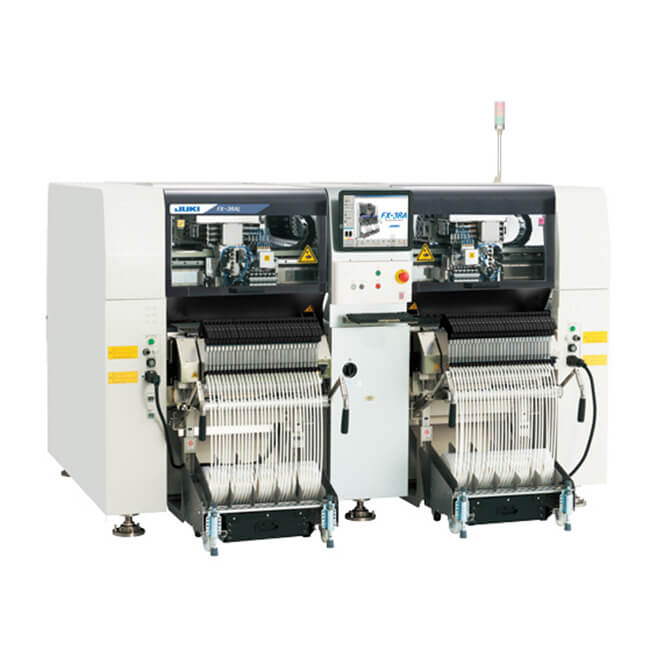

JUKI FX-3RA Pick and place machine
90,000CPH (0.040Sec. / chip / Optimum）
66,000CPH (IPC9850)
0402mm(01005 inch) ~ 33.5mm×33.5mm
Laser recognition : ±0.05mm(±3σ)
On-the-fly centering using integrated laser
2 stations, 4 gantries, 4 placement heads, 24 nozzles
Linear servo motor XY drive with full closed-loop control
Holds up to 240 components
Electrical or mechanical feeder trolley
| Item/Model | High-Speed Modular Mounter FX-3RAL | High-Speed Modular Mounter FX-3RAXL | |
| Board size | L size(410x360mm) | yes | no |
| L-Wide size(510x360mm)*1 | yes | no | |
| XL size(610×560mm) | no | yes | |
| Applicability to long PWB*1 | 800×360mm | 800×560mm | |
| Component height | 6mm | yes | |
| Component size | Laser recognition | 0402(01005) ~ 33.5mm×33.5mm | |
| Placement speed (chip) | Optimum | 0.040Sec. / chip(90,000CPH)*2 | |
| IPC9850 | 66,000CPH*2 | ||
| Placement accuracy | Laser recognition | ±0.05mm(±3σ) | |
| Feeder inputs | Max.240 in case of 8mm tape | ||
| (on a Electric double tape feeder) | |||
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
