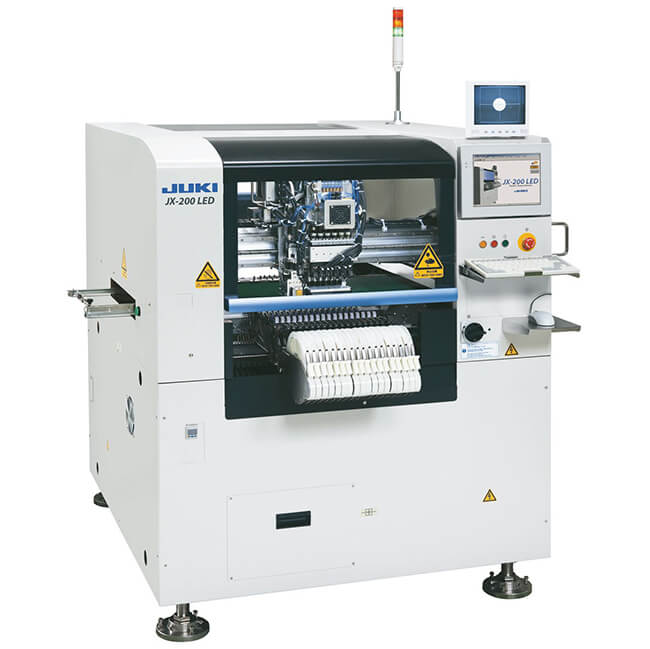

JUKI JX-200 Pick and place machine
Substrate size: for M substrate (330×250mm) L substrate (410×360mm) L-wide substrate (510×360mm)
component height: 6mm specification
component size: laser recognition 0603 (imperial 0201) chip to 20mm square component or 26.5×11mm
0402 (English 01005) chip requires optional
component placement speed (actual ergonomics): chip component 13,200CPH
component placement accuracy: laser recognition ±0.05mm
component placement type: up to 80 types (converted to 8mm tape)
component packaging ：With 8mm, 12mm, 16mm, 24mm, 32mm, 32mm paste, 44mm, 56mm, 72mm /pole/parts/tray power supply three-phase AC200~415V
rated power: 3KVA
Use air pressure: 0.49±0.05Mpa
Air consumption (standard state): 230L/min
Weight: about 1400kg
| Board size | Min.50 × 50 ～ Max.800*1 × 250mm | ||
| Component height | 12mm | ○ | |
| 20mm | ○ | ||
| Component size | Laser recognition | 0603*2 ～ □33.5mm | |
| Vision recognition | Standard camera | □3mm ～ □33.5mm | |
| High-resolution camera (option) | 1.0 × 0.5mm ～ □24.0mm | ||
| Placement speed | Chip | Optimum | 0.199Sec./chip (18,050 CPH) |
| IPC9850 | 13,900 CPH | ||
| IC | 4,400 CPH | ||
| Placement accuracy | Laser recognition | ±0.05mm（±3σ） | |
| Vision recognition | ±0.04mm | ||
| Feeder inputs |
Max.60 on 8mmT/F |
||
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
