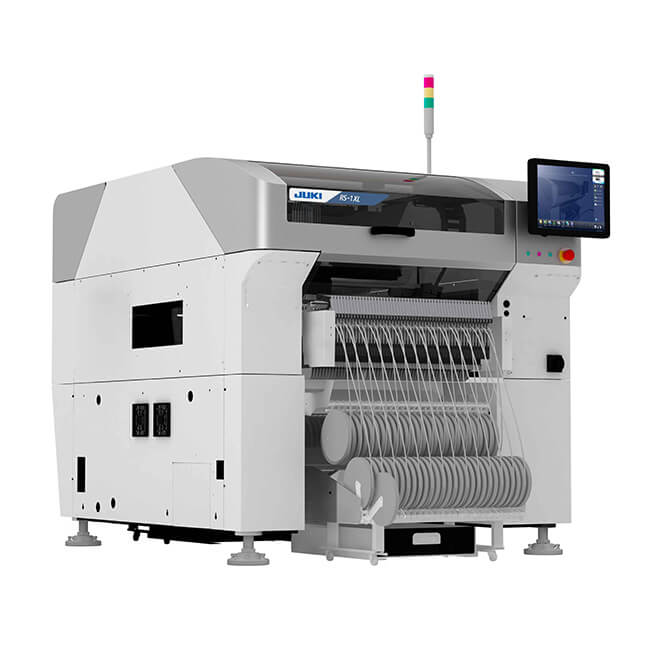

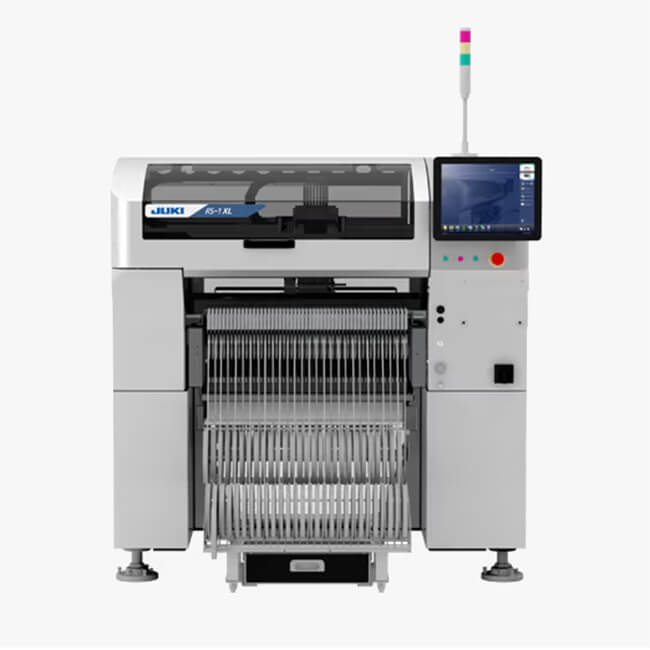

JUKI RS-1XL Pick and place machine
- Class leading speed, up to 42,000 cph
- 0201* ~ 74mm×74mm / 50mm×150mm
- Wide component range
- Optimum line balance and highest throughput
- Newly developed “Takumi Head” with changing recognition sensor height
- JUKI’s laser centering technology is fast, accurate and reliable for a wide range of parts.
| Fast Smart Modular Mounter | ||||
| Model | JUKI RS-1XL | |||
| Board size | 50×50㎜~650×560㎜ | |||
| Component height | 25㎜ | |||
| Component size | 0201*1～□74㎜/150×50㎜ | |||
| Placement speed | Optimum | 42,000CPH | ||
| IPC9850 | 29,000CPH | |||
| Placement accuracy | ±35μｍ (Cpk≧1) | |||
| Feeder inputs | Max. 112*2 | |||
| Power supply | AC200 ～ 415V*3 .3-phases | |||
| Apparent power | 22 kVA | |||
| Operating air pressure | 0.5±0.05 Mpa | |||
| Air consumption | 200L / min | |||
| Machine dimensions (W×D×H)*4 | 2,109×2,000×1,440 ㎜ | |||
| Body weight | 1,850 kg | |||
*1 For metric 0201 compliance please contact us.
*2 Using RF (RF08AS) feeders.
*3 A transformer unit (option) is necessary except AC 200 V.
*4 D dimension does not include the front operation monitor. H dimension does not include signal tower.
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
