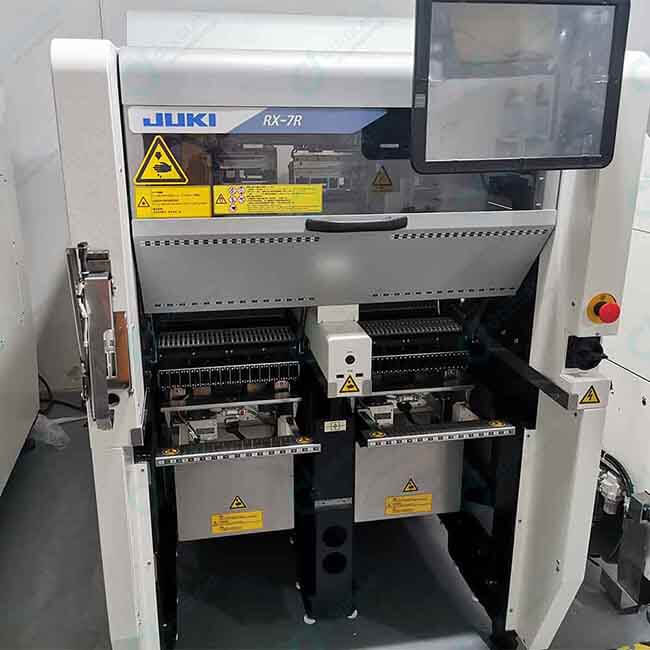

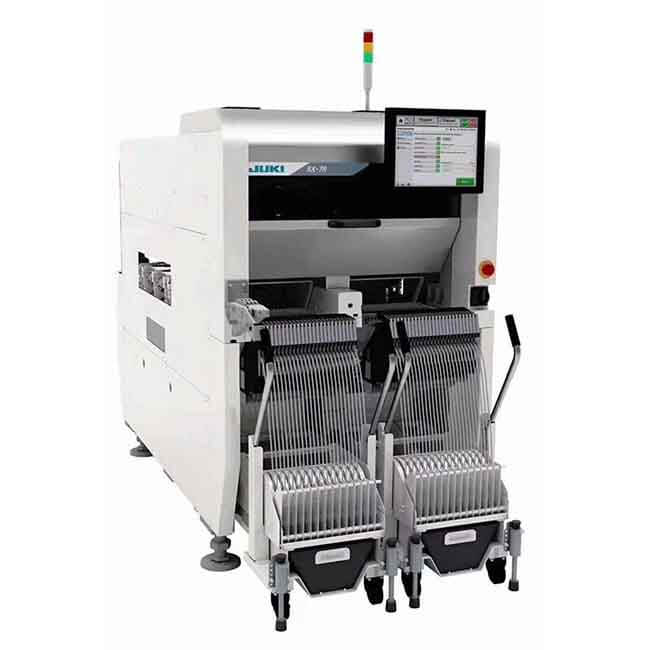

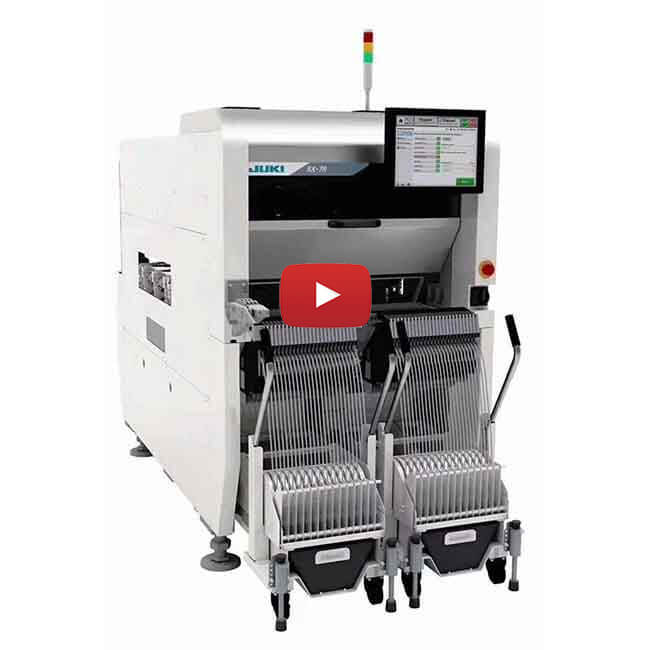

JUKI RX-7R Pick and place machine
New P16S head achieves further high-precision mounting.
The P16S head is a 2nd generation design that greatly improves the placement angle accuracy. It is ideal not only for chips and small ICs, but also for printed circuit board production using LED edge lights, which require high accuracy.
Simultaneous production of two L-sized boards.
The dual lane conveyor of the RX-7R supports PCBs up to 420 mm x 450 mm. This capability greatly increases the flexibility of the RX-7R and improves productivity.
Upside down component check
Adding to the previous capability of checking chip component orientation, the P16S head can also determine if leaded components are picked upside down. This function increases quality and reduces rework costs.
Low impact placement
The P16S head has a two stage H axis speed that slows the up and down motion closer to the PCB to reduce impact with the PCB. This is especially beneficial for flexible PCBs with large warping.
High-speed production
The RX-7R has best in class placement rate of 75,000 CPH (optimum conditions).
Compact machine design
The RX-7R is extremely compact and has an overall width of 998 mm.
Wide component range
The P16S head is compatible with very small parts from 0.3mm x 0.15mm up to 5mm square and height up to 3mm.
The optional P8 head supports components from 0.6mm x 0.3mm up to 25mm square and height up to 10.5mm.
| High -Speed Compact Modular Mounter JUKI RX-7R | ||||
| (P16S×P16S head) | (P16S×P8 head) | (P8×P8 head) | ||
| Board size | Single lane conveyer | 50×50~510mm×450mm | ||
| Single lane conveyer | 50×50~510mm×450mm | |||
| Single lane mode | ||||
| Single lane conveyer | 50×50~510mm×250mm | |||
| Dual lane mode | ||||
| Component height | 3mm | 3mm(P16S head) | 10.5mm | |
| 10.5mm(P8 head) | ||||
| Component size | 03015~5mm | 03015~5mm(P16S head) | 0603~25mm | |
| 0603~25mm(P8 head) | ||||
| Placement speed(Optimum) | Chip | 75,000 | 54,900 CPH | 34,800 CPH |
| IC | - | 6,400 CPH | 12,800 CPH | |
| Placement accuracy | Chip | ±0.04mm(Cpk≥1) | ||
| IC | - | ±0.04mm | ||
| Feeder capacity | Up to 56 | |||
| Power supply | 3 phase AC200V,220V-430V | |||
| Apparent power | 2.3kVA | |||
| Operating air pressure | 0.5±0.05MPa | |||
| Air consumption (standard) | 20L/ANR(during normal operation) | |||
| Machine dimensions (W x D x H) | 998×1,895×1,530mm | 998×1,895×1,530mm | ||
| Mass (approximately) | about 1,820kg | |||
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
