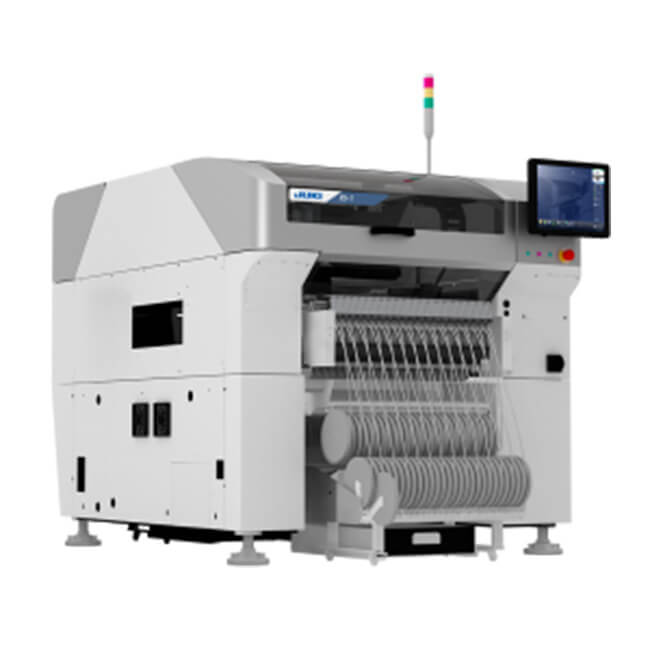

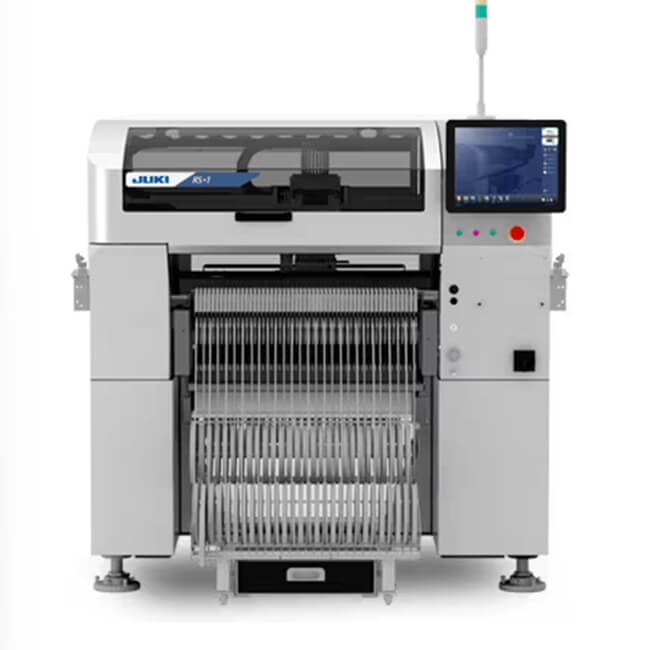

JUKI RS-1 Pick and place machine

Placing Speed: 40,000CPH
Component Size: 0201 ~ 74 mm / 50 × 150 mm
Applicable PCB : max. 650 mm × 370 mm (single clamping)
Accuracy: ±35μm(Cpk≥1)

BASIC INFO

JUKI RS-1 Pick and place machine

No head replacement, newly developed “Parallel 8 nozzle head” with auto-height component recognition sensor

Automatically adjust the component recognition sensor of the mounter head from 1 to 25 mm in 5 stages according to the PCB requirements. High productivity is achieved without replacing the placement head, even for parts with different heights, from very small parts to large parts.

High placement capacity of 40,000 CPH

The distance between the pickup and placement positions is shortened by adopting the new RF series electric feeder. Additional improvement is achieved by optimization of the component pickup / mounting operation. This results in a class leading maximum tact time of 40,000CPH (under optimum conditions).

Extensive component compatibility

Components from 0.2 mm × 0.1 mm to 74 mm square, 50 mm × 150 mm, and the height of parts up to 25 mm can be mounted. Component range and placement speed have been improved by changing the image recognition to four-part simultaneous recognition and using high-speed motors on the θ (theta) axis of the nozzle. In addition, we adopted a new electric feeder that is smaller, lighter, and thinner. The feeder capacity has been increased to 112 per RS-1 to improve capability of a single machine solution.

Implementation of smart mounting process
