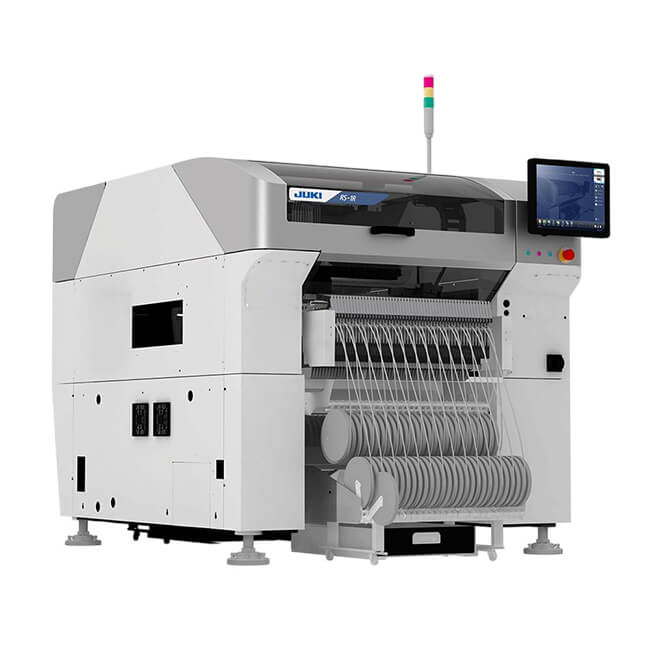

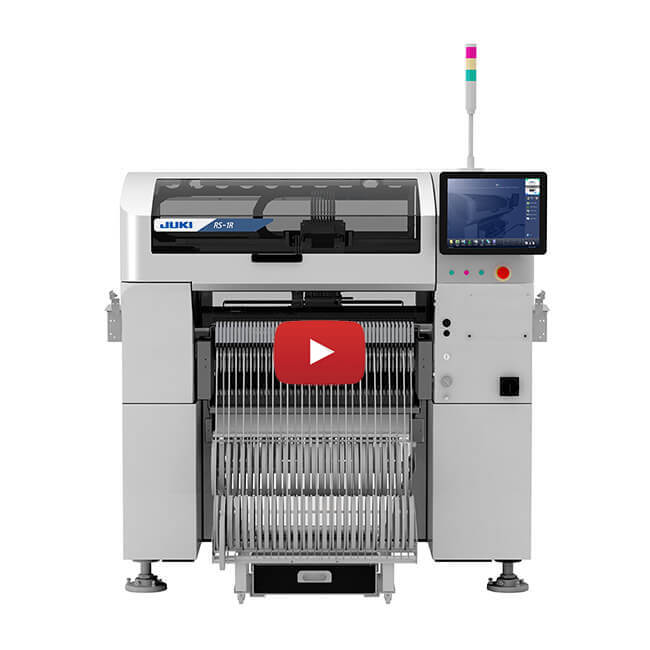

JUKI RS-1R Pick and place machine
- Class leading speed, up to 47,000 cph
- Newly developed “Takumi Head” with changing recognition sensor height
- Optimum line balance and highest throughput
- Wide component range from 0201 (metric) to large connectors and ICs
- Optimal for LED placement
| Fast Smart Modular Mounter | |||||
| Model | RS-1R | ||||
| Conveyor specification | standard | 150mm conveyor extensions, | 250mm conveyor extensions, | ||
| upstream and downstream | upstream and downstream | ||||
| Board size | minimum | 50×50㎜ | |||
| maximum | 1 buffer | 650×370 ㎜ （Single clamping） | |||
| 950×370 ㎜ （double clamping） | 1,100×370 ㎜ （double clamping） | 1,200×370 ㎜ （double clamping） | |||
| 3 buffers | 360×370㎜ | 500×370㎜ | 600×370㎜ | ||
| Component height | 25㎜ | ||||
| Component size | 0201*1 ～□74 ㎜ /150×50 ㎜ | ||||
| Placement speed | Optimum | 47,000CPH | |||
| IPC9850 | 31,000CPH | ||||
| Placement accuracy | ±35μｍ（Cpk≧1） | ||||
| Feeder inputs | max.112*2 | ||||
| Power supply | AC200 ～ 415V*3 3-phases | ||||
| Apparent power | 2.2kVA | ||||
| Operating air pressure | 0.5±0.05MPa | ||||
| Air consumption | 200L/min for internal vacuum generator, 50 l/min with optional vacuum pump | ||||
| Machine dimensions (W×D×H)*4 | 1,500 × 1,810 × 1,440mm | 1,800 × 1,810 × 1,440mm | 2,000 × 1,810 × 1,440mm | ||
| Body weight | 1,700kg | ||||
*2 Using RF(RF08AS) feeders
*3 A transformer unit (option) is necessary except AC 200 V.
*4 D dimension does not include the front operation monitor. H dimension does not include signal tower.
