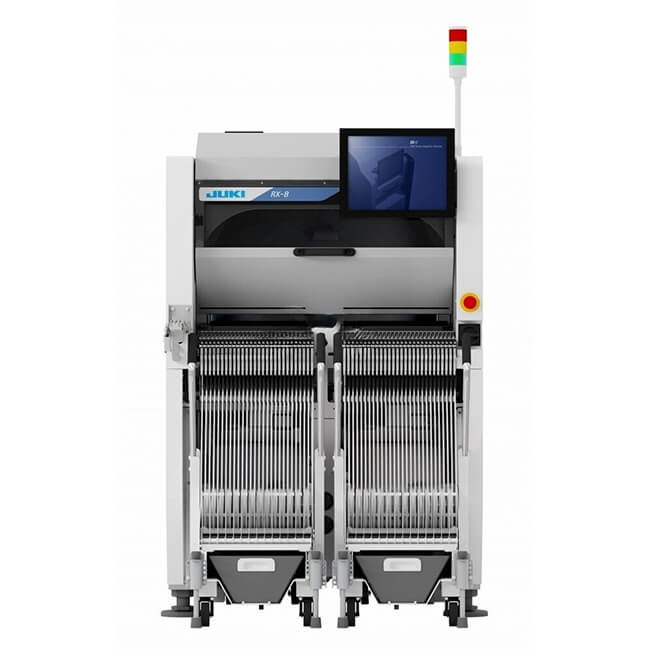

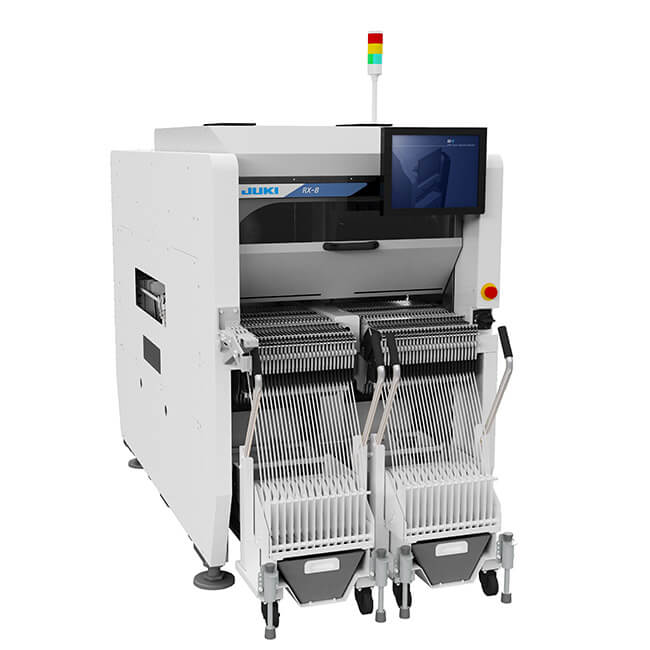

JUKI RX-8 Pick and place machine

Placement Speed : 100,000 CPH
Applicable PCB : 510(L) x 450(W)
Applicable Part : 0201 ~ □ 5mm
Accuracy: ±40μm(Cpk ≧1)

BASIC INFO

JUKI RX-8 Pick and place machine

High-speed placements of up to 100,000 CPH.*¹
Best-in-class placement rate per square meter(sq ft).*²
Integrates seamlessly with the production enviroment
Trace Monitor tracks quality throughout production process
Low impact placement for flexible circuits
The P20 high-precision planet head is ideal for high speed pocking and placing from a single reel.
State-of-the-art centering and inspection vision system
New high accuracy camera for inspection and centering

High -Speed Compact Modular Mounter RX-8
Board size		50×50～510mm¹ ²×450mm
Component height		3mm
Component size		0201*³～□5mm
Placement speed	Chip	100,000CPH
(Optimum）
Placement		±40μm (Cpk ≧1)
Accuracy
Feeder capacity		Upto 56 *⁴
Power supply		3-phase AC200V, 220V 430V *⁵
Apparent power		2.1kVA
Operating air pressure		0.5±0.05MPa
Air consumption (standard)		20L/ min ANR (during normal operation)
Machine dimensions (W x D x H)*⁶		998mm×1,893mm×1,530mm
Mass (approximately)		1,810 kg (with fixed bank)/ 1,760 kg (with bank changing)

*1 BOC, Bad Mark, and 2D barcode can be read only if board length is from 50mm to 350mm
*2 In long board mode (two boards can be produced simultaneously up to 420mm long).
*3 Please contact JUKI for details.
*4 When using RF08AS
*5 220V – 430V requires a separate transformer
*6 Depth D does not include the monitor, and height H does not include the signal light when the conveyor height is 900 mm.
