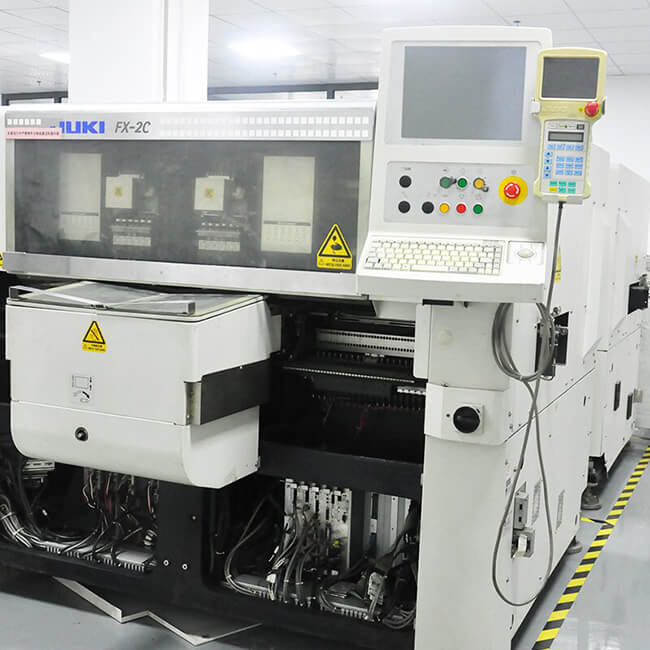

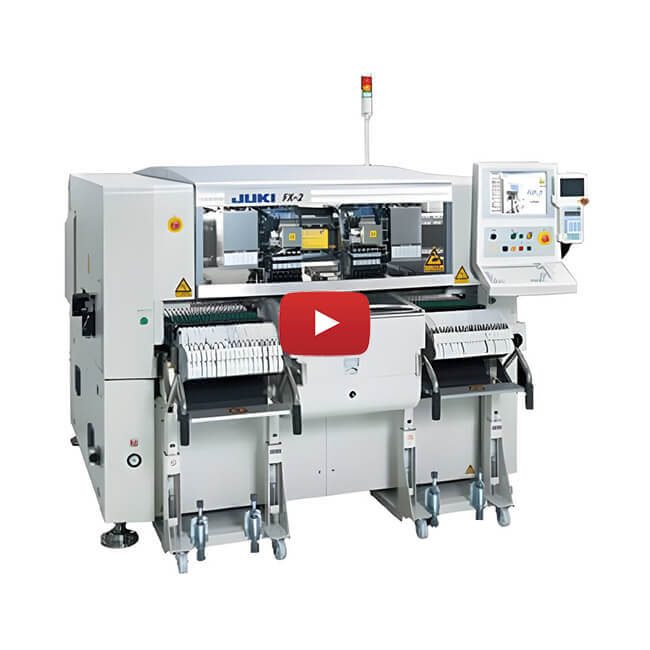

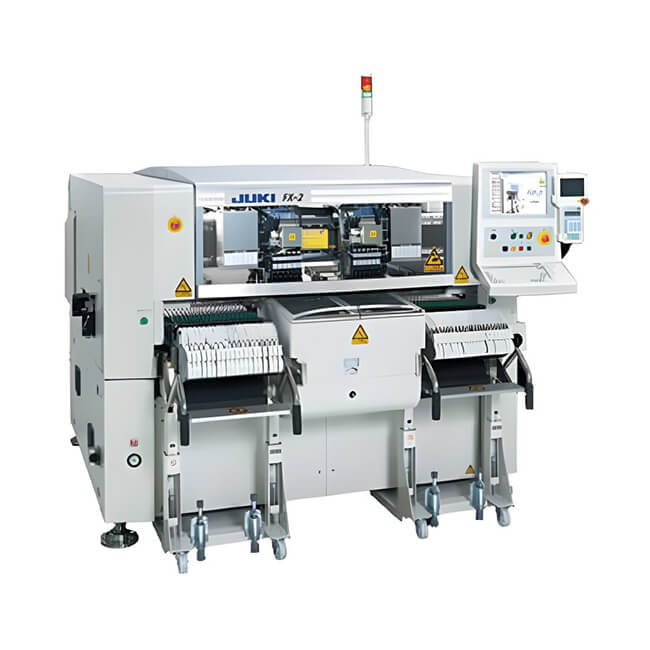

JUKI FX-2 FX-2C Pick and place machine
The structure of the new type suction nozzle 6 x 2 head appeared Mount speed by 20%. * 1
SMT efficiency increased by 20%, * 1 make economic benefits at the same time, operating performance, reliability, to the next level of high-speed modular SMT machine.
S 40000 CPH (best conditions) * 2 (0.09 seconds/chip)
30000 CPH (IPC9850) * 2
S * 2 laser head suction nozzle (12)
0402 (01005) inch chip ~ s element size of 33.5 mm square element
* 1 model compared with our company before
* 2 mount speed change according to different conditions
Substrate size L substrates (410 x 360 mm)
Component height of 6 mm specification
Element (01005) inch chip size 0402 ~ 33.5 mm components
Components SMT chip speed precision components best conditions 0.09 seconds/chip (40000 CPH)
IPC9850 30000 CPH
Component placement speed (chip components) + / - 0.05 mm (+ / - 3 sigma)
Element SMT type (converted to 8 mm band) up to 80 kinds
| JUKI FX-2 parameters |
| High Speed Modular Mounter FX-1R |
| Application Industry: Electronics |
| Advanced linear motor and unique HI-Drive mechanism for high-speed placement |
| It not only inherits the traditional concept of modular placement machine, but also realizes high-speed placement. Reasonably adjust each part to improve the actual placement speed. |
| ■ 33,000 CPH: Chip (Best Condition) / 25,000 CPH: Chip (IPC 9850) |
| ■ Laser patch head × 2 (8 nozzles) |
| ■ 0603 (Inch 0201) chip ~ 20mm square component, or 26.5 × 11mm |
| ※ There are differences when the placement speed conditions are different |
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
