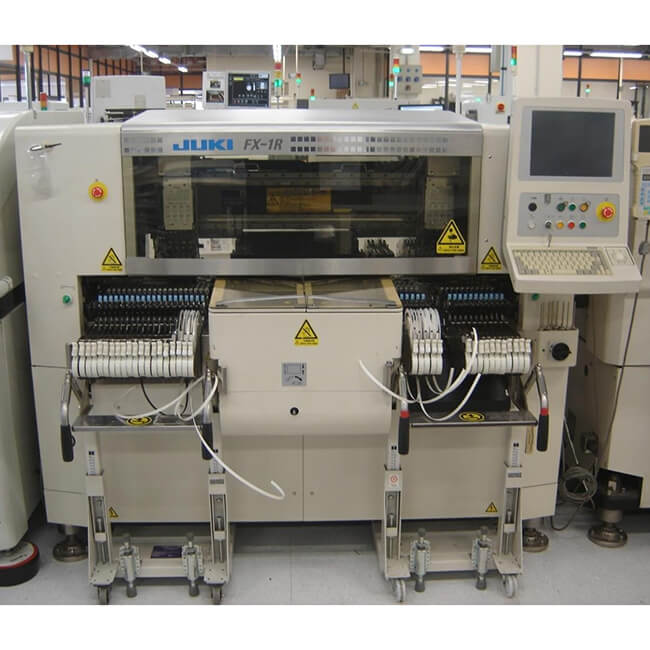

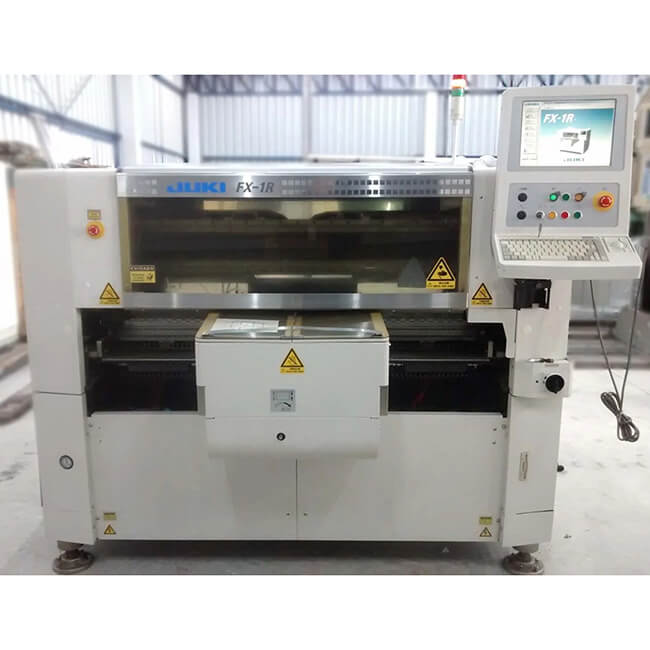

JUKI FX-1 FX-1R Pick and place machine
FX-1R is a traditional modular chip Mounter driven at extreme speeds. Refinements in the drive system
deliver real world improvements in actual throughput.
33,000CPH?chip (optimal) / 25,000CPH: chip (IPC 9850)
Two independent multi-nozzle laser heads (8 total nozzles)
from 0603 0201 to 20mm square components or 26.5×11mm
0402 (01005) option factory installed.
1 Actual throughput may vary.
2 Please download brochure for details.
|
Board size |
L size (410×360mm) |
|
|
Component size |
Laser recognition |
0603 (0201) 20mm or 26.5×11mm*1 |
|
Placement speed |
Chip |
33,000CPH*2 optimum condition? |
|
|
|
25,000CPH IPC9850 |
|
Placement accuracy |
Laser recognition |
±0.05mm |
|
feeder inputs |
Max. 80 on 8mm T/F |
|
*10402 (01005) option factory installed.
*2CPH number of components placed for one hour.
Board size: 410*360mm
Air pressure: 0.5±0.05mpa
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
