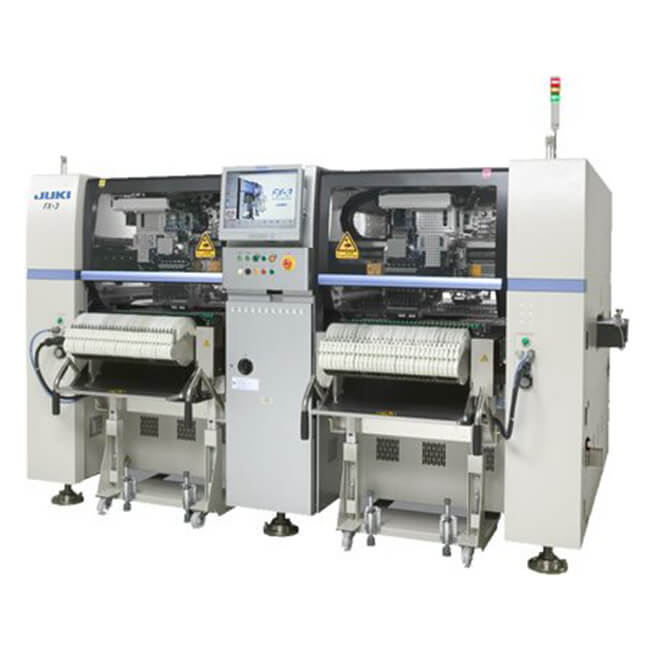

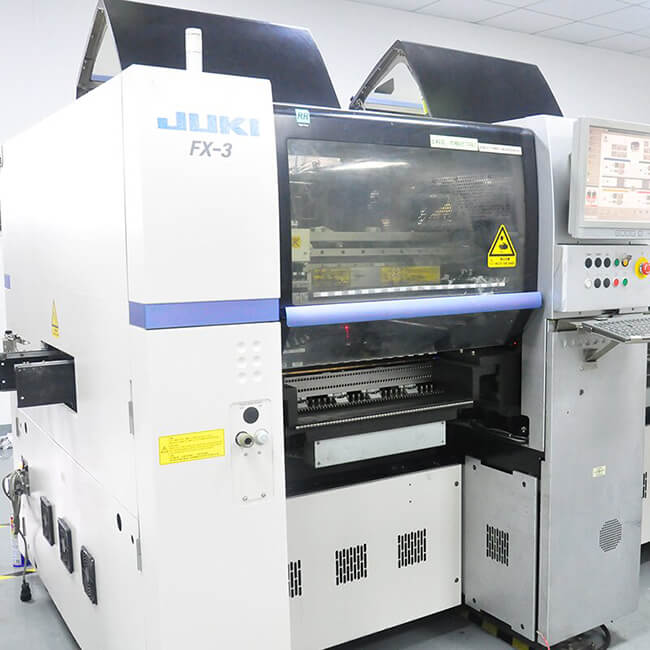

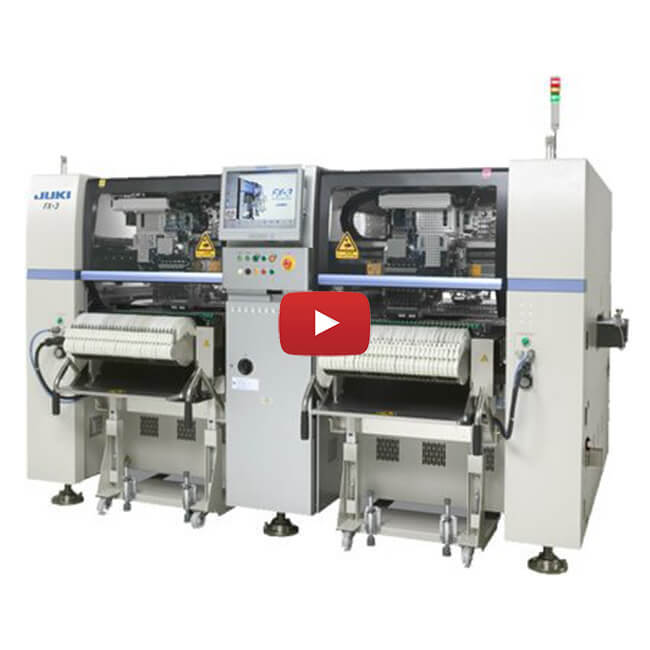

JUKI FX-3 Pick and place machine
Improvements in Productivity
The FX-3 incorporates 2 stations, 4 beams, 4 heads, and 24 nozzles. Each head at each station is mounted on an independent beam so one head can pick components while the other is placing.The XY drive system uses linear servo motorswhich combine outstanding flexibility with high accuracy to achieve an optimum throughput of 0.049 seconds/chip (74,000CPH) and 60,000CPH per IPC9850 standards.
Outstanding Area Productivity
With a depth of 1,650mm, the FX-3 offers the best footprint of any high-speed modular mounter, allowing installation of more lines in factories with limited floor space.
Compared with the previous machine (FX-1), the FX3 has approximately 1.8 times greater space efficiency.
Mounting Quality that Supports High Density Mounting
High placement accuracy and repeatability is possible thanks to the stationary position of the circuit board during production.
For the component centering, laser recognition is utilized, offering higher resolution than in image recognition. A laser sensor is incorporated into each head and because the centering is performed while moving between the pickup and placement, it is possible to achieve high-speed, high-accuracy component placement. Tombstone check and component release check can also be performed on-the-fly.
Model Interchangeability
Tape feeder capacity has been increased to 120, allowing a wider range of circuit boards to be produced.
Component Specifications
Placement of components from 0402 chips to 33.5mm square is possible on the FX3.
Cost-performance
Compatibility is maintained with previous equipment such as tape feeders, nozzles, and line control software, reducing the cost of adding an FX3 to any factory that already has other ＪＵＫＩ machines.
Operability
Using the large-sized LCD display with touch panel operators can easily operate and maintain the FX3.
It is possible to switch between Japanese, Chinese and English language displays using single—button operation.
| odel name | High-speed Modular Mounter | High-speed Modular Mounter | |
| FX-3 | FX-1R(Conventional model kind) | ||
| Placement speed (chip) | Optimum | 0.049Sec./chip(74,000CPH) | 33,000CPH*2 （optimum condition） |
| IPC9850 | 60,000 CPH | 25,000 CPH | |
| Component size | 0402(01005) ～□33.5mm (or diagonal length up to 47mm) | 0603 (0201)～□20mm or 26.5×11mm*1 | |
| Placement accuracy | ±0.05 mm （cpk≧1） | ±0.05 mm | |
| Feeder inputs | Max. 120 on 8mm T/F | Max. 80 on 8mm T/F | |
| Board size | 410×360 mm（max） | 410×360 mm（max） | |
| 50×50 mm（min） | 50×30 mm（min） | ||
| （L-Wide size : 510x360mm is optional） | |||
| Mass (approximately) | 3,280 kg | 2,000 kg | |
| Machine Dimensions | Width | 2,650 mm | 1,880 mm |
| Depth | 1,650 mm | 1,731 mm | |
| Hight | 1,530 mm | 1,490 mm | |
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
