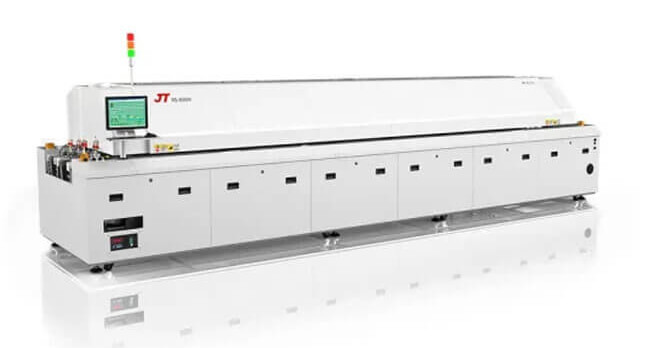

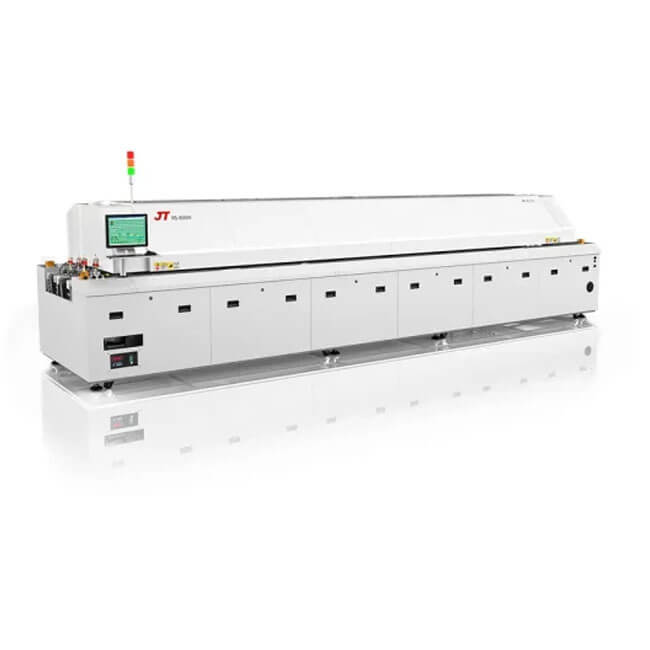

JT RS-600III SMT Lead Free Reflow Oven
RS Series Lead Free Hot Air Reflow Oven
● Independent Air Velocity Controlling by section can achieve flexibleprocessing adjustment, therefore dealing with various & complicated Lead Free Processing easily;
● New Cooling Configuration to make the filteredor reclaimed air back to oven chamber, it reduced the thermal loss as well as get better flux reclamation;
● Longer maintenanceperiod for oven chamber;
●New Air Management System withsignificant energy save, lower electric power consumption & lower carbon;
● The chambers with multi-layers and thicker thermalinsulation to attain the lower temp. of oven surface.
● 95 % Materials of Reflow Oven can be recycled.
Description
| as JT provided : S = Standard, O = Option | |
| MODEL | RS-1200III / RS-1200III-N |
| GENERAL | |
| Outside Dimension(L*W*H) | 7050 x 1430 x 1530mm |
| Weight | Approx.3000KG / 3100KG |
| Number Of Heating Zones | Up 12 / Bottom 12 |
| Length Of Heating Zones | 4640mm |
| Number Of Cooling Zones | Up 3 / Bottom 3 ( Cool Air Conversion) |
| Exhaust Volume | 10 M3 / min x 2 (Exhausts) |
| Control System | |
| Electric Supply Required | 3 phase, 380V 50/60Hz (Optional: 3 phase, 220V 50/60Hz ) |
| Electric Power Required | 93KW / 97KW |
| Power For Warm Up | 40KW / 42KW |
| Power Consumption | 11KW / 12KW |
| Warming Time | 约 Approx. 25 minute |
| Temp. Setting Range | Room Temp. — 300℃ |
| Temperature Control Method | PID Close Loop Control + SSR Driving |
| Temperature Control Precision | ± 1.0℃ |
| Temperature Deviation on PCB | ± 1.5℃ (by JT Board Test Standard) |
| Commutated Element | Aluminium Alloy Plate |
| Data Storage | Various prameters and status are storable |
| Abnormal Alarm | Abnormal Temperature (Extra-high / Extra-low Temp.) |
| Board Dropped Alarm | Tower Light: Yellow–Warming; Green-Normal; Red-Abnormal |
| Conveyor System | |
| Rail Structure | Subsection Integrated Type (Option ： Subsection Separate Control) |
| Max.Width Of PCB | 400mm ( Option: 460mm ) |
| Range Of Rail Width/Adjustment | 50–400mm/ Motorized |
| Components Clearance | PCB Top 30 / Bottom 25mm |
| Converyor Direction | L→R ( Option: R→L) |
| Fixed Rail Side | Front Rail Fixed (Option:Rear Rail Fixed) |
| PCB Transmission Agent | Air-Reflow = Chain + Mesh , |
| (N2-Reflow = Chain only and Mesh optional) | |
| Converyor Height | 900±20mm |
| Converyor Speed Range | 300～2000mm/min |
| Lubrication Auto-Afflux | Standard |
| Cooling System | |
| Cooling Method | Standard：Forced-Air Type |
