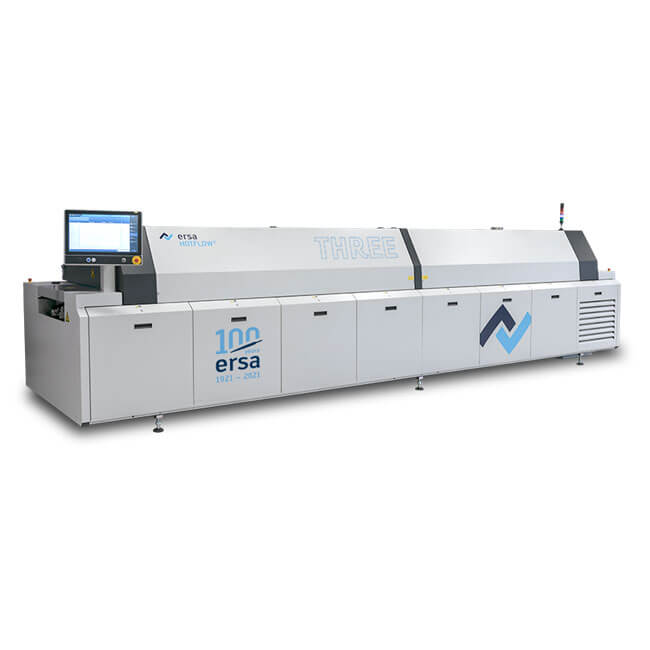

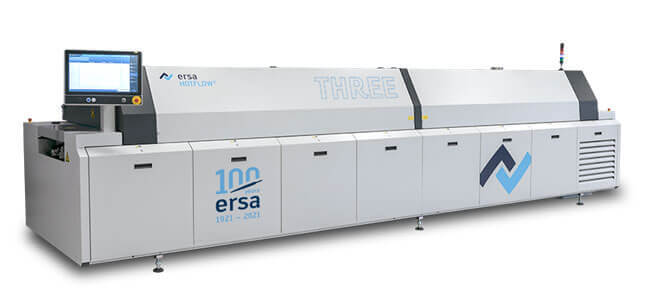

ERSA HOTFLOW THREE Reflow Soldering Oven

Conveyor speed:20 – 200 cm/min
Power tolerance range:±10 %
Frequency:50/60 Hz
Weight (incl. options):approx. 3,200 kg

BASIC INFO

ERSA HOTFLOW THREE Reflow Soldering Oven

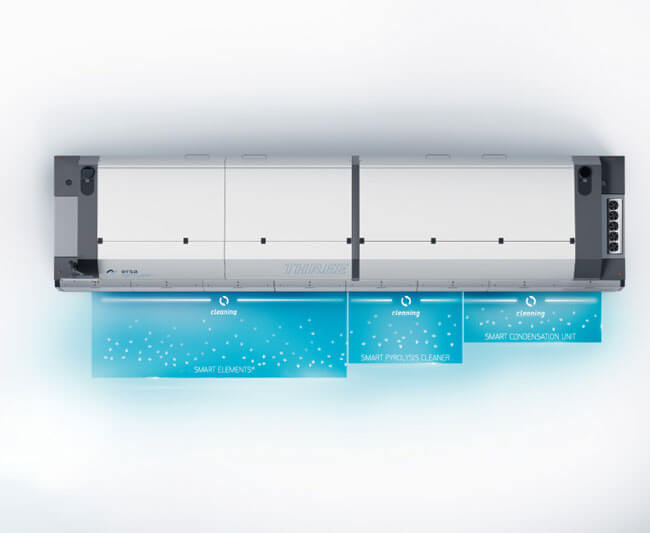

HOTFLOW THREE: the best reflow performance in every respect: Quality. Efficiency. Flexibility. Connectivity. Cleaning. It runs and runs and runs and sets the benchmark for reflow soldering with 12 weeks and more of non-stop operation without maintenance intervals. This is made possible by the patented three-stage Ersa SMART CLEANING system consisting of the new SMART ELEMENTS® filter system, the SMART PYROLYSIS CLEANER in the peak zone and the SMART CONDENSATION UNIT in the cooling zone.

HOTFLOW THREE: A new Era in Reflow Soldering

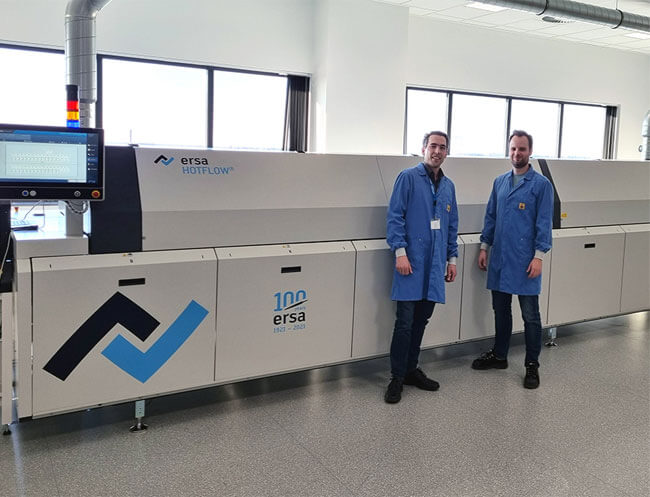

Prodrive Technologies from the Netherlands is expanding its production capacity with a state-of-the-art SMD line - an Ersa HOTFLOW THREE reflow soldering system.

HOTFLOW THREE: Runs and runs and runs ...

Inspiring machine uptimes (OEE) thanks to the 3-stage Ersa SMART CLEANING system with perfect accessibility.

Features:

less maintenance

increased Overall Equipment Effectiveness

higher throughput and performance

fast cooling/profile change

HOTFLOW THREE: Highest soldering quality!

The new, unique SMART CONVECTION POWER UNIT (SCPU®) enables previously unattained soldering quality. The perfectly tuned motor control operates highly efficiently and reduces energy consumption.

Features:

Benchmark in reflow soldering

higher performance

reduced energy consumption

sustainable manufacturing

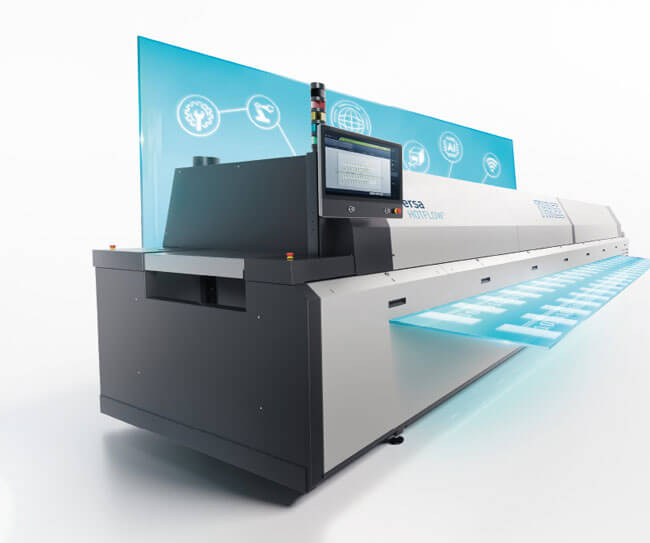

HOTFLOW THREE: Future-proof user interface for precise Industry 4.0 data

With excellent and convenient software for intuitive operation and accurate process data acquisition.

Features:

maximum user-friendliness

user-friendly industrial PC with touch screen

easy MES connection thanks to standard interfaces

real-time data due to standardization

traceability (process information)

HOTFLOW THREE: Flexibility to fit your needs

With a wide range of configurations and equipment options, the HOTFLOW THREE always
fits your requirements.

Features:

flexible transport system

Nitrogen flexibility

Even more quality in soldering

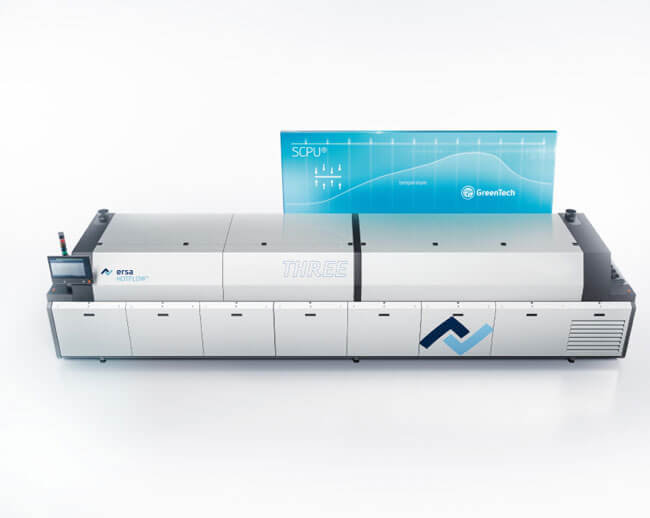

With the HOTFLOW THREE, Ersa is making a clear statement for even more quality in soldering. An absolutely unique feature: the SMART CONVECTION POWER UNIT (SCPU®). The exclusively developed motor and control unit ensures an optimized soldering profile and thus even better soldering results. Individual zones can be controlled individually, enabling perfect adaptation to the requirements of the material and solder paste.

Variable transport system

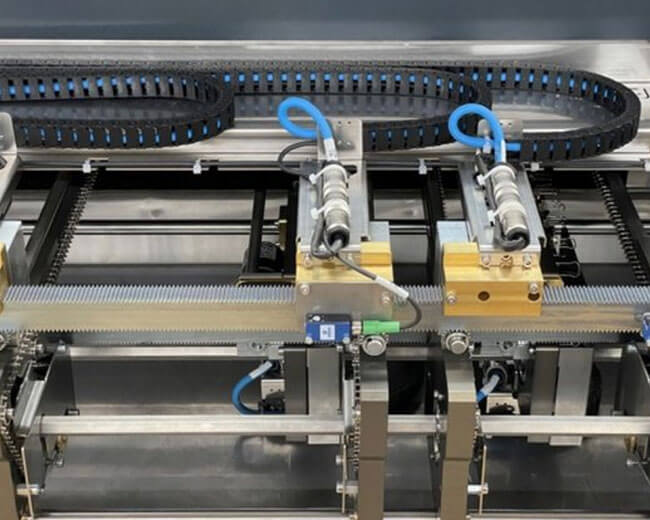

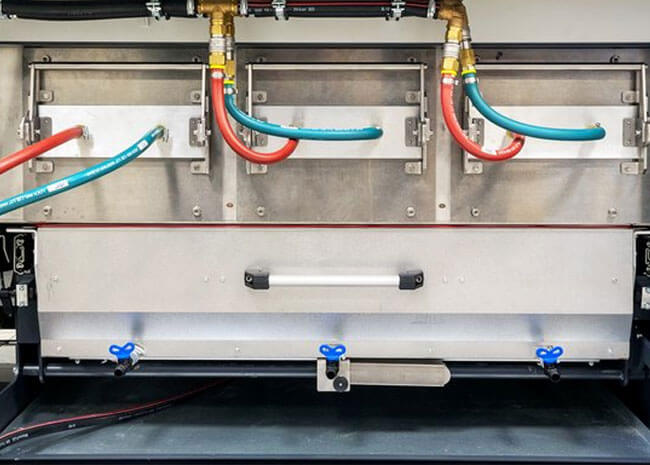

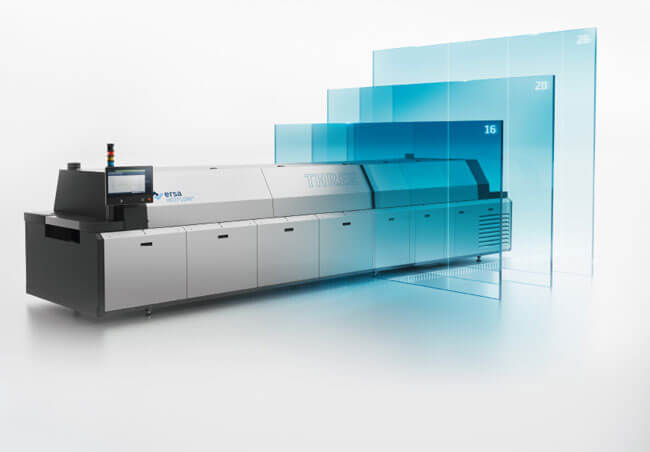

The HOTFLOW THREE, available with 16, 20 or 26 heating zones, offers single-track and variable dual-track systems for transporting boards up to 650 mm wide (single track) or up to 2x 300 mm or 510 mm wide (dual track). All versions feature center support, which can be optionally activated or deactivated. The HOTFLOW THREE is also convincing when it comes to maintenance - service for the cooling zone and cleaning of the filter systems is simply carried out via the front.

Intuitive User Interface

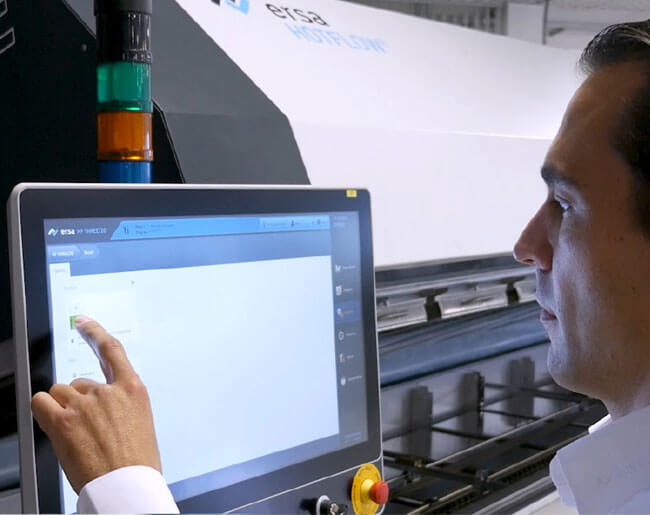

The HOTFLOW THREE is easy to operate! Its industrial PC with touch screen and intuitive ERSASOFT 5 make soldering program creation and management extremely convenient and future-proof. Through the new, exclusively developed SMART CONVECTION POWER UNIT motor and control unit, the HOTFLOW THREE provides accurate process data from each individual zone.
