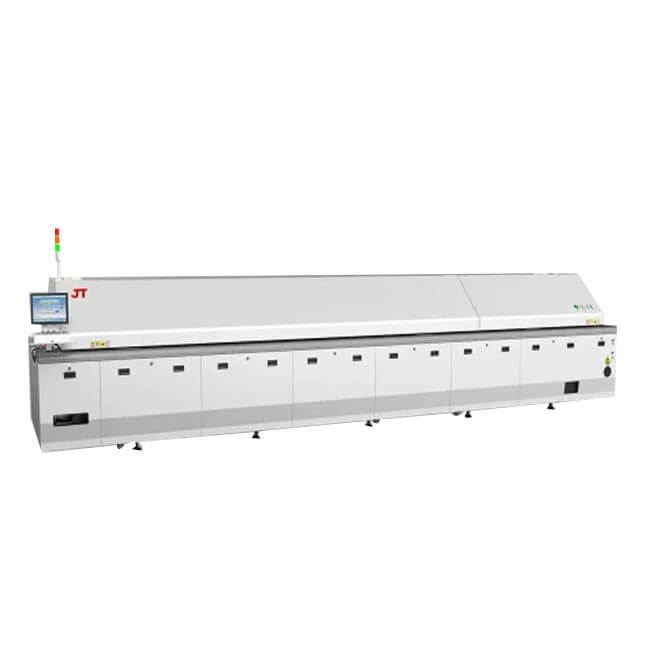

JT CFO-0804 SMT Lead-Free Reflow Oven
CFO Series High-End Lead-Free Hot Air Reflow Oven
● High capacity, normal working conveyor speed reached 160cm/min. Low energy consumption,low cost. Special for the high-speed production and high density PCBA technology;
● Powerful temperature control, setting and actual temperature difference within 1.0℃, unloadand load temperature fluctuates within 1.5°C; Rapid temperature raising ability, temperature difference between neighboring zone 100°c;
● The newest insulation technique and new chamber design ensured that surface temperature isroom temperature +5°C;
● N volume controllable in whole process,O density closed-loop controlled independently at 50-200ppm in every zone;
● The newest cooling technology, optional double side multi-cooling zone, the effective coolinglength is 1400mm, make sure fast cooling of the product to the lowest output temperature;
● New two level flux separation system with multi-point collection which make separationthoroughly, so that the maintenance time and frequency was reduced significantly;
● Dual line in different speed, one set cost, double capacity, energy saving 65%.
Description
| Model | CFO-0804 |
| Dimensions (L×W×H) | 5900x1495x1630mm |
| Standard Color | Computer Grey |
| Net Weight | Approx. 2800KG/2950KG |
| Electric Supply | AC380V3Φ5W 50/60Hz (Optional:AC,220VΦ3 50/60Hz) |
| Electric Power | 65KW |
| Power For Starting | 30KW |
| Power Consumption | 7.5KW |
| Components Clearance | Top 30mm |
| Model | KTD-0804 |
| Dimensions (L×W×H) | 5900x1725x1630mm |
| Standard Color | Computer Grey |
| Net Weight | Approx.3150KG |
| Electric Supply | AC,380V 3Φ 5W 50/60Hz (Optional:AC,220V3Φ) |
| Electric Power | 71KW |
| Power For Starting | 33KW |
| Power Consumption | 9KW |
| Components Clearance | Top 30mm |
| Model | KTS-0804L |
| Dimensions (L×W×H) | 5900x1725x1630mm |
| Standard Color | Computer Grey |
| Net Weight | Approx.3100KG |
| Electric Supply | AC,380V 3Φ5W50/60Hz (Optional: AC,220V 50/60Hz) |
| Electric Power | 71KW |
| Power For Starting | 32KW |
| Power Consumption | 8KW |
| Components Clearance | Top 30mm |
| The above contents are subject to change without further notice! | |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
