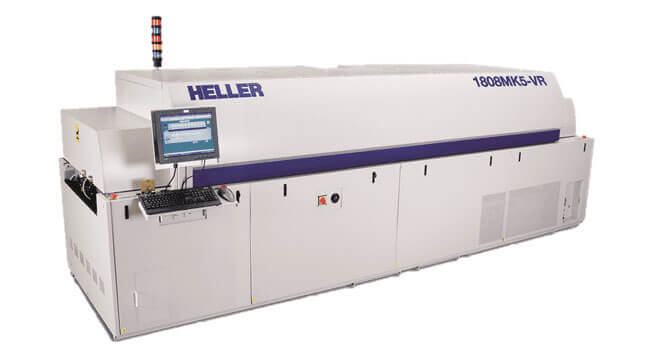

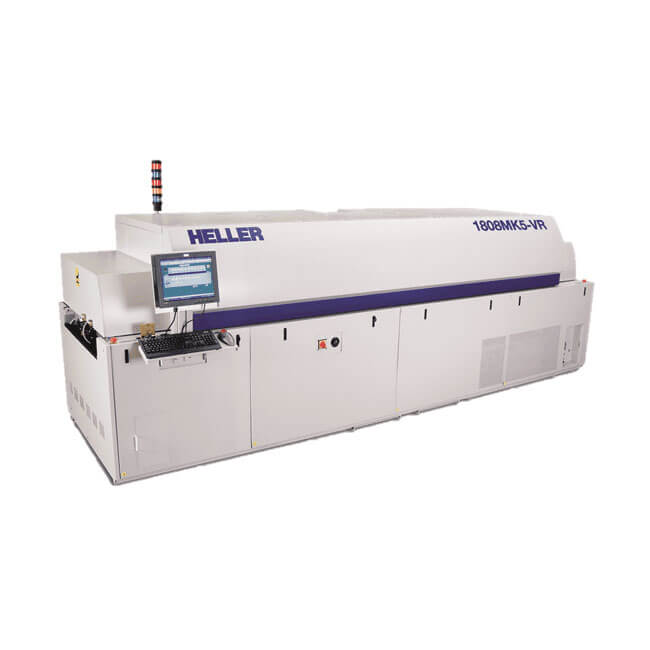

HELLER 1808MK5-VR Reflow Soldering Machine
The 1808MK5-VR consists of 7 convection zones and 3 IR zones providing 273cm (107”) in heated length with minimal floor space. Rapid response times and precise temperature controls assure process uniformity, regardless of component density or board loading, with identical profile performance in either air or nitrogen.
| Oven Length | 465cm |
| Process Gas Options | Air, Nitrogen, Formic Acid, forming gas |
| Heated Zones | Convection: 7 Top / 7 Bottom IR: 3 Top |
| Heated Length (Convection/Total) | 174 cm / 273 cm |
| Cool Zones | 2 Top (Bottom Option) |
| Max Working Temperature (Convection / IR) | Standard: 350°C / 400°C, Option: 400°C / 480°C |
| Min Vacuum | Standard: 10 Torr Option: < 10 Torr |
| Max Board Size | 500mm (L) x 450mm (W) x 29mm (H) |
| Cleanroom Option | Down to Class 1000 |
