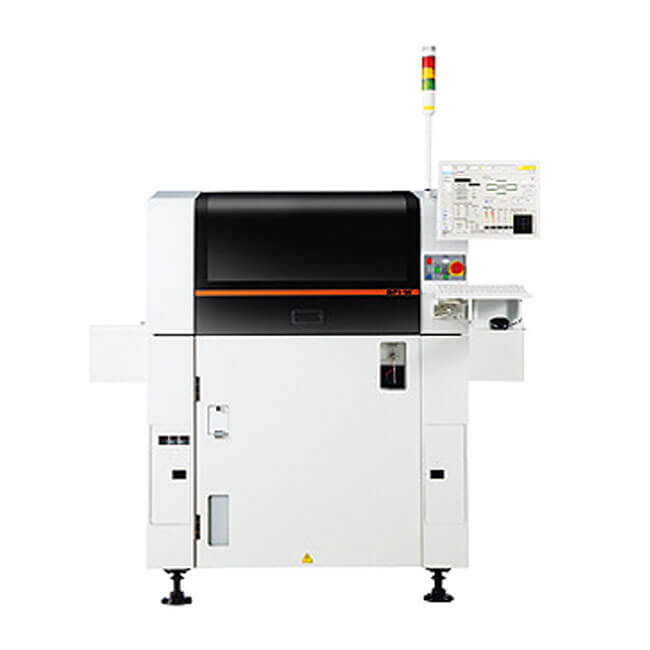

Hanwha SP1-W Solder paste printer
Provides the highest productivity as well as 6 SIGMA level high quality printing.
6 sigma level of high quality printing
· Corrects print offset automatically by feeding back defective SPI printing
· Support for Mixed Production
Features
Flexible Production
Increases the Availability to PCB
Possible to use PCBs of Max. L510mm x W460mm with a single lane.
High Productivity
Support for Mixed Production
Allows high speed mixed production by connecting two printers in series when applying the dual lane conveyor (bypass).
Convenience
Stage Auto Leveling
Sets the printing height automatically using the SQG head height measurement sensor
Easy Operation
Increased User Convenience
Operational convenience is maximized by monitoring a variety of information about production.
Specifications
| SP1-W | ||
| Alignment Repeatability | ±12.5um @μ+6σ | |
| Wet Print | ±25um @μ+6σ | |
| Cycle Time | 7sec (Excl. Printing Time) | |
| Board Handling | ||
| Max.Size (mm) | L510 × W460 (Single Lane) | |
| L330 × W310 | ||
| (Dual Lane/Option) | ||
| Min.Size (mm) | L50 × W50 | |
| Thickness (mm) | 0.4 ~ 5.0 | |
| Max.Weight (kg) | 3 | |
| Stencil | ||
| Min.Size (mm) | L550 × W650 | |
| L650 × W550 | ||
| Max.Size (mm) | L736 × W736 | |
| Frame Thickness (mm) | 30 ~ 40 | |
| Matching | Center Standard | |
| Vision | ||
| Function | Fiducial Recognition, Inspection | |
| FOV (mm) | 10.6 × 8.0 | |
| Fiducial Types | ●, ▲, ■, ◆, ＋ | |
| Fiducial Size (mm) | 0.5 ~ 4.0 | |
| Operator Interface | ||
| Hard Ware | LCD Monitor, Mouse & | |
| Keyboard | ||
| Software Operating System | Window XP Embedded | |
| Utility | ||
| Power Supply | 100/110/120/200/220/240V | |
| (±5%)Single Phase | ||
| Max.4.5kVA, 50/60Hz | ||
| Power Supply | Pressure 4.5~7.0kgf/cm2 | |
| Max. 600~700Nℓ/min | ||
| Mass | Approx. 1,620kg | |
| External Dimension (mm) | L1,540 × D1,650 × H1,921 | |
| Option List | ||
| SPI | Auto Cleaning | Standard |
| Auto Printing | Option | |
| Offset Control | ||
| Dual Lane Conveyor | Option | |
| (Bypass) | ||
| Dual Lane Conveyor | × | |
| (Conveyor In Common Use | ||
| at the Front and Rear) | ||
| Air Conditioner (External) | Option | |
| Fan Blower (Internal) | Option | |
| ASS (Auto Solder Supply) | Option | |
| Stage Auto Leveling | Standard | |
| PCB Temperature Sensor | Option | |
| Gerber Pad | Option | |
| Default PCB Program | Standard | |
| 2D Barcode Tracability | Option | |
