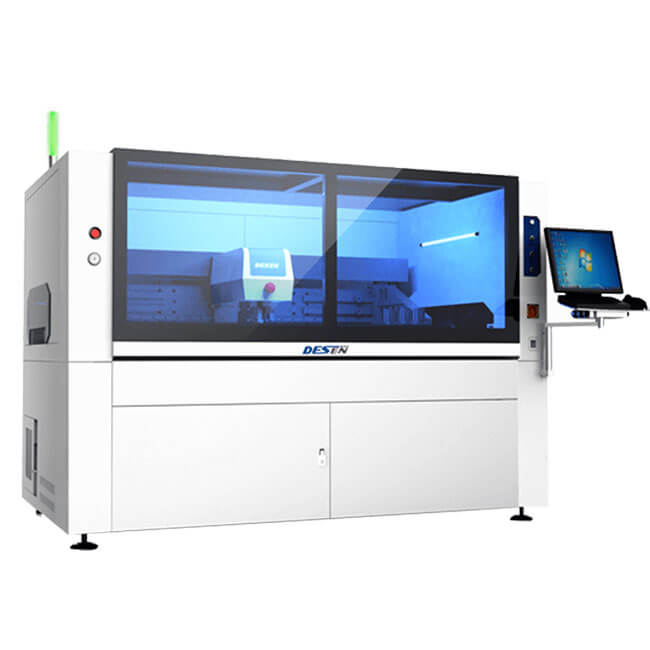

DESEN DGL-F Solder paste printer
Automatic platform calibration system
Integrated molding structure of the entire machine frame
Flexible side clamping system
Automatic multi-cleaning system for steel mesh
Classic second platform calibration
Capable for 5G,New Energy,Power Battery and New Display
Printing size:80*50mm-2000*510mm
Application Scenario
5G
Semiconductor
3C Products
Photovoltaic Products
New Display
Automotive Electronics
Medical Treatment
New Energy
Product Advanced Options
Solder Paste Monitoring SystemThe sensor will detect the diameter of solder paste remained under the front squeegee to remind the opreator to supply paste.
Automatic Supply Solder Paste
It's controlled by electricity and also capable for supplying the solder paste atfixed times.
Stencil Aperture Inspection
Stencil aperture inspection can be programmed to be carried out automaticallyto detect clogging on stencil opening, eliminate poor printing from the begining.
Automatic Dispensing Unit
Attached on CCD Camera XY axis, the dispenser provides basic function of gluedotting using syringe type dispensing needle after solder paste printing.
UPS
It will keep the power supply to PC for 10 minutes after power off to protect theproduction data.
Temperature&Humidity Control System
There are 3 options for this function:
T&H both are controlled.
Temperature control&Humidity detect.
T&H both detect and display.
Industry 4.0
Customize the different communications modes of customers to realizeintelligent operation management.
Product output and manufacturing data analysis and statistics in real-time.
Intelligent alarm & prompt system and processing solution.
Bar-code recognition.
Product Parameter
Parameters
Specification
Model
DGL-S
Screen Frame Size
737mm x 300mm ~ 2300mm x737mm
Substrate Handling Size (minimum)
80mm (X) x 50mm (Y)
Substrate Handling Size (maximum)
2000mm (X) x510mm (Y)
Cycle Time
12s
Screen Frame Thickness
20mm - 40mm
Substrate Thickness
0.4mm - 6mm
Print Pressure
0kg - 20kg
Print Speed
6mm/s-120mm/s
Print Gap
0mm - 20mm
Substrate Separation
Speed:0.1- 20mm/sec
Distance:0mm - 30mm
Apply paste option
Solder paste，Printing ink, Silver paste
Voltage
220Volts +/- 10%.Single phase 50/60Hz
