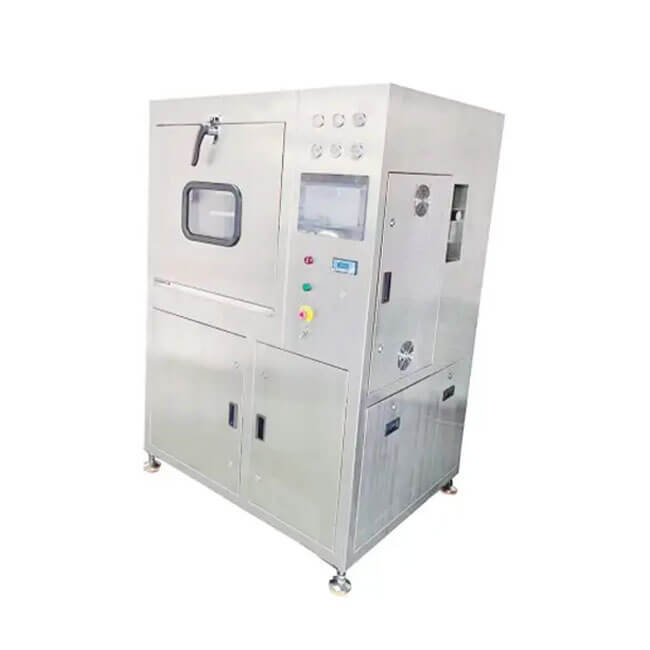

Full Automatic Off-Line PCBA Cleaning Machine QT-560

Machine Dimension:L1200*W1100*H 1780±30(mm)
Exhaust Port Size:Φ100mm（W)*30mm(H)
Cleaning Jet Pressure Range :0.3~0.6(Mpa)
Rinse Time:1~2 minutes/time, 1-10 times (set as required)

BASIC INFO

Full Automatic Off-Line PCBA Cleaning Machine QT-560

Short Description:

High quality off-line PCBA cleaning machine manufacturer

Cleaning Lumen size: L690*W620*H715(mm)

Clean Basket Size: L610*W560*H100(mm) double layer design

Machine Dimension: L1200*W1100*H 1780±30(mm)

Machine Weight: 400KG

Feature

1. Comprehensive cleaning system: thoroughly and effectively clean the organic and inorganic substances remaining on the surface of the product;

2. Fully automatic cleaning mode: complete the cleaning, rinsing and drying processes in one cleaning room, with small size and compact structure;

3. The most scientific nozzle design: the left and right incremental distribution is adopted to improve the cleaning efficiency; the upper and lower dislocation distribution completely solves the cleaning blind spot;

4. Adjustable nozzle pressure design: reduces the hidden danger of collision and splashing caused by small-sized products under high-pressure spray conditions during the cleaning process;

5. Standard dilution tank heating system: greatly improves the cleaning efficiency and shortens the cleaning time;

7. Large-size touch screen operation interface: using a stable and reliable color touch screen, different cleaning process parameters can be set according to different products, and the operation is easier;

8. High standard of cleanliness: the degree of ionic pollution fully complies with the Class III standard of IPC-610D (less than 1.56μg/cm², as the standard) and the Class I standard of the US military standard MIL28809;

9. Convenient cleaning agent proportioning method: it can be added manually, or it can automatically mix DI water and chemical liquid according to the set ratio (5%-25%);

Electronic control system

①The main control electric box is centrally controlled and placed on the machine operation surface, which is convenient for the operation control and maintenance of the machine.

②The machine is controlled by Mitsubishi PLC with touch screen automation software, which makes the operation more convenient.

③The alarm prompt and buzzer design ensure that the staff can accurately understand the operation status of the equipment. When the machine is abnormal, the buzzer will sound and the red light will flash.

④ There are door protection devices on the front and side of the machine to prevent danger caused by forgetting to close the door due to human factors.

⑤Heating temperature control adopts automatic PID and analog control algorithm, which can strictly control the temperature deviation, and the temperature rise and fall are more stable.

⑥In addition to the automatic temperature control device, the heating part is equipped with an over-temperature protection function to prevent damage to the machine in case of accidents.

⑦Each motor of the machine is equipped with overload protection function, which can effectively prevent equipment damage under abnormal conditions.

⑧ When a fault occurs, the machine will generate an alarm, and the fault information will be displayed in text on the computer screen at the same time, so as to timely

Learn about troubleshooting.

Specifications

Model	QT-560
Cleaning Lumen size	L690W620H715(mm)
Clean Basket Size	L610W560H100(mm) double layer design
Machine Dimension	L1200W1100H 1780±30(mm)
Machine Weight	400KG
Concentrate Tank Capacity	30L
Diluent Tank Capacity	70L
Rough Clean Time	3~8 minutes (reference)
Drying Time	20~30 minutes (reference)
Cavity Temperature Compensation Power	6KW
Solvent Tank Heater Power	9KW
Horizontal Spray Pump Power	5.5KW
Chemical Liquid Recovery And Filtration	5μm (filter tiny particles of pollutants such as solder paste, rosin, flux, etc.)
Gas Source	0.45-0.7Mpa
Power Supply	AC380V 3P,50/60HZ 27KW
Sprinkler System	Up and down 360-degree rotating spray cleaning
Exhaust Port Size	Φ100mm（W)*30mm(H)
Cleaning Jet Pressure Range	0.3~0.6(Mpa)
Spray Tank Capacity	17L-23L
Clean Basket Load	100KG
Rinse Time	1~2 minutes/time, 1-10 times (set as required)
Liquid Heating Temperature	〜75P
Hot Air Drying Temperature Room Temperature	〜99P
Drying Heater Power	6KW
Monitoring Range of Resistivity Meter	0~ 18MQ•cm
DI Water Discharge Filtration	5μm to filter tiny particles of pollutants such as solder paste, rosin, flux, etc.)
Inlet And Outlet	1 inch quick connect interface
3-Stage Filtration System	1st stage filter (filter impurities and labels) 2nd stage filter (filter small particles and solder paste) 3rd stage filter 5um (filter small particles and rosin)
Amount of cleaning	Calculated by PCBA board with size L200×W100×H20(mm), each batch can wash 100-160pcs
