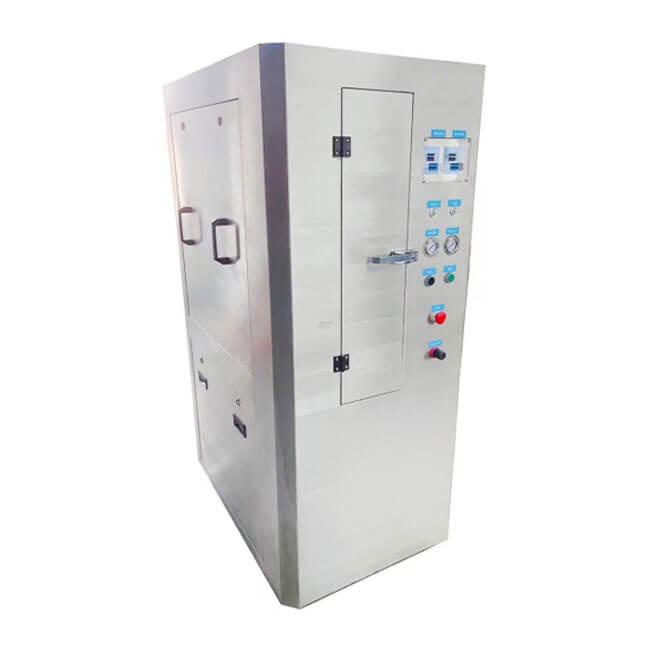

Full Pneumatic Stencil Cleaning Machine QT-PS750
For the cleaning of SMT steel mesh, copper mesh, wire mesh, microporous mesh and wafer disk in the electronics industry: The pneumatic cleanign equipment completely uses compressed air as energy, does not use electricity, does not have any fire hazards, and adopts human nature Modern design, one-button operation, easy to complete the cleaning and drying work; it is a high-performance pneumatic fully automatic cleaning equipment that uses air pressure to fully automatic operation from cleaning to drying process, and the cleaning liquid cycle consumption is low.
Feature:
1. All stainless steel body: beautiful, wear-resistant, corrosion-resistant, in line with environmental requirements and standards;
2. Fully pneumatic operation, no electricity, no safety hazards such as fire;
3. Side wall air intake and drying design;
4. Humanized design: one-button operation and automatic filling and discharging function, the operation is very simple;
5. Replaceable modular controller and quick-plug design, easy maintenance;
6. Two-stage filtration system, low exhaust outlet and S-shaped exhaust pipe design: solvent recycling, low liquid consumption;
7. High-density isobaric double-sided rotating cleaning nozzles, strong cleaning power, without damaging the tension of the steel mesh.
8. Systematic integration of global high-quality control devices to ensure high quality, stable performance and long service life;
Cleaning objects: steel mesh, copper mesh, mesh, micromesh and crystal disc, printing scraper, misprint plate.
Maintenance and maintenance:
1. Automatic adding and draining.
2. Controller maintenance: replaceable modular control and quick-plug design; Maintenance, maintenance is simple and convenient.
Specifications
| Model | QT-PS750 |
| Machine Dimension | 1000mm(L) *700mm(W) *1730mm(H) |
| Stencil Size | Max 750*750*40mm |
| Cleaning Quantity | 1 |
| Spray Pressure | 1.5-2KG (total pressure value) |
| Maximum Volume of Liquid Tank | 40L |
| Optimal Liquid Usage | 30L |
| Minimum Working Solution Volume | 15L |
| Number of Pumps | 1pc |
| Control/Operate System | Long-time timer (German brand Festool) |
| Cleaning System | Independent pneumatic diaphragm pump extracts solvent + 360°rotary double-sided isobaric jet roll high-pressure jet |
| Drying System | 360°rotary double-sided isobaric drying |
| Filtering System | Tertiary filtration |
| Level 1 Filtration: Filter impurities and labels | |
| 2-stage filtration: filter solder paste and rosin particles | |
| 3-stage filtration: 5μm particles such as solder paste, rosin, red glue and pollutants | |
| Cleaning Principle | Pneumatic diaphragm pump pumps cleaning agent through gas pressurization to spray and clean |
| Cleaning Method | The pneumatic diaphragm pump filters the cleaning agent and extracts it. The 360° rotating double-sided isobaric jet coil high-pressure sprays the fan-shaped water column to spray and clean the steel mesh and scraper, and remove solder paste, red glue, ink, resin and other dirt. |
| Machine Weight | 210KG |
| Equipment Fixtures | Equipped with special fixed casters |
| Equipment Material | 304 stainless steel material (thickness 1.5mm) |
| Applicable Cleaning Fluid | Washboard water, industrial alcohol, water-based cleaning agent |
| Single Cycle Loss/Sheet | Alcohol about 120ml, water-based about 50ml |
| Depending on the size, quantity, cleaning time, and heating temperature of the cleaning product | |
| Input Power | no electricity |
| Input Air Pressure | 0.4-0.6MPa |
| Air Flow Volume | 400 L/min @ Cleaning (consumed during cleaning) |
| 600L/Min @ Drying (air drying consumption) | |
| Exhaust Velocity Requirements | 7.5m³/min, just install Φ125 exhaust pipe |
| Pipeline | single pump single pipe |
| Drying Method | Blow dry at room temperature |
| Drying Principle | compressed air drying |
| Drying Temperature | room temperature |
| Number of Nozzles | 28pcs |
| Number of Cleaning Tanks | 1pc |
| Closing Method of Cleaning Tank | The first layer: steel door seal |
| The second layer: It is sealed with an anti-corrosion sealing ring, and the imported safety valve is closed to effectively protect the safety of the operator and the product. | |
| Cleaning Ability | Solder paste, red glue, and ink can be completely cleaned |
| Wash + Dry Time | Solvent cleaning: 2-5 minutes (for reference only) |
| Air-drying: 3-5 minutes (for reference only) Air-drying with water-based cleaning agents does not work well | |
| 1-999S cleaning and drying time can be set separately | |
| Cleaning Fluid Replacement Method | Equipped with special pipeline for automatic extraction |
| Cleaning Solution Treatment Method | Equipped with special pipeline for automatic extraction |
| Viewport | NO |
| Operation Panel | Timer, push button, emergency stop, start key, pressure gauge |
| Is it used in COB stencil cleaning | YES |
| Consumables | cleaning agent, filter element |
| Maintenance items, frequency and time-consuming | 1. Filter element replacement: 1 month (replacement takes 5 minutes) |
| 2. Replacement of solvent: 3 months (replacement takes 30 minutes) | |
| 3. Sprinkler head cleaning: 6 months (cleaning takes 10 minutes) | |
| The above is for reference only, and can be selectively replaced according to the cleaning frequency of the product. |
