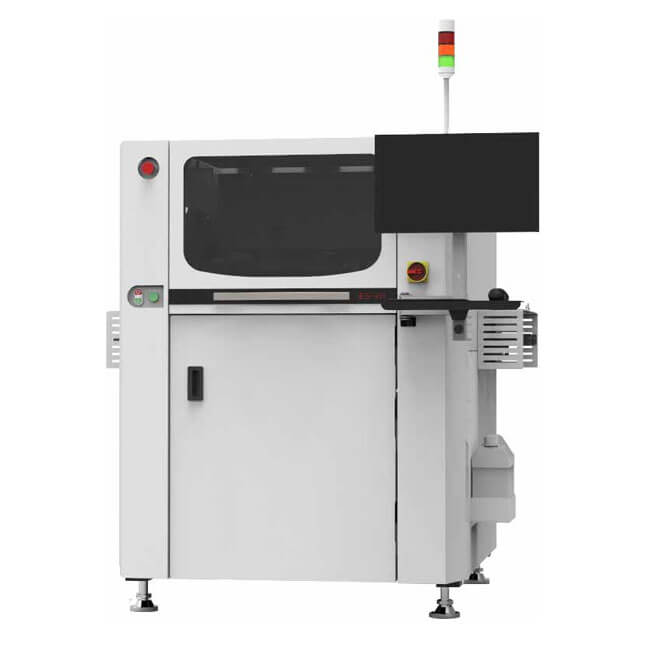

ESE ES-H1 Solder paste printer

Compact SMT High speed printer

Ultimate speed and Smart performance printer

Back-To-Back (BTB) configurable

Linear motor applied

Integrated shuttle conveyor for BTB

PCB Size

50㎜ x 50㎜ ~ 350㎜ x 250㎜
[* Optional 380㎜ x 280㎜]

PCB Thickness

0.3㎜ ~ 6㎜

Stencil Mask Size

550㎜, 584㎜(23”), 650㎜

Core Cycle time

5sec / under optimized condition

Alignment Accuracy

±10 ㎛ @ 6 sigma

Printing Repeatability

±20 ㎛ @ 6 sigma , Cmk ≥2.0 by 3rd party
[* ±18 ㎛ @ 6 sigma , Cmk ≥2.0 by ESE]
