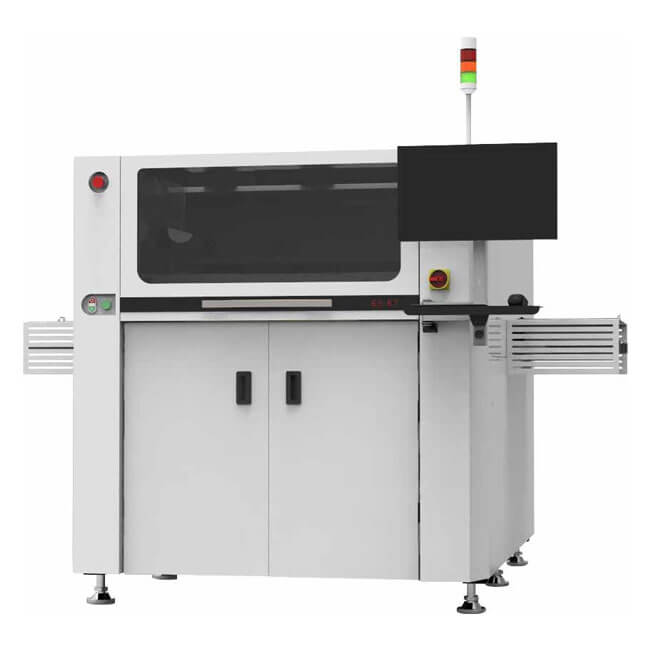

ESE ES-E7 Solder paste printer

The ESE screen printer mod. ES-E7 is handle frames from 650mm up to 900mm with a print area up to 700 x 610mm.

Like all ES series models, they are including a series of options such as: 3 step conveyor, 2D inspection, 2D Barcode on PCB, Advanced Design Wet-Dry-Vacuum Cleaning, Retractable Top clamp (Z and Y clamp) and Production History data monitor.

All components are controlled by high precision servo motors to ensure reliability and durability.

Much flexible capacity up to 700mm

12 over enhanced standard program integrated

Much solid frame & Table

3 stages conveyor system

Auto stencil loading & Positioning

PCB Size

70㎜ x 70㎜ ~ 700㎜ x 610㎜

PCB Thickness

0.3㎜ ~ 6㎜

Stencil Mask Size

650㎜, 736㎜, 800㎜, 850㎜, 900㎜

Cycle Time

12sec / under optimized condition

Alignment Accuracy

±12.5 ㎛ @ 6 sigma

Printing Repeatability

±25 ㎛ @ 6 sigma , Cpk ≥2.0
