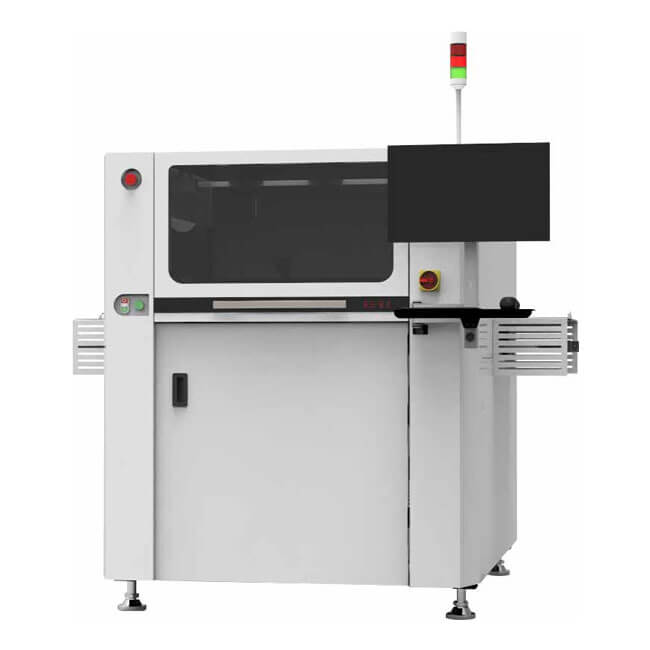

ESE ES-E2 Solder paste printer

The ESE screen printer mod. ES-E2 is handle frames from 550mm up to 736mm with a print area up to 550 x 510mm. Like all ES series models, they are including a series of options such as: 3 step conveyor, 2D inspection, 2D Barcode on PCB, Advanced Design Wet-Dry-Vacuum Cleaning, Retractable Top clamp (Z and Y clamp) and Production History data monitor.
Economic & Smart Printer

12 over enhanced standard program integrated

Much solid frame & Table

3 stages conveyor system

Auto stencil loading & Positioning

PCB Size

50㎜ x 50㎜ ~550㎜ x 510㎜

PCB Thickness

0.3㎜ ~ 6㎜

Stencil Mask Size

550㎜, 584㎜, 650㎜, 736㎜

Cycle Time

10sec / under optimized condition

Alignment Accuracy

±12.5 ㎛ @ 6 sigma

Printing Repeatability

±25 ㎛ @ 6 sigma , Cpk ≥2.0
