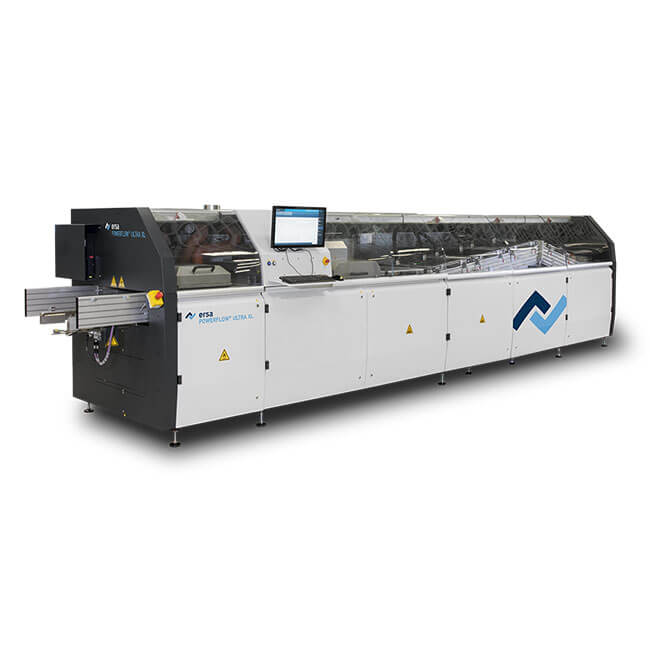

ERSA POWERFLOW ULTRA XL Wave Soldering Machine
The POWERFLOW ULTRA is the innovation in the wave soldering product portfolio of Ersa GmbH. This full-tunnel wave soldering machine meets current and future flexibility and throughput requirements. The machine is available with both frame and finger transport. Working widths from 330 to 610 mm (XXL version) are possible. It can also be used to solder server boards for 5G communication.
Soldering in sections with the Ersa POWERFLOW ULTRA wave soldering system

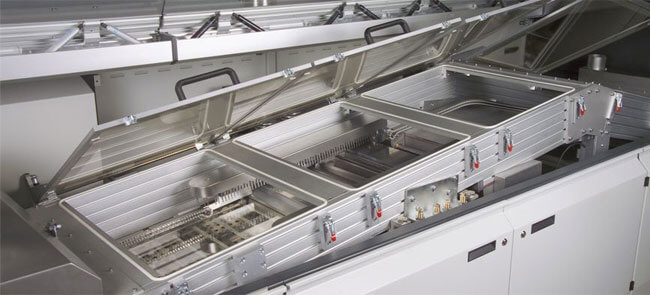

The Ersa POWERFLOW ULTRA enables a preheating distance of up to 3 m

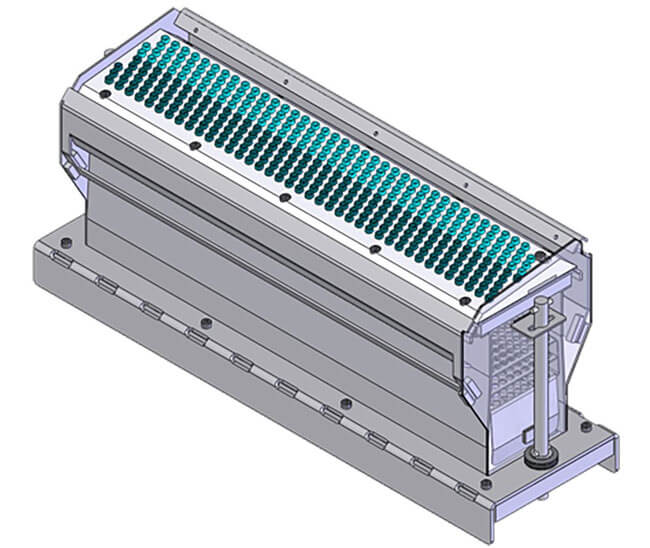

New Soldering Module for the POWERFLOW ULTRA
At the heart of the POWERFLOW ULTRA is the new soldering module with unique process control and flexibility. Its innovative drive achieves travel speeds of up to 5 mm/s. The distance between the soldering nozzle and the PCB is defined via the ERSASOFT 5 operating software. This allows assemblies to be soldered at a precise distance. The nozzle distance and solder wave height can also be adjusted as required within an assembly.

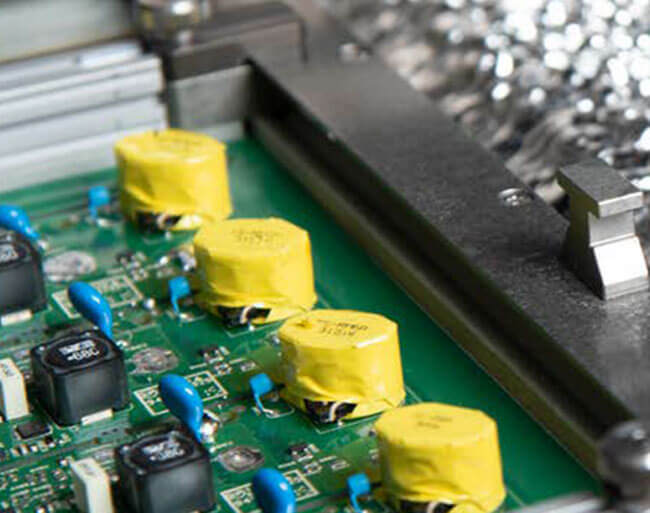

For this purpose, the PCB is divided into sectors under program control, which are stored with parameters. This means that each sector can be soldered with individual configurations, ensuring highly flexible processes. In addition, the contact time of the solder wave with the assembly can be stored in the soldering program. This offers maximum process control when moving the assembly into and out of the solder wave. In combination with the nozzle spacing, an optimum solder flow is achieved, resulting in perfect solder joints - especially for assemblies that are equipped with a high proportion of digital components in addition to power electronics.
Tech-Highlights ULTRA XL
High-end full-tunnel nitrogen wave soldering system for working widths up to 520 mm
Highest flexibility, highest throughput and highest availability
Modular, flexible and individually expandable preheating concept variably configurable in length and power
Award-winning database-based operating software ERSASOFT 5 > Ready for Industry 4.0
Finger and frame transport with different working widths
POWERFLOW: Full-tunnel wave soldering system for maximum flexibility and throughput
POWERFLOW: Patented soldering - innovative nozzle combinations for every application
POWERFLOW: Maximum flexibility - the right solution for every requirement
Technical data
POWERFLOW ULTRA XL
Dimensions
|
Length: from 5,700 mm to 7,200 mm Width: approx. 1,515 mm |
Conveyor systems
|
Finger conveyor, frame transport Max. conveyor speed 2.5 m/min |
Max. working width 520 mm
Max. printed circuit board |
|
Preheating: Heat transfer by convection, medium wave radiation and short wave radiation |
Individually configurable up to a preheat length of 3,000 mm Solder module: depending on configuration 525 to 725 kg Solder content |
