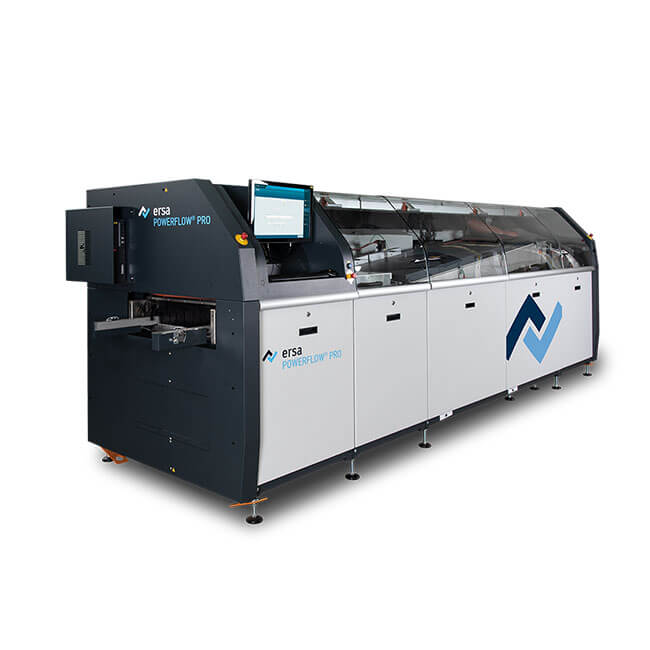

ERSA POWERFLOW PRO Wave Soldering Machine
Technology Highlights
full tunnel wave soldering system POWERFLOW PRO
Compact full tunnel wave soldering system for cost-optimized wave soldering

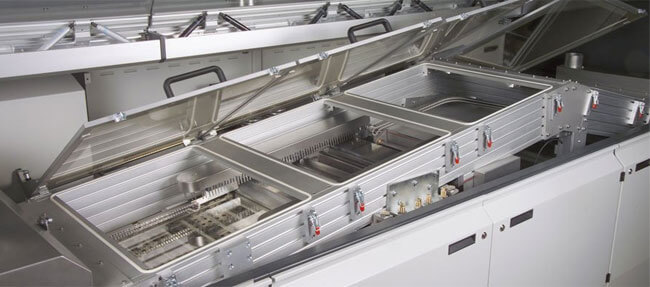

Modular, flexible and individually expandable preheating concept variably configurable in length and power
Award-winning database-based operating software ERSASOFT 5 > Ready for Industry 4.0

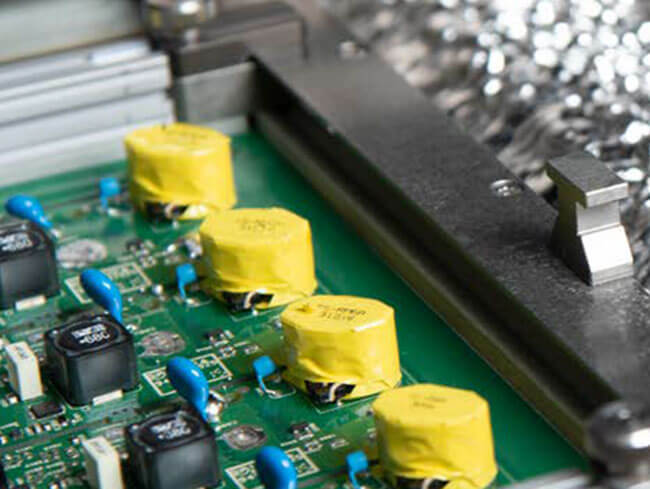

Finger and frame transport with different working widthsn

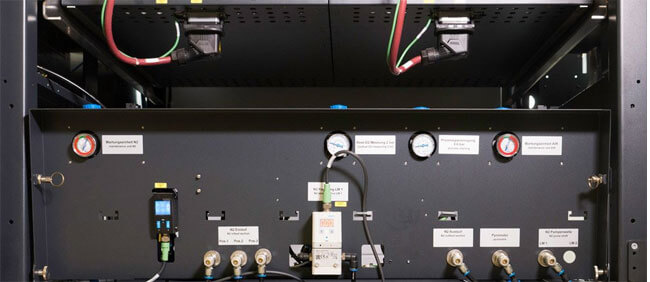

POWERFLOW PRO: Intelligent nitrogen control guarantees optimized N2 consumption and cost efficiency
POWERFLOW PRO: Maximum flexibility - the right solution for every requirement
POWERFLOW PRO: Efficient, uniform, reproducible
Technical data full tunnel
wave soldering system POWERFLOW PRO
Dimensions
|
Length: 4,450 mm Width: approx. 1,400 mm |
Height: approx. 1,600 mm |
Conveyor systems
|
Finger conveyor, pallet conveyor Max. conveyor speed 3 m/min |
Max. working width 458 mm Max. height of components, top of board: up to 100 mm |
Preheating / Solder module
|

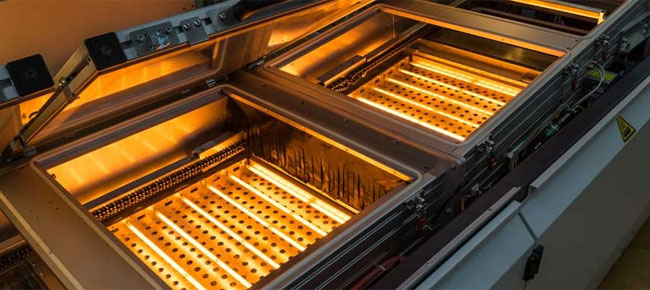

Preheating: Heat transfer by convection, medium wave radiation and short wave radiation |
Individually configurable up to a preheat length of 2,000 mm Solder module: Depending on configuration 525 to 725 kg Solder content |
