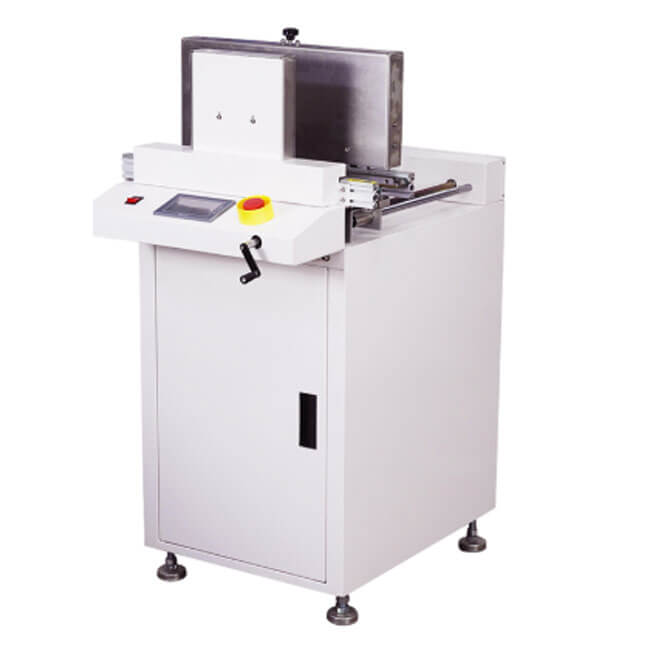

Automatic SMT PCB Stacker Destacker

PCB Loading Time: About 6S
PCB capacity: 200pcs
Power Supply and Electric Load: 100-230V, Single Phase, Maximum 150V.A.
Lead time: 15 days

BASIC INFO

Automatic SMT PCB Stacker Destacker

PCB stacking trigger is one of the automation equipment, its main function is to separate the PCB processing need to drill and do not need to drill, and then stack it together, sent to the next process.
There are generally two forms: one is to use a machine to complete the stacking; The other is to use manual to complete the stacking. With the popularity of PCB and the acceleration of the replacement of electronic products, the demand for PCB laminated trigger is increasing, and its application is more and more extensive.
At present, there are two main forms of PCB laminated trigger on the market: one is to use the machine to complete the laminated plate, and the other is to use the manual to complete the laminated plate.
Use a machine to complete the stacking: separate the holes on the PCB board from the places that do not need to be drilled, and then stack them together and send them to the next process;
Both can achieve a certain effect, but there are the following disadvantages:
2. High labor cost and low efficiency;
3. Low efficiency requires more people to operate, resulting in limited production capacity;
4. The hole of the PCB board cannot be completely separated from the place that does not need to be drilled.

● Aluminum alloy guide rail, stable, durable and beautiful.
● Microcomputer PLC control system, stable and reliable work.
● Touch screen display operation, with automatic fault diagnosis function, man-machine dialogue is convenient.
● A number of sound, light and touch screen prompt alarm function.
● The height of the wall can be adjusted according to the PCB thickness.
● Humanized design to ensure that the PCB board is not broken, improve the output capacity
● With bare board automatic board and PASS dual functions.
● Using automatic board dropping mode, effectively shorten the board time.
● The electrical parts of the equipment are of well-known brands.
● SMEMA signal interface is standard.
● Smaller machine footprint.
