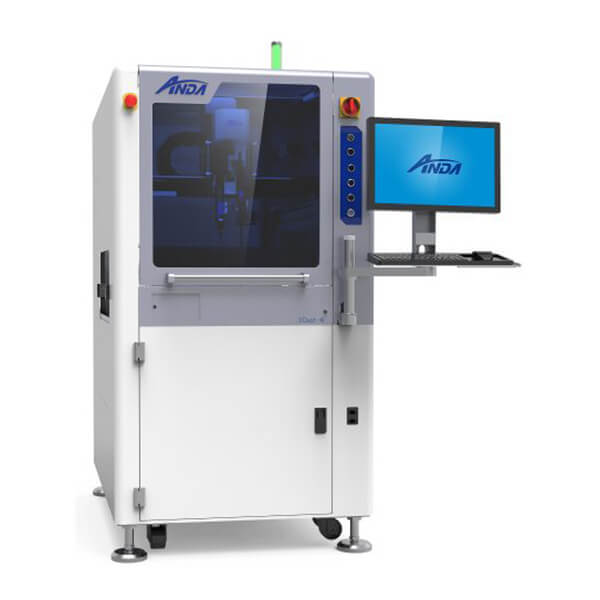

Anda iCoat-6 Conformal Coating Machines

XYZ Repeatability: ± 0.02 mm (20 µm)
Work Area: X 360 × Y 450 × Z 100 mm
Maximum Components Height: ± 90 mm (± 3.54") from PCB
Conveyor Speed (XY): 2 – 13 m/min (6.5 – 43 ft/min)

BASIC INFO

Anda iCoat-6 Conformal Coating Machines

Thin Film Conformal Coating Machine

iCoat-6 is a XYZ gantry system designed specifically for thin film coating applications. This specialized coating system produces exceptional edge definition results without the overspray associated with atomized spray valves. Automatic recirculating closed loop fluid heating provides stable fluid pressure and constant temperature control to always ensure set fluid viscosity for maintaining the coating process, even during machine suspension.

- Automatic coating detection mounted over conveyor exit or x-axis for verifying coating results

- Laser width measurement control system for monitoring and verifying thin film spray width coating parameters

- 90-degree rotation of the thin film spray direction using the IC-100L thin film valve

- Standard valve configuration: Dual valves fixed width

Features

Standard Features

Running accuracy ± 0.02 mm (20 µm)

Gantry axes: X,Y,Z

Gantry: servo motors, ball screw drive

Steel structure smooth motion platform

Stainless steel interior

Hatch door with observation window

Adjustable height pivoting computer arm

Dual valve coating system

Closed loop material heating circulation

Thin film pump feeding system

Material filtration

Fluorescent inspection lighting (UV black light)

Auto dipping and purging waste collection

Programmable valve cleaning

Board presence sensors

Board clamping during coating

Unlimited coating program storage

USB communication ports

Light tower beacon

Optional Features

90-degree rotation of the thin film spray direction using IC-100L thin film valve

Laser thin film width measurement control system

Valve heating

CCD camera for vision programming and fiducial recognition w/ UV black light

Material tank AMSE certified: 1 / 3 / 5 / 10 gal

Material level detection (low fluid level scale)

Low pressure fluid automatic adjustment system

Dispense needle calibration sensor

Inline material metering

Barcode, 2D, or QR code scanner

Non-contact laser height sensor

Heavy duty conveyor 10 kg (22 lbs) max weight

Dual lane conveyor

Multi-stage coating conveyor

Pre-queue board station

Return conveyor (underneath)

MES integration

iCoat-6 Specifications

Motion System
Gantry	Servo motors, ball screw drive
Gantry Axes	X,Y,Z
X-Travel	360 mm (Standard)
Y-Travel	450 mm (Standard)
Z-Travel	100 mm
XY Maximum Speed	800 mm/sec
XY Acceleration	0.8 g with smooth control
XYZ Repeatability	± 0.02 mm (20 µm) (± 0.0007")
Board Handling
Work Area	X 360 × Y 450 × Z 100 mm
Work Area	(X 14.17" × Y 17.71" × Z 3.93")
Maximum Components Height	± 90 mm (± 3.54") from PCB
PCB Edge Clearance	≥ 5 mm (≥ 0.19")
Minimum Conveyor Width	50 mm (1.95")
Max Standard Conveyor Width	450 mm (18.11")
Process Flow (bidirectional)	L to R (Standard), R to L (Optional)
Chain Conveyor Weight Limit	4 kg (9 lbs) [Standard], 10 kg (22 lbs) [Optional]
Conveyor Motor Power	DC 24 V 69 W × 2
Conveyor Speed (XY)	2 – 13 m/min (6.5 – 43 ft/min)
Conveyor Height	900 ± 20 mm
Conveyor Height	(35.43" ± 0.79")
Conveyor Width Adjustment	Automatic (motorized)
Operation Configuration
Valve Configuration	Dual valves in a row (fixed width)
Dispense Valve Widths	0.2 – 2 mm (0.0078" – 0.078")
Spray Valve Widths	1.6 – 30 mm (0.06" – 1.2")
Maximum Speed	800 mm/s
Repeatability	± 0.02 mm (20 µm) (± 0.0007")
Facility
Footprint	L 900 x W 1300 x H 1675 mm
Footprint	(L 35.43" x W 51.18" x H 65.94")
Weight	560 kg (1235 lbs)
Air supply (dry, unlubricated air)	0.4 MPa (60 psi, 4 Bar)
Exhaust Requirement	15 m³/min (500 CFM)
Power	AC 220 V 50/60 Hz
Rated Power	2.4 kW
Standards Compliance	SMEMA, IPC-CFX, CE
Interface
Computer	PC + KMM
Software	Anda iCoat UI
OS	Windows 10
Programming	File transfer, Onboard keyboard/mouse
