Anda iCoat-5 Conformal Coating Machines

XYZ Repeatability: ± 0.02 mm (20 µm)
Standard Work Area: X 450 × Y 450 × Z 100 mm
Maximum Components Height: ± 90 mm (± 3.54") from PCB
Minimum Conveyor Width: 50 mm

BASIC INFO

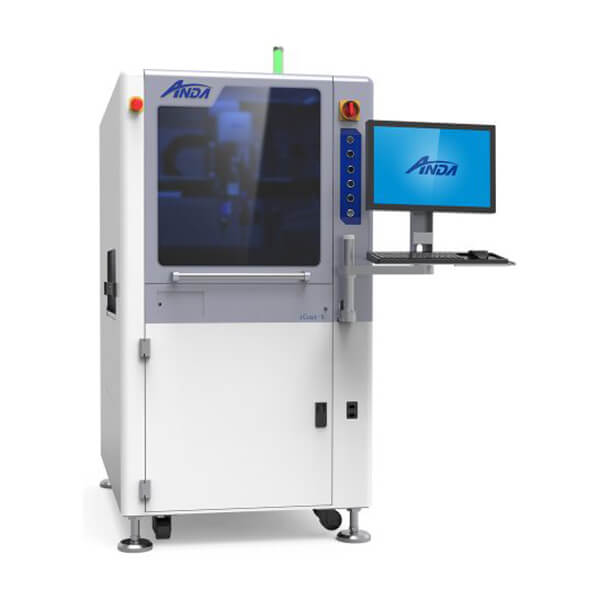

Anda iCoat-5 Conformal Coating Machines

Selective Conformal Coating Machine

ANDA’s iCoat-5 is a high-speed precision selective conformal coating machine that’s designed to deliver the highest quality in accuracy and precision for automated batch or in-line conformal coating processes. Ideal for automating high volume/throughput or high mix low volume (HMLV) coating processes. Suitable for panelized or palletized printed circuit board assemblies (PCBAs) and large area coating applications.

- Running accuracy of ± 0.02 mm (20 µm) (± 0.0007ʺ)

- Five axes of movement (X,Y,Z,U rotation) and 35° tilt

- Single head turret design supporting up to three selective conformal coating valves that can be arranged in a variety of different nozzle configurations

Features

Standard Features

Running accuracy ± 0.02 mm (20 µm)

Gantry axes: (X,Y,Z,U rotation) + 35° tilt

Gantry: servo motors, ball screw drive

Steel structure smooth motion platform

Stainless steel interior

Hatch door with observation window

Adjustable height pivoting computer arm

Fluorescent inspection lighting (UV black light)

Auto dipping and purging waste collection

Programmable valve cleaning

Board presence sensors

Board clamping during coating

Unlimited program storage

USB communication ports

Light Tower Beacon

Optional Features

Valve and / or fluid heating

Dispense needle calibration sensor

Inline material metering

Laser film fan spray width control monitoring

Material changeover (manual)

Material level detection (low fluid level scale)

Material tank AMSE certified: 1 / 3 / 5 / 10 gal

Barcode program selection, 1D or 2D

CCD vision programming camera w/ auto coating UV light spot inspection

Fiducial find camera

Non-contact laser height sensor

Heavy duty conveyor 10 kg (22 lbs) max weight

Dual lane conveyor

Multi-stage or multi-zone conveyor

Pre-queue board station

Return conveyor (underneath)

iCoat-5 Specifications

Motion System
Gantry	Servo motors, ball screw drive
Gantry Axes	(X,Y,Z,U rotation) + 35° tilt
X-Travel	450 mm (Standard), 580 mm (Optional)
Y-Travel	450 mm (Standard), 580 mm (Optional)
Z-Travel	100 mm
XY Maximum Speed	800 mm/sec
XY Acceleration	0.8 g with smooth control
XYZ Repeatability	± 0.02 mm (20 µm)
Board Handling
Standard Work Area	X 450 × Y 450 × Z 100 mm
Standard Work Area	(X 17.71" × Y 17.71" × Z 3.93")
Large Work Area (Optional)	X 580 × Y 580 × Z 100 mm
Large Work Area (Optional)	(X 22.83" × Y 22.83" × Z 3.93")
Maximum Components Height	± 90 mm (± 3.54") from PCB
PCB Edge Clearance	≥ 5 mm (≥ 0.19")
Minimum Conveyor Width	50 mm (1.95")
Max Standard Conveyor Width	450 mm (18.11")
Max Large Conveyor Width (Optional)	580 mm (22.83")
Process Flow (bidirectional)	L to R (Standard), R to L (Optional)
Chain Conveyor Weight Limit	4 kg (9 lbs) [Standard], 10 kg (22 lbs) [Optional]
Conveyor Motor Power	DC 24 V 69 W × 2
Conveyor Speed (XY)	0.5 – 5 m/min (1.6 – 16.4 ft/min)
Conveyor Height	900 ± 20 mm
Conveyor Height	(35.43" ± 0.79")
Conveyor Width Adjustment	Automatic (motorized)
Operation Configuration
Valve Configuration (Standard)	Dual valves w/ tilt 35°
Valve Configurations (Optional)	Triple valves, Quad valves (front two valves w/ tilt 35° & rear valve(s) fixed)
Dispense Valve Widths	0.2 – 2 mm (0.0078" – 0.078")
Spray Valve Widths	1.6 – 30 mm (0.06" – 1.2")
Maximum Speed	800 mm/s
Repeatability	± 0.02 mm (20 µm) (± 0.0007")
Rotation	360° (± 180°)
Tilt	35°
Facility
Footprint	L 900 x W 1300 x H 1675 mm
Footprint	(L 35.43" x W 51.18" x H 65.94")
Weight	570 kg (1257 lbs)
Air supply (dry, unlubricated air)	0.4 MPa (60 psi, 4 Bar)
Exhaust Requirement	15 m³/min (500 CFM)
Power	AC 220 V 50/60 Hz
Rated Power	2.4 kW
Standards Compliance	SMEMA, IPC-CFX, CE
Interface
Computer	PC + KMM
Software	Anda iCoat UI
OS	Windows 10
Programming	File transfer, Onboard keyboard/mouse
