  •  1.2M SMT Semi-automatic Printing Machine

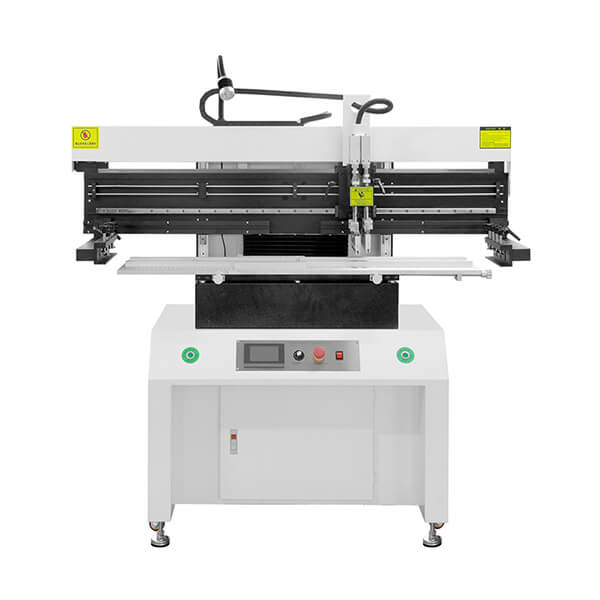

1.2M SMT Semi-automatic Printing Machine

1.2M SMT Semi-automatic Printing Machine

  • Printing Range :1200*320mm
  • Workbench :1250*320mm
  • Dimension :1680*780*1650mm
  • Moving Speed :0-2200mm/min
BASIC INFO

1.2M SMT Semi-automatic Printing Machine

1.Microcomputer control, touch screen display, menu operation interface;

2. Floating blade.(similar to the automatic MPM printing machine, the scraper can float up and down freely and automatically adjust the level with the stencil);
3. The pressure of the scraper can be adjusted (the pressure of the scraper on the steel mesh can be adjusted according to the length of the scraper of different types);
4. Equipped with frequency converter speed control system, the blade running speed is stable;
5. The work operation is operated by two-hand button switch, which is safe and reliable;
6. The touch screen menu can independently set the pause time of the steel mesh as a whole;
7. The positioning and fixing methods of the PCB board include reference hole positioning, reference edge positioning and reference hole reference edge simultaneous positioning, template positioning and other different precise positioning forms;
8.The time display function in the touch screen, the automatic counting function of printing times, and the screen protection function;
9. It has adjustable blade speed and emergency stop safety function;
10. Printing mode: single, double, secondary (optional menu setting);
11. Printing working status: automatic / semi-automatic / jog three printing status (menu setting optional);

Model 1200
Direction of movement Move left and right
Workbench 1250*320mm
Power Supply Single phase 220V
Dimension 1680*780*1650mm
Air Supply 0.5-0.8mpa
Starting Power 0.2KW
Weight About 250KG
Steel mesh clamping device Manual locking
Printing Range 1200*320mm
Moving Motor Three-phase motor 60W
Moving Speed 0-2200mm/min
Rail Taiwan silver linear guide
PLC Control Siemens
Touch Screen 4.3# display control screen
Main Cylinder SC80*150
Cutter Head Cylinder CDU25-50
Frequency Converter ENC
Floodlight LED light

Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591  Email: sales@efsmt.com

FAQ:

Q: What we can do for you?

A: One-stop SMT Solution Supplier; Reliable SMT Partner.

Q.What is your MOQ requirement for the machine?

A. 1 set moq requirement for the machine.

Q. This is the first i use this kind of machine, is it easy to operate?

A: Provide free trainingThere are also English manuals or instructional videos to show you how to use the machine.

Q: If the machine has any problem after we receive it, how can we do?

A: Our engineer will help to solve it first,  and free parts send to you in machine warranty period.

Q: Do you provide any warranty for the machine?

A: Yes 1 year warranty will be provided for the machine.

Q: What is your payment terms?

A: 30% deposit in advance and 70% balance before shipment.
